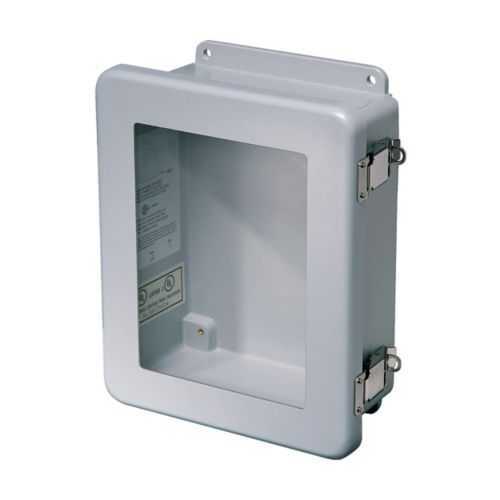

Eaton 864-4XFCHQRCW JIC panel enclosure - NEMA 4X
Part Number: 864-4XFCHQRCW
Quick Summary
The JIC panel enclosure from Eaton protects control hardware in industrial environments, enabling clean, secure installations. Many panels struggle with corrosion, moisture ingress, and difficult access, which leads to downtime and maintenance costs. This unit carries UL 50, NEMA 4X, and CSA C22.2 certifications, ensuring dependable performance in harsh conditions while meeting regulatory requirements. Its fiberglass construction offers excellent corrosion resistance, and the hinged cover with a seamless gasket keeps the interior dry and dust-free. Wall mounting with external feet together with a padlock provision supports flexible installation, while a compact footprint helps maximize cabinet density. In short, it delivers durability, security, and fast serviceability for modern control panels.
Product Information
Extended Description
864-4XFCHQRCW Eaton: Eaton B-Line series JIC panel enclosure, 9.62" height, 4.74" length, 7.50" width, NEMA 4X, Hinged cover, 4XFCHQRCW enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XFCHQRCW
UPC
782051524048
Product Length/Depth
4.74 in
Product Height
9.62 in
Product Width
7.5 in
Product Weight
3.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRCW enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass construction provides inherent corrosion resistance and a light, durable enclosure. Business Impact: Reduces maintenance costs and extends service life in harsh environments. Application: Chemical plants, outdoor installations, and coastal facilities where metal enclosures may corrode. Feature: Compact 9.62 in H × 7.5 in W × 4.74 in D footprint with a 3.5 lb weight. Business Impact: Maximizes panel density and eases installation in space-constrained areas. Application: Small to mid-size control panels and junction boxes in automation cells. Feature: NEMA 4X with UL 50 and CSA C22.2 certifications. Business Impact: Ensures ingress protection and regulatory compliance, lowering risk of nonconformance. Application: Washdown zones, dusty factories, and outdoor installations. Feature: Hinged cover with seamless gasket and stainless pull drawn catch. Business Impact: Fast, tool-free access with reliable seal, reducing downtime during maintenance. Application: Routine inspections and panel servicing in critical processes. Feature: External mounting feet and padlock provisions. Business Impact: Flexible mounting options and secure access control, improving installation speed and site security. Application: Wall-mounted installations in production lines and control rooms.
Get a Quick Quote for a Eaton 864-4XFCHQRCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XFCHQRCW?
Enquire Now
FAQs
This enclosure is designed for wall mounting using external mounting feet, which allows straightforward installation in tight spaces. Ensure a clean, flat mounting surface and align the feet with appropriate fasteners. The hinged door and gasket maintain seal integrity during service, while the padlock provision enables secure access control. Layout plans should consider clearances for cable entry and future maintenance.
The 864-4XFCHQRCW carries UL 50, NEMA 4X, and CSA C22.2 certifications. UL 50 verifies enclosure suitability for electrical equipment, NEMA 4X indicates weatherproof and corrosion-resistant performance, and CSA C22.2 supports safety compliance in North American markets. Together, these certifications help ensure reliable operation in washdown, dusty, and outdoor industrial settings.
The enclosure offers a compact internal footprint with overall dimensions of 9.62 in H, 7.5 in W, and 4.74 in D, suitable for medium single-door configurations. It supports wall mounting and external feet, enabling flexible panel layouts. The hinged cover and gasket provide easy access without compromising seal integrity, making it compatible with standard control components and modestly sized power distribution devices.
Yes. Its NEMA 4X rating, UL 50 recognition, and fiberglass construction are explicitly suited for harsh environments, including outdoor installations and washdown conditions. The seamless gasket and corrosion-resistant body help maintain enclosure integrity against moisture, dust, and chemical exposure, reducing the risk of equipment failure and downtime in demanding facilities.
By choosing a fiberglass NEMA 4X enclosure with a sealed hinged cover, facilities reduce corrosion-related replacements and maintenance downtime. The padlock-ready design improves security without additional hardware, while external feet simplify installation. Over a typical lifecycle, these features translate to lower total cost of ownership and faster, safer servicing of critical automation hardware.
