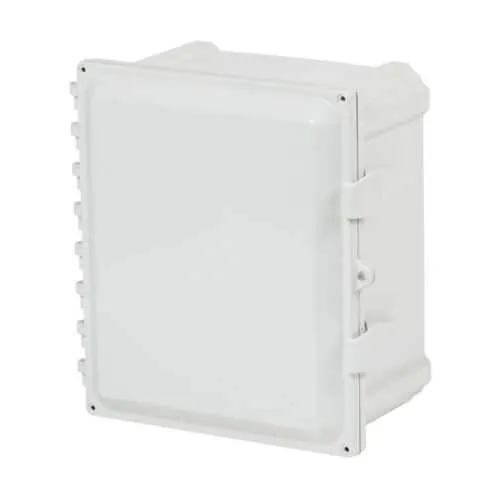

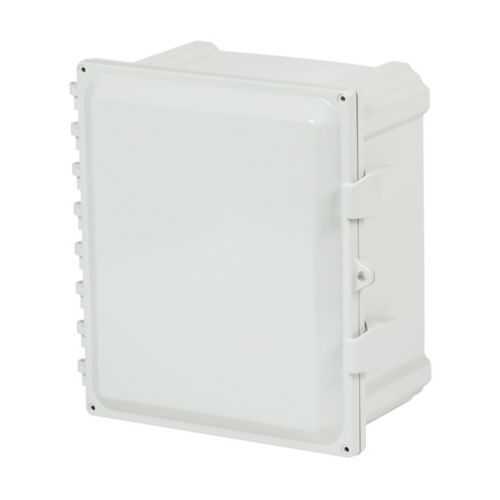

Eaton 864-4XPCQR JIC Panel Enclosure - NEMA 4X
Part Number: 864-4XPCQR
Quick Summary
Eaton 864-4XPCQR JIC panel enclosure protects electrical components in wall-mounted control panels. Installers often struggle with weatherproof, secure housings that fit tight spaces; this unit delivers a compact footprint without compromising protection. Key protections include a NEMA 4X rating for corrosion resistance in washdown environments, a polycarbonate body for impact strength, and a hinged cover for quick access. Designed for manufacturing and process environments, it supports reliable service in space-constrained panels, while maintaining security with a padlock provision and optional external mounting feet. Compatible with Eaton B-Line series and JIC panel applications, it helps reduce installation time, inventory complexity, and maintenance costs.
Product Information
Extended Description
864-4XPCQR Eaton: Eaton B-Line series JIC panel enclosure, 9.4" height, 5.9" length, 8.7" width, NEMA 4X, Hinged cover, 4XPCQR enclosure, Wall mount, Medium single door, Optional external mounting feet, Polycarbonate
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XPCQR
UPC
799038775225
Product Length/Depth
5.9 in
Product Height
9.4 in
Product Width
8.7 in
Product Weight
3.2 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Polycarbonate
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XPCQR enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Polycarbonate pull drawn catch
NEMA Rating
4X
Country of origin
US
The enclosure uses a polycarbonate body with a gray, unfinished finish, delivering a durable yet lightweight housing that eases handling and reduces shipping weight while resisting impact and chemical exposure. This translates to lower labor costs during installation and fewer field replacements in demanding environments. The NEMA 4X rating provides robust protection against corrosion, wind-driven rain, and washdown conditions, a critical factor for outdoor installations and process facilities where uptime and longevity matter. Hinged access and a padlock provision combine security with quick maintenance, enabling authorized personnel to service controls without compromising panel integrity or safety. Wall mounting with optional external feet offers installation flexibility in tight or uneven spaces, simplifying retrofit projects and multi-panel layouts. The medium single-door design, exterior feet option, and polycarbonate construction support scalable, modular control architectures while maintaining a compact footprint and consistent aesthetics across enclosures.
Get a Quick Quote for a Eaton 864-4XPCQR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XPCQR?
Enquire Now
FAQs
Begin by selecting a clean, level mounting surface and using the optional external mounting feet if leveling is required. Mark screw locations corresponding to the enclosure's mounting holes, drill pilot holes, and fasten securely with appropriate fasteners for the wall material. Attach the enclosure, then route wires and install internal components before closing and locking the hinged cover. This approach minimizes field adjustments and ensures a secure, compliant installation.
The enclosure features a NEMA 4X rating, indicating protection against corrosion, wind-driven rain, and hose-directed water. Constructed from polycarbonate, it offers impact resistance while remaining light enough for easy handling. These attributes enable reliable operation in manufacturing, food & beverage, and water treatment facilities where exposure to moisture or chemicals is common.
Yes, thanks to the NEMA 4X rating, which suits outdoor and washdown environments, and the rugged polycarbonate construction that withstands daily impacts. For high-traffic zones, the hinged cover and padlock provisions add security and quick access, reducing downtime during routine maintenance while deterring tampering.
The product carries a NEMA 4X rating, providing environmental protection for corrosive and washdown environments. The data specifies US origin, and the enclosure is designed to integrate seamlessly with B-Line series installations. While CE or other regional markings aren't listed in the provided data, users should verify regional regulatory requirements for their specific application and facility if those certifications are mandatory.
The 864-4XPCQR combines lightweight polycarbonate with rugged protection, reducing shipping, handling, and installation time. The hinged door, padlock option, and optional external feet enable secure, scalable installations with less maintenance and fewer replacements in harsh environments, translating to lower total cost of ownership over the panel’s life cycle.
