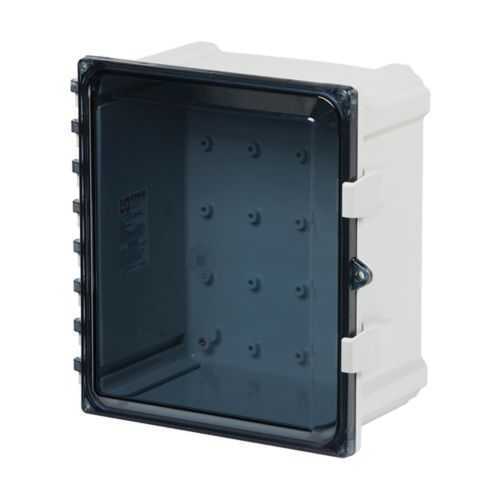

Eaton 864-4XPCQRCC JIC panel enclosure - NEMA 4X
Part Number: 864-4XPCQRCC
Quick Summary
Eaton 864-4XPCQRCC JIC panel enclosure protects control wiring in compact switchgear applications. Engineers often struggle with sealing, security, and space when upgrading panels in harsh environments. It carries a NEMA 4X rating for corrosion resistance and washdown suitability, and its US origin supports reliable supply and traceability. This wall-mount, medium single-door enclosure features a hinged cover, padlock provisions, and optional external mounting feet, enabling quick, secure installations. Made from polycarbonate and finished in gray, it blends lightweight handling with robust protection. For facilities prioritizing lean maintenance, predictable lead times, and consistent performance, the Eaton B-Line JIC enclosure is a smart fit for industrial automation and electrical infrastructure needs.
Product Information
Extended Description
864-4XPCQRCC Eaton: Eaton B-Line series JIC panel enclosure, 9.4" height, 5.9" length, 8.7" width, NEMA 4X, Hinged cover, 4XPCQRCC enclosure, Wall mount, Medium single door, Optional external mounting feet, Polycarbonate
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XPCQRCC
UPC
799038775348
Product Length/Depth
5.9 in
Product Height
9.4 in
Product Width
8.7 in
Product Weight
3.2 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Polycarbonate
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XPCQRCC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Polycarbonate pull drawn catch
NEMA Rating
4X
Country of origin
US
The 864-4XPCQRCC provides a NEMA 4X rating, delivering corrosion resistance and washdown capability essential for harsh industrial environments. This protection translates into longer service life and lower maintenance costs for control panels in manufacturing lines and process plants. With a compact footprint and wall-mount versatility, it scales across line configurations while preserving valuable floor space. Polycarbonate construction delivers high impact resistance without the heft of metal enclosures, enabling safer handling and easier installation in tight spaces on crowded factory floors. The material maintains stiffness across typical industrial temperature ranges, reducing deformation and seal wear and contributing to longer service life in automated lines. Weighing 3.2 lb, it lowers shipping costs, speeds field relocations, and minimizes handling risks during multi-site deployments. A hinged cover with padlock provisions provides secure, tool-free access for maintenance technicians while preserving safety during live-energized work. This design supports compliant service practices, reduces unauthorized access to internal terminations, and simplifies routine inspections. Wall mounting with optional external feet offers installation flexibility on uneven walls or retrofit projects, broadening compatibility with existing facilities. The feet aid precise door-swing alignment, improve vibration resistance, and simplify on-site adjustments during commissioning. Designed to align with Eaton B-Line series enclosures, it delivers a consistent, scalable infrastructure for control cabinets across plants. Dimensions of 9.4 in H, 8.7 in W, and 5.9 in D preserve valuable panel space while accommodating common control components. Weighing 3.2 lb, it reduces freight, handling risk, and stocking requirements across procurement pipelines. The gray, unfinished polycarbonate finish accepts labeling and branding while delivering durable, maintenance-friendly protection for critical electronics.
Get a Quick Quote for a Eaton 864-4XPCQRCC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XPCQRCC?
Enquire Now
FAQs
The enclosure is designed for wall mounting with optional external feet. Secure it to a flat surface using standard fasteners, add the feet if needed for uneven walls, and ensure enough clearance for hinge operation. Padlock provisions provide secure access during maintenance.
The 864-4XPCQRCC is a JIC panel enclosure made of polycarbonate with a gray unfinished finish. Its dimensions are 9.4 in high, 8.7 in wide, and 5.9 in deep, and it weighs 3.2 lb. It carries a NEMA 4X rating for corrosion resistance.
Yes. The NEMA 4X rating indicates resistance to corrosion and washdown conditions, making it appropriate for environments such as food processing, beverage lines, and other manufacturing settings where routine cleaning is required.
The enclosure is US-origin and carries a NEMA 4X rating. No additional certifications are listed in the provided data, so plan around NEMA 4X protection and domestic sourcing for regulatory and procurement considerations.
The lightweight polycarbonate construction reduces handling effort, while the hinged door and padlock provisions improve security. Its compact size and optional mounting feet enable flexible retrofits, minimizing downtime and supporting durable, cost-effective control-panel housing across industrial automation applications.
