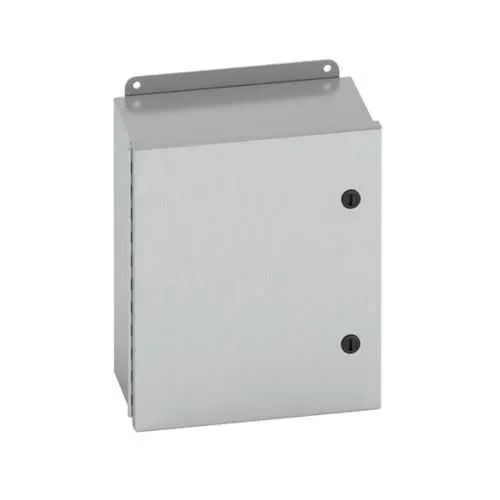

Eaton 864-4XSQT Enclosure - NEMA 4X
Part Number: 864-4XSQT
Quick Summary
Eaton 864-4XSQT enclosure is a JIC panel enclosure engineered for rugged industrial control applications. It helps minimize downtime by combining corrosion-resistant materials with a reliable gasket seal, ideal for harsh environments. This unit carries UL 50, CSA C22.2, and NEMA 4X certifications to support compliant installations while delivering durable protection. Its wall-mount design, external mounting feet, and hinged cover provide straightforward installation and serviceability, making it a practical choice for compact control panels in automation and process environments.
Product Information
Extended Description
864-4XSQT Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 6" width, NEMA 4X, Hinged cover, 4XSQT enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XSQT
UPC
782051882063
Product Length/Depth
4 in
Product Height
8 in
Product Width
6 in
Product Weight
4.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSQT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4X
Country of origin
US
Feature → Business Impact → Application: 864-4XSQT uses 304 stainless steel with a 16 gauge wall, delivering superior corrosion resistance and long-term durability in washdown and corrosive environments; this reduces maintenance costs and extends panel life for food processing, water treatment, and chemical processing facilities. Application-wise, the compact 8 x 6 x 4 in footprint fits tight control-panel spaces, enabling more efficient layouts and easier retrofits in existing assemblies. Feature → Business Impact → Application: Continuous piano hinge and 1/4 turn latches provide secure enclosure integrity while enabling fast, tool-free access for routine inspections and troubleshooting; this improves mean time to repair (MTTR) and increases overall equipment effectiveness in manufacturing lines. Feature → Business Impact → Application: External mounting feet and wall-mount capability simplify installation on existing walls or frames, reducing mounting time and alignment errors; ideal for tight spaces in industrial automation panels and equipment rooms. Feature → Business Impact → Application: Seamless poured-in-place gasket design ensures tight seals against dust, water, and other ingress, supporting reliability in harsh environments and helping facilities meet environmental and safety standards in compliance-driven projects.
Get a Quick Quote for a Eaton 864-4XSQT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XSQT?
Enquire Now
FAQs
Plan for wall mounting with external feet to ensure robust support and alignment. The unit's hinged cover and 1/4 turn latches aid quick service, while the 304 stainless steel construction and gasket seal protect internal components from dust, moisture, and corrosion. Verify enclosure location complies with clearances for maintenance and wiring access.
Specifications include 8 in height, 6 in width, 4 in depth, 16 gauge wall thickness, 304 stainless steel material, and NEMA 4X rating. It features a hinged cover, external mounting feet, and a small single-door design suitable for wall mounting. Certifications include UL 50 and CSA C22.2, supporting compliant installations.
Yes. The 304 stainless steel construction combined with NEMA 4X protection makes it well-suited for washdown and corrosive environments frequently encountered in food processing, beverage, and healthcare-adjacent automation areas. Its gasketed, hinged design helps maintain enclosure integrity during frequent cleaning cycles.
The 864-4XSQT uses 304 stainless steel with a brushed finish, offering superior corrosion resistance versus many painted or plated-alloy enclosures. Its seamless gasket and durable hardware reduce maintenance needs, while the external feet and wall-mount options streamline installation and service access, supporting lower lifecycle costs in demanding environments.
Confirm UL 50 and CSA C22.2 compliance for electrical enclosures, along with the NEMA 4X rating for water and corrosion resistance. These certifications validate suitability for harsh environments and help ensure code-compliant panel installations in industrial facilities.
