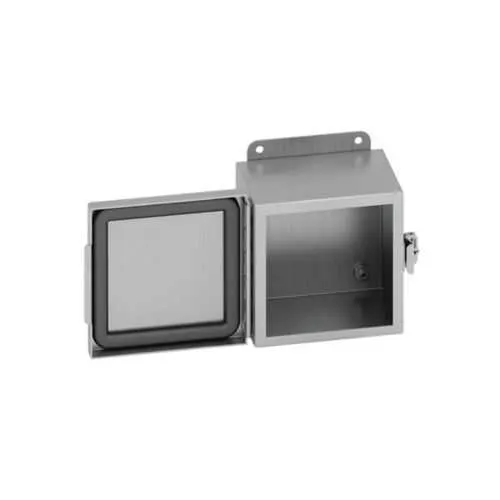

Eaton 864-4XSS6CHC JIC Panel Enclosure - NEMA 4X
Part Number: 864-4XSS6CHC
Quick Summary
Eaton 864-4XSS6CHC JIC panel enclosure is a rugged, stainless steel housing designed to protect electrical panels in harsh environments. This 8 in high, 6 in wide, 4 in deep enclosure provides a compact, wall-mounted solution for control circuitry that demands reliability and corrosion resistance. A common challenge for engineers is maintaining enclosure integrity amid moisture, dust, and frequent cleaning; the 316 stainless steel construction with a seamless poured-in-place gasket helps prevent ingress and reduces maintenance. UL 50, CSA C22.2, and a NEMA 4X rating support compliant installations in demanding facilities. The combination of durability and ease of access translates to lower downtime and longer service life for critical automation equipment, while meeting stringent industrial standards and supporting ongoing operational efficiency.
Product Information
Extended Description
864-4XSS6CHC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 6" width, NEMA 4X, Hinged cover, 4XSS6CHC enclosure, Wall mount, Small single door, External mounting feet, 316 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XSS6CHC
UPC
782051094794
Product Length/Depth
4 in
Product Height
8 in
Product Width
6 in
Product Weight
4.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSS6CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction; Business Impact: Exceptional corrosion resistance and long service life in washdown and chemical environments; Application: Food and beverage processing, chemical plants, outdoor installations. Feature: 16 gauge wall thickness; Business Impact: Robust mechanical protection for internal components and wiring; Application: Heavy-duty control panels with frequent access needs. Feature: Seamless poured-in-place gasket; Business Impact: Superior ingress protection reducing maintenance and seal replacement; Application: Areas with high humidity or exposure to cleaning agents. Feature: Hinged cover with cont. piano hinge; Business Impact: Quick, repeated access with durable hardware, minimizing maintenance time; Application: Routine maintenance and inspections across multiple shifts. Feature: External mounting feet; Business Impact: Flexible, secure wall mounting in tight or retrofit spaces; Application: Wall-mounted control housings in compact facilities. Feature: Finish and aesthetics (#4 brushed); Business Impact: Cleanable surface that resists staining and supports compliant branding; Application: Environments where appearance and hygiene matter. Feature: NEMA 4X rated enclosure; Business Impact: Regulatory-aligned protection against water and corrosion; Application: Harsh industrial settings, washdown zones, outdoor installations.
Get a Quick Quote for a Eaton 864-4XSS6CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XSS6CHC?
Enquire Now
FAQs
Yes. The 864-4XSS6CHC is designed for wall mounting with external mounting feet, offering an 8 in height, 6 in width, and 4 in depth. Its 16 gauge 316 stainless steel construction and hinged cover provide quick access and strong protection, making it ideal for tight control rooms where space is at a premium and reliability is critical.
Key specs include 316 stainless steel material, 16 gauge wall thickness, weight of 4.7 lb, overall dimensions 8 in H x 6 in W x 4 in D, hinged cover, external feet, and seamless gasket. It carries UL 50 and CSA C22.2 certifications with a NEMA 4X rating, suitable for wet, dusty, and washdown environments.
Yes. The 864-4XSS6CHC uses 316 stainless steel, which offers superior corrosion resistance in challenging environments. Combined with a seamless gasket and NEMA 4X protection, it withstands exposure to moisture, cleaning agents, and mild chemicals, extending service life and reducing maintenance costs for corrosion-prone applications.
This enclosure is well-suited for industrial control panels in washdown areas, food and beverage processing, chemical plants, and outdoor or humidity-prone facilities. Its wall-mount design, external feet, and hinged door support frequent access while maintaining strict environmental protection and regulatory compliance.
The combination of 316 stainless steel, 16 gauge walls, and a seamless gasket reduces ingress and wear, lowering maintenance frequency. The durable construction translates to longer service life, less downtime, and improved regulatory compliance, delivering a favorable total cost of ownership in demanding automation environments.
