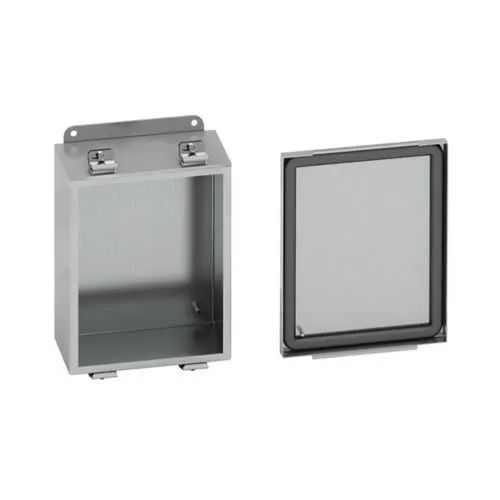

Eaton 864-4XSS6LC Panel Enclosure - NEMA 4X Rating
Part Number: 864-4XSS6LC
Quick Summary
Eaton B-Line series JIC panel enclosure protects electrical components in rugged, wall-mounted industrial environments. Many compact enclosures struggle with corrosion, ingress protection, gasket deterioration, and maintenance downtime in harsh facilities. UL 50, CSA C22.2, and NEMA ratings underpin reliable performance and safety where demanding equipment operates. Built with 316 stainless steel and a seamless poured in-place gasket, it resists corrosive washdown and seals reliably. Its wall-mount design with external feet simplifies installation, reduces space requirements, and supports quick service without relocating heavy components. This enclosure also accepts panel-mount provisions and stainless door clamps, enabling scalable control architectures while delivering long-term cost savings.
Product Information
Extended Description
864-4XSS6LC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 6" width, NEMA 4X, Screw cover, 4XSS6LC enclosure, Wall mount, Small single door, External mounting feet, 316 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XSS6LC
UPC
782051094718
Product Length/Depth
4 in
Product Height
8 in
Product Width
6 in
Product Weight
4.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSS6LC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction delivers exceptional corrosion resistance in washdown and harsh environments → Business Impact: Extends service life and lowers replacement costs in chemical, food, or manufacturing plants → Application: Ideal for control panels in damp or coastal facilities. Feature: Seamless poured-in gasket and screw cover provide reliable ingress protection → Business Impact: Reduces maintenance downtime and prevents moisture ingress in critical circuits → Application: Suitable for high-humidity spaces and outdoor installations with proper mounting. Feature: 8 in height, 6 in width, 4 in depth with 16 gauge wall thickness → Business Impact: Compact, lightweight footprint enables space-efficient layouts without sacrificing strength → Application: Fits tight electrical closets and equipment racks. Feature: External mounting feet and wall-mount capability → Business Impact: Eases installation and future service, lowering labor costs during upgrades → Application: Quick retrofit in existing panels or new builds. Feature: Panel mount provisions and stainless door clamps → Business Impact: Supports scalable control architectures and secure, long-term enclosure integrity → Application: Used in modular automation and process control panels requiring durable hardware.
Get a Quick Quote for a Eaton 864-4XSS6LC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XSS6LC?
Enquire Now
FAQs
Begin with wall-mount planning to align with external mounting feet dimensions. Secure the enclosure to the wall using appropriate fasteners, then attach any required back panels or components. Install the gasket and close with the screw cover to ensure ingress protection. Verify door alignment and clamp operation, and test access to internal components before commissioning.
This enclosure is constructed from 316 stainless steel with a 16 gauge wall and a 4X rated NEMA enclosure. It meets UL 50 and CSA C22.2 standards, providing corrosion resistance and reliable enclosure integrity in harsh environments. Dimensions are 8 in high, 6 in wide, and 4 in depth, making it suitable for compact control panels.
Yes, the 4X rating indicates suitability for outdoor and washdown locations where exposure to moisture or corrosive elements is a concern. For optimal outdoor use, ensure correct mounting, gasket integrity, and suitable enclosure placement to maximize longevity and minimize maintenance requirements.
The enclosure complies with UL 50 and CSA C22.2 standards, and it carries a NEMA 4X rating. These certifications ensure suitable protection against ingress, corrosion, and environmental hazards in industrial settings, supporting compliance for built-to-spec electrical installations.
Regular gasket inspection and cleaning, plus periodic door clamp checks, help maintain sealing performance. The 316 stainless steel construction delivers superior corrosion resistance, reducing replacement frequency. Its modular design with external feet and panel-mount provisions supports scalable automation while minimizing downtime during upgrades or expansions.
