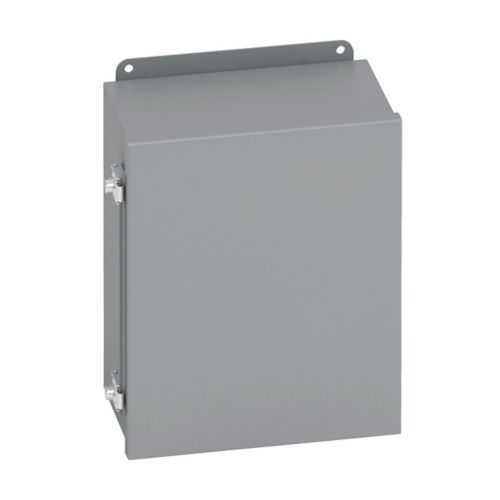

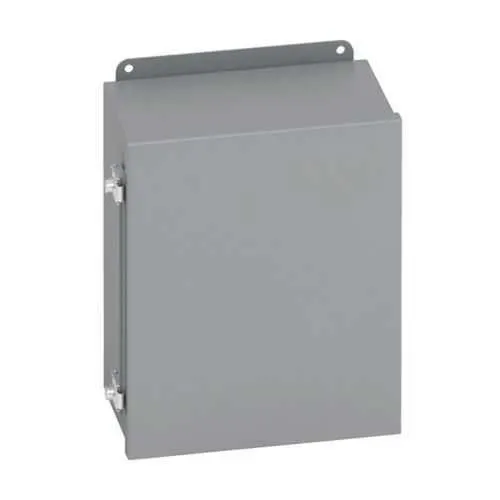

Eaton 864-FTC JIC panel enclosure - NEMA 12 rating
Part Number: 864-FTC
Quick Summary
Eaton 864-FTC JIC panel enclosure is a compact, wall-mounted housing to protect electrical controls in industrial panels. In the field, engineers wrestle with ingress, corrosion, and space constraints that slow installation and increase maintenance. This enclosure carries UL 508A and CSA C22.2 certifications with a NEMA 12 rating, delivering reliable dust and splash protection in demanding environments. Designed for panel builders and automation integrators, it reduces field wiring complexity, supports tight mounting footprints, and aligns with standard B-Line components for scalable, compliant electrical infrastructure. Its carbon steel construction and seamless gasketing also help minimize leak points, improving long-term uptime and safety.
Product Information
Extended Description
864-FTC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 6" width, NEMA 12, Hinged cover, 12FTC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-FTC
UPC
782051094527
Product Length/Depth
4 in
Product Height
8 in
Product Width
6 in
Product Weight
4.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12FTC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount,pulldrawn catch
NEMA Rating
12
Country of origin
US
The 864-FTC uses a compact 8 inch height, 6 inch width, and 4 inch depth JIC panel enclosure footprint, enabling efficient use of space in tight control rooms and equipment cabinets. Feature: wall-mounted design with external mounting feet. Business Impact: simplifies installation and alignment with nearby assemblies, reducing project lead times and labor costs. Application: ideal for wall-mounted control housings in manufacturing cells where quick access and neat cable routing are essential. Feature: carbon steel, 16 gauge wall, painted ANSI 61 gray finish. Business Impact: provides robust durability against industrial wear while maintaining a clean, standardized appearance across facilities. Application: suitable for harsh environments where protection and corrosion resistance matter. Feature: hinged cover with continuous piano hinge and pulldrawn catch. Business Impact: improves serviceability and secure enclosure doors, lowering maintenance time during inspections. Application: convenient for frequent access in maintenance-heavy automation lines. Feature: seamless poured-in-place gasket and NEMA 12 protection. Business Impact: minimizes ingress pathways, reducing dust intrusion and water splash risk. Application: supports reliable operation of sensitive drives and control electronics. Feature: UL 508A and CSA C22.2 compliance. Business Impact: ensures safety and regulatory alignment for control panels, easing commissioning and audits. Application: recommended for applications requiring formal certification and customer approvals.
Get a Quick Quote for a Eaton 864-FTC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-FTC?
Enquire Now
FAQs
The 864-FTC is designed for wall mounting with external mounting feet, enabling quick positioning and alignment with adjacent cabinets. Its compact 8x6x4 inch footprint simplifies installation in tight spaces and reduces the need for custom brackets. This configuration accelerates start-up, minimizes field wiring complexity, and supports consistent, repeatable installations in control panels.
The enclosure complies with UL 508A and CSA C22.2 safety standards and carries a NEMA 12 rating for dust and splash protection. These certifications and ratings help ensure safe operation in industrial environments, streamline audits, and support regulatory compliance for control panels used in manufacturing and automation.
Yes. The NEMA 12 rating provides dust and limited water ingress protection, making it appropriate for typical workshop floors and manufacturing cells. Combined with a seamless gasket and painted carbon steel construction, it offers reliable containment of internal components against common industrial contaminants.
The 864-FTC aligns with Eaton B-Line components, offering a compatible family of products for scalable panels. Its hinged cover and external feet enable easy door access and precise mounting, while the small footprint supports compact layouts. These features help shorten procurement cycles, reduce field customization, and improve on-site assembly accuracy.
The rugged carbon steel construction, tight gasket seal, and NEMA 12 protection contribute to longer interval maintenance and lower downtime. The enclosure’s light 4.9 lb weight and simplified mounting reduce installation labor, yielding a favorable return on investment through improved reliability and reduced field service time over the system life.
