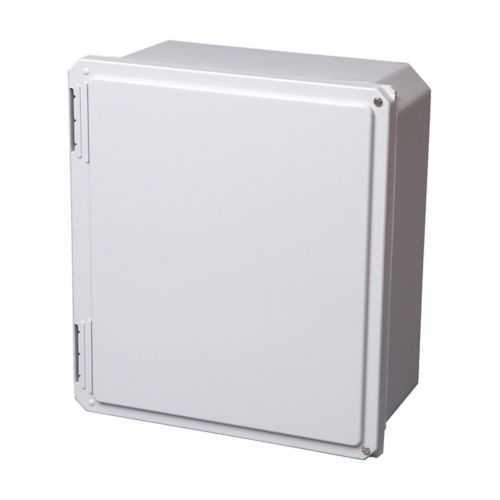

Eaton 864-SDF Enclosure - NEMA 4X
Part Number: 864-SDF
Quick Summary
The Eaton 864-SDF enclosure protects electrical components in industrial control panels and outdoor installations. Designed to minimize service disruptions, mounting and weatherproofing challenges are reduced through a rugged fiberglass body and a hinged cover. Its UL 50, NEMA 4X, and CSA C22.2 certifications provide code-compliant protection for harsh environments. With a compact footprint and wall-mount compatibility, the 864-SDF helps you optimize space, streamline maintenance, and lower total cost of ownership. This enclosure's sealed construction supports reliable operation in dusty, damp, or wash-down settings, while its stainless fasteners and optional external mounting feet simplify installation and long-term service. In practice, it blends durability with ease of use for OEMs, integrators, and maintenance teams.
Product Information
Extended Description
864-SDF Eaton: Eaton B-Line series JIC panel enclosure, 9.41" height, 4.31" length, 7.79" width, NEMA 4X, Hinged cover, SDF enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-SDF
UPC
782051524161
Product Length/Depth
4.31 in
Product Height
9.41 in
Product Width
7.79 in
Product Weight
3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
SDF enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Closure type
Hinged
Special features
Stainless screws
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers long-term durability in corrosive or wash-down environments, reducing maintenance costs and replacement cycles for fielded panels. The non-conductive material also lowers risk of accidental grounding while still offering mechanical strength. For applications on factory floors, outdoor enclosures, or chemical processing lines, the 864-SDF provides a robust home for controllers, relays, and cable entries—without adding excessive weight to the installation. NEMA 4X and UL 50 certifications provide documented protection against wind-driven rain, corrosion, and physical impact, giving engineers confidence in code compliance. CSA C22.2 compliance further aligns with North American electrical standards. In practical terms, this means fewer field modifications, faster wiring approval, and smoother OEM integration across industrial sites. Hinged cover and seamless poured-in-place gasket create a tight seal that resists dust and moisture ingress while allowing quick access for maintenance. Stainless screws resist corrosion in humid environments, contributing to longer service life. Together with a medium single door and SDF config, you get reliable serviceability in tight control panels. Mounting flexibility includes wall mounting and optional external feet, enabling precise alignment with equipment and service access. The compact 9.41 in height, 7.79 in width, and 4.31 in depth fit into crowded control rooms without sacrificing protection. A lightweight 3 lb enclosure simplifies handling during installation and relocation tasks. The design also supports easy replacement or upgrades of internal components with minimal downtime, helping maintenance teams keep lines running.
