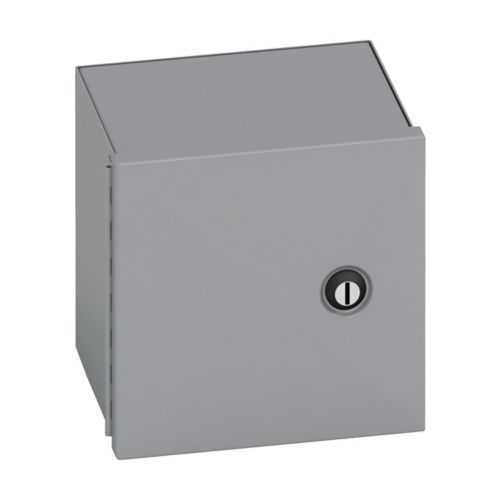

Eaton 866-1 Panel Enclosures - NEMA 1
Part Number: 866-1
Quick Summary
Eaton B-Line Type 1 panel enclosures provide compact, wall-mounted electrical housing for small control panels. In constrained spaces, engineers often battle mounting access and interior room limitations. UL 50, CSA C22.2, and NEMA ratings ensure code-compliant, safe installations in industrial environments. The hinged cover, thru-hole mounting, and carbon steel construction enable quick service while maintaining protection in factory settings. With ANSI 61 gray paint and a lightweight 5.5 lb profile, this enclosure supports efficient deployments in manufacturing, facilities, and utility applications. The combination of rugged durability and mounting flexibility helps reduce downtime and simplify panel builds for both integrators and maintenance teams.
Product Information
Extended Description
866-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 8" height, 6" length, 6" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Small single door, Thru holes, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
866-1
UPC
782051154108
Product Length/Depth
6 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: Compact Type 1 enclosure with 8 in height, 6 in width, and 6 in depth; Business Impact: Space-efficient footprint fits tight control panel layouts, enabling more compact electrical infrastructure; Application: Wall-mounted panels in small machines or equipment closets. Feature: Carbon steel construction with 16 gauge wall thickness; Business Impact: Durable, rugged housing that resists routine industrial wear and offers predictable protection; Application: Indoor factory floors and assembly lines. Feature: Hinged cover and through-holes for mounting; Business Impact: Quick access and flexible installation options reduce commissioning time and field retrofits; Application: New builds and retrofit projects needing adaptable mounting. Feature: NEMA 1 rating with UL 50 and CSA C22.2 certifications; Business Impact: Regulatory compliance and safer installations—lower risk of noncompliance penalties; Application: Code-driven electrical infrastructure in commercial and industrial facilities. Feature: Painted ANSI 61 gray finish; Business Impact: Visual consistency and corrosion resistance in standard indoor environments; Application: OEM panels and maintenance bays where aesthetics and durability matter.
Get a Quick Quote for a Eaton 866-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 866-1?
Enquire Now
FAQs
The 866-1 is designed for wall mounting with thru holes, enabling flexible installation in tight spaces. The hinged door provides quick access to internal components without reconfiguring surrounding equipment, which is beneficial for retrofit projects and frequent maintenance.
Key specs include 8 in height, 6 in width, 6 in depth, 5.5 lb weight, carbon steel construction with a 16 gauge wall, ANSI 61 gray finish, hinged cover, and small single-door configuration. It carries UL 50, CSA C22.2, and NEMA 1 ratings for code-compliant use.
Yes. Its Type 1 NEMA rating, robust carbon steel body, and hinged access make it ideal for indoor industrial control panels, OEM equipment housings, and compact electrical infrastructure in manufacturing facilities.
The enclosure is certified to UL 50 and CSA C22.2 standards and carries a NEMA 1 rating, providing compliance for electrical enclosures used in North American facilities.
Choose wall-mounted placement with accessible thru holes for quick mounting, leverage the hinged door for fast servicing, and standardize on carbon steel, ANSI 61 gray enclosures to simplify maintenance, inventory, and future upgrades, reducing downtime and labor costs.
