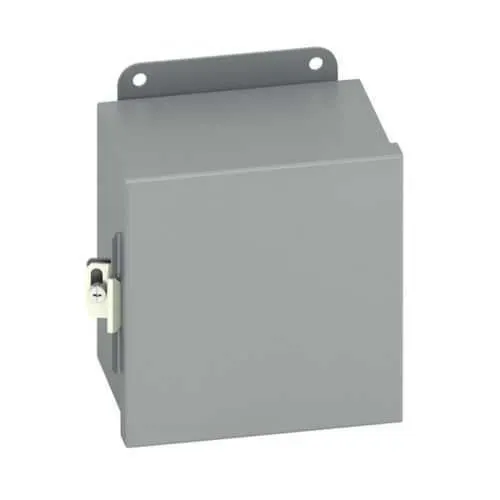

Eaton 866-12CHC JIC Panel Enclosure - NEMA 12
Part Number: 866-12CHC
Quick Summary
The Eaton 866-12CHC JIC panel enclosure is a compact wall-mount solution designed to protect electrical panels in control rooms and machine panels. Engineers often face crowded layouts, sealing challenges, and difficult service access in tight spaces. UL 508A, CSA C22.2, and a NEMA 12 rating provide essential compliance and protection for durable, code-ready installations. With a painted ANSI 61 gray finish, 16-gauge carbon steel, hinged cover, external mounting feet, and seamless poured-in-place gasket, it delivers dependable protection while simplifying installation and maintenance. Designed to integrate with Eaton's B-Line series, it scales from simple panels to multi-door configurations as your control infrastructure grows.
Product Information
Extended Description
866-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 6" length, 6" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
866-12CHC
UPC
782051700367
Product Length/Depth
6 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
The enclosure offers a compact footprint with an 8 inch height and a 6 by 6 inch footprint, enabling placement in tight control panels and on machine dashboards. This translates to space-efficient wiring, easier routing, and faster, less error-prone installation in crowded electrical rooms. The 12CHC model is NEMA 12 rated and certified to UL 508A and CSA C22.2, ensuring compliance and robust dust and light moisture protection for common industrial environments. Made from carbon steel with a 16 gauge wall, the enclosure delivers rigidity and long-term durability, reducing deformation and maintenance costs in harsh conditions. A hinged cover, external mounting feet, and a seamless gasket provide serviceability and a reliable seal, while the ANSI 61 gray painted finish ensures consistent facility aesthetics and corrosion resistance. These features support scalable, modular control housing compatible with the Eaton B-Line family for future expansion.
