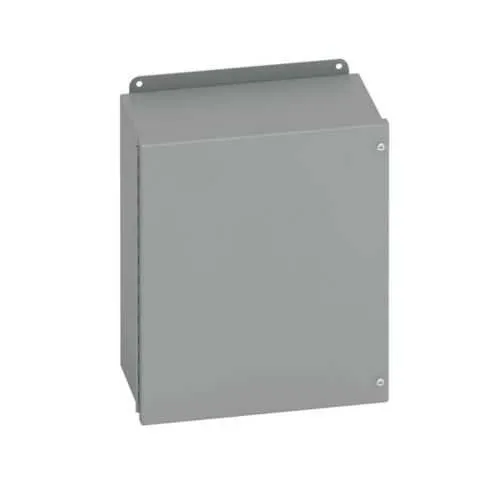

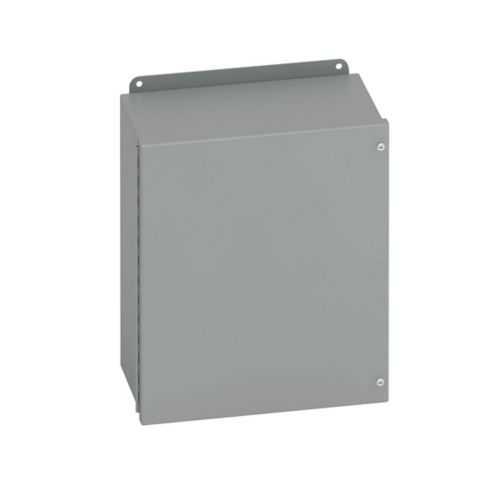

Eaton 866-12CHSC JIC Panel Enclosure - NEMA 12
Part Number: 866-12CHSC
Quick Summary
Eaton 866-12CHSC JIC panel enclosure is a compact wall-mount housing for control circuits and electrical panels. Engineers often struggle with dust, moisture, and maintaining code compliance in compact installations. This enclosure delivers UL 508A, CSA C22.2, and NEMA 12 protection to support safe, reliable operation in industrial environments. With a painted ANSI 61 gray finish on a 16-gauge carbon steel body, it combines durability with easy service access. By pairing rugged construction with a hinged cover and external mounting feet, it reduces maintenance downtime while ensuring compliant installations in OEM equipment, machine tools, and process lines.
Product Information
Extended Description
866-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 6" length, 6" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
866-12CHSC
UPC
782051702989
Product Length/Depth
6 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount prov.,plated screws
NEMA Rating
12
Country of origin
US
Feature: Hinged cover and small single-door design enable fast access to internal components, reducing downtime during maintenance and rework. Business impact: Faster service, lower labor costs, and improved panel uptime across production lines. Application: Ideal for compact control panels in automated machinery and packaging lines. Feature: Carbon steel, 16 gauge wall thickness with oil-resistant gasket delivers robust ingress protection. Business impact: Superior dust/moisture resistance in harsh environments, extending component life and reducing corrosion-related failures. Application: Controllers and relays in dusty workshop floors or damp environments. Feature: External mounting feet and wall-mount capability simplify installation and service clearance. Business impact: Reduced installation time and easier maintenance routing in constrained spaces. Application: Wall-mounted enclosures for machine controls and HVAC systems. Feature: 8 in high, 6 in deep, 6 in wide footprint with a hinged, external-access door. Business impact: Predictable fit in narrow enclosures, improved ergonomics, and quick component swaps. Application: Small space electrical panels in OEM equipment. Feature: UL 508A, CSA C22.2 and NEMA 12 ratings confirm regulatory compliance and safety. Business impact: Peace of mind for compliance audits and reduced risk of non-conformance. Application: Industrial control panels requiring documented safety certifications. Feature: Finish, color, and mounting details (ANSI 61 gray paint, wall-mount, external feet) support integration with existing enclosures and plant aesthetics. Business impact: Streamlined procurement and consistent field appearance. Application: Fast-tracked installation in retrofit projects and new builds.
Get a Quick Quote for a Eaton 866-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 866-12CHSC?
Enquire Now
FAQs
The 866-12CHSC is designed for wall mounting with external mounting feet, providing stable attachment and easier service access. This configuration simplifies alignment during installation and allows adequate clearance for wiring and maintenance inside a compact 8x6x6 inch footprint.
This enclosure carries a NEMA 12 rating with UL 508A and CSA C22.2 certifications, ensuring dust and moisture exclusion and compliance with common industrial electrical standards. It is suitable for indoor dry or mildly damp environments where protected control panels are required.
While the NEMA 12 rating provides robust protection in dusty and splashing environments, this enclosure is primarily intended for indoor or sheltered locations. For outdoor or extreme exposure, consider higher NEMA/IP-rated enclosures or additional sealing measures.
Dimensions are 8 in high, 6 in wide, and 6 in deep, with a 5.5 lb weight. It uses 16-gauge carbon steel, painted ANSI 61 gray, with an oil-resistant gasket. These details support durable performance, ease of mounting, and consistent appearance in regulated environments.
The hinged cover provides rapid access to internal components, reducing maintenance time and exposure of live parts. This design is particularly beneficial for frequent inspections or upgrades in production lines, enabling faster replacements while maintaining enclosure integrity and safety standards.
