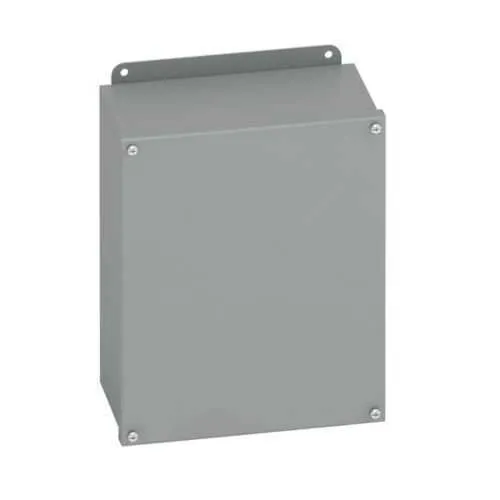

Eaton 866-12SC Enclosure - JIC Panel, NEMA 12, Carbon Steel
Part Number: 866-12SC
Quick Summary
The Eaton 866-12SC enclosure is a JIC panel enclosure for compact electrical control cabinets. Engineers often struggle with limited space and corrosion resistance in harsh environments. UL 50, CSA C22.2, and NEMA 12 ratings validate durable protection for wall-mounted installations in commercial and light industrial settings. Its carbon steel body with 16-gauge walls, ANSI 61 gray painted finish, and screw cover streamline procurement and maintenance for panel builders and maintenance teams.
Product Information
Extended Description
866-12SC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 6" length, 6" width, NEMA 12, Screw cover, 12SC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
866-12SC
UPC
782051320152
Product Length/Depth
6 in
Product Height
8 in
Product Width
6 in
Product Weight
5.3 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12SC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Captive plated screws, panel mount provisions
NEMA Rating
12
Country of origin
US
Feature: Compact 8 in x 6 in x 6 in footprint with wall mounting. Business Impact: Enables space-efficient control panels in tight layouts, reducing cabinet footprint and installation time. Application: Suitable for small process loops and instrument panels in equipment closets. Feature: Carbon steel construction with 16 gauge wall and ANSI 61 gray finish. Business Impact: Delivers robust mechanical protection and corrosion resistance in shop and field environments, lowering replacement costs. Application: Enclosures exposed to dust, splashes, or routine cleaning in light industrial settings. Feature: Oil-resistant gasket and screw cover with captive screws. Business Impact: Improves environmental sealing and serviceability, cutting maintenance downtime and ensuring secure enclosures. Application: Enclosures in oily or dusty environments where quick access is needed. Feature: External mounting feet and wall-mount capability. Business Impact: Simplifies alignment and mounting on varied surfaces, reducing labor and on-site fabrication. Application: Wall installations beside machines or control panels in factory floors. Feature: NEMA 12 rating with UL 50 and CSA C22.2 certifications. Business Impact: Assures regulatory compliance and consistent protection against dust and light splashes, supporting enterprise safety programs. Application: Industrial controls and electrical infrastructure requiring recognized standards.
Get a Quick Quote for a Eaton 866-12SC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 866-12SC?
Enquire Now
FAQs
What to know: this unit weighs about 5.3 pounds and uses external mounting feet for wall installation. Ensure suitable wall material and clearance for door swing and gasket access. Use captive screws for quick panel access and verify compatibility with external mounts to avoid stress on cabinet hinges in high-vibration environments.
Yes. It is built as a NEMA 12 enclosure with UL 50 and CSA C22.2 listings, featuring a carbon steel body, 16-gauge walls, and an oil-resistant gasket. This combination provides dust and light splash protection suitable for commercial and light industrial settings while maintaining gasket integrity during routine washdowns.
The enclosure offers panel mount provisions and captive plated screws for secure, serviceable installations. Its small single-door design simplifies access to internal components, while external mounting feet aid alignment and mounting on varied backplanes or control panels without additional fabrication.
The 866-12SC carries UL 50, CSA C22.2, and NEMA 12 ratings. These certifications confirm electrical enclosure suitability for dust and light splash protection and ensure compliance with reliability and safety requirements in commercial and light industrial equipment.
Its durable carbon steel construction, standard hardware, and straightforward wall mounting reduce replacement and maintenance costs. The combination of NEMA 12 protection and easy service access lowers downtime, while compatibility with Eaton’s B-Line series workflows streamlines procurement and installation across multi-site projects.
