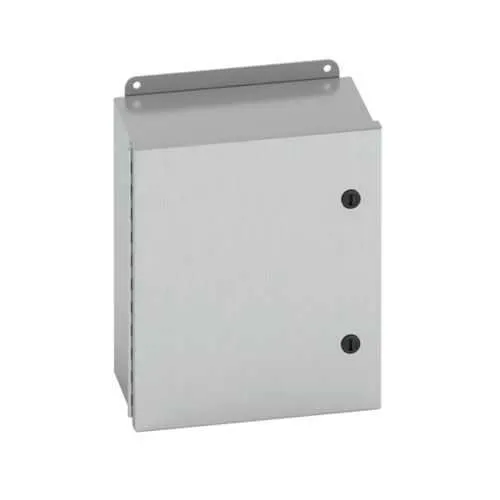

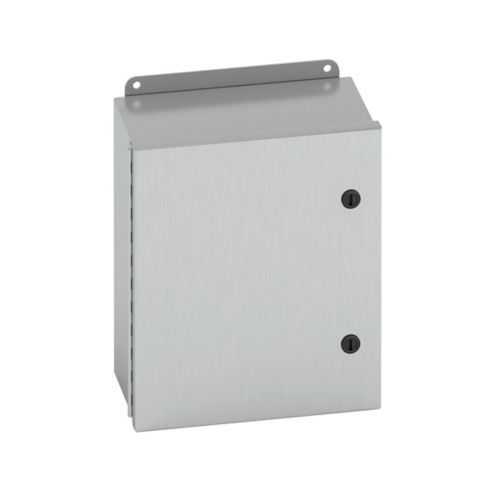

Eaton 866-4XSQT JIC Panel Enclosure - NEMA 4X
Part Number: 866-4XSQT
Quick Summary
Eaton 866-4XSQT JIC panel enclosure protects electrical assemblies in industrial control panels. This robust, stainless steel enclosure addresses common pain points like corrosion, washdown exposure, and maintenance downtime by delivering durable protection in harsh environments. It carries UL 50, CSA C22.2, and NEMA 4X certifications, ensuring reliable performance and compliance across demanding applications. With wall mounting, external feet, and a compact 8 x 6 x 6 in form, it combines industry-best materials with practical installation advantages to support efficient, compliant panel design and ongoing operational reliability.
Product Information
Extended Description
866-4XSQT Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 6" length, 6" width, NEMA 4X, Hinged cover, 4XSQT enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
866-4XSQT
UPC
782051882094
Product Length/Depth
6 in
Product Height
8 in
Product Width
6 in
Product Weight
5.4 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSQT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4X
Country of origin
US
The 304 stainless steel construction and 16 gauge wall thickness deliver superior corrosion resistance, extending service life in coastal, chemical, or washdown environments and reducing maintenance costs over time. This translates to fewer unscheduled outages and lower lifecycle expenses for critical control equipment. The NEMA 4X rating provides dependable weather and corrosion protection, enabling safe indoor and outdoor applications such as process lines and factory automation without compromising access or reliability. External mounting feet and a wall-mount design simplify installation in tight spaces, accelerating project timelines and enabling modular layouts that align with evolving control architectures. The hinged, continuous piano hinge and 1/4 turn latches are engineered for repeated access with secure sealing, improving technician productivity during routine inspections and diagnostics. A seamless poured-in-place gasket enhances ingress protection, supporting robust IP-class performance and protecting sensitive components in demanding environments. The compact 8 x 6 x 6 in footprint and lightweight 5.4 lb weight make it easy to handle, ship, and integrate with existing B-Line series enclosures while maintaining a clean, professional panel appearance.
Get a Quick Quote for a Eaton 866-4XSQT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 866-4XSQT?
Enquire Now
FAQs
For installation, position the enclosure on a stable wall with external mounting feet for secure anchoring. The 8 in height, 6 in width, and 6 in depth suit compact panel layouts. Use the hinged cover with 1/4 turn latches and the seamless gasket to ensure a weatherproof seal. Verify UL 50 and CSA C22.2 compliance during setup and confirm NEMA 4X protection for washdown or corrosive environments.
Key specs include 304 stainless steel material, 16 gauge wall thickness, NEMA 4X rating, hinged cover, external mounting feet, and a continuous piano hinge with 1/4 turn latches. These features deliver corrosion resistance, robust ingress protection, and reliable access for inspections. The compact 5.4 lb enclosure balances strength with ease of handling, reducing installation time and vibration-related wear in demanding control environments.
Yes. The 304 stainless steel construction, 16 gauge wall, and NEMA 4X rating provide excellent resistance to moisture, grime, and cleaning chemicals typical of washdown processes. The seamless gasket and hinged cover maintain a secure seal during frequent cleaning cycles, while external feet enable flexible mounting in tight or constrained spaces often found in food processing and pharmaceutical facilities.
This enclosure carries UL 50, CSA C22.2 certifications, and a NEMA 4X rating. These credentials indicate compliance with recognized safety and performance standards for electrical enclosures, supporting regulatory obligations in industrial plants, guaranteeing fire and electrical safety, and simplifying vendor qualification and system acceptance processes.
The stainless steel, corrosion-resistant body reduces maintenance and replacement frequency in harsh environments, lowering lifecycle costs. Its compact form and light weight facilitate faster installation and service access, reducing labor costs. The enclosure’s durable seal and reliable protection help minimize unplanned downtime, delivering a favorable return on investment through extended service life and improved system reliability.
