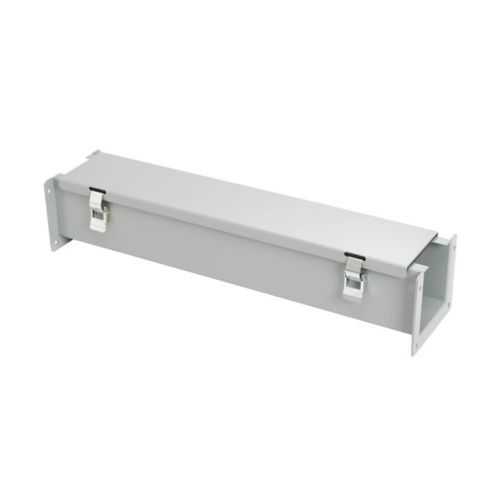

Eaton 8806-12LW Wireway System - Hinged Cover, NEMA 12
Part Number: 8806-12LW
Quick Summary
Eaton 8806-12LW wireway system efficiently channels electrical wiring in industrial enclosures. When space is tight and cables proliferate, routing becomes messy and maintenance downtime increases. UL Listed and CSA C22.2 certified, with a NEMA 12 enclosure rating, this steel wireway delivers rugged protection and reliable performance. Designed for control panels and machine enclosures, it supports fast installation, enhanced safety, and scalable wiring layouts, delivering real value for engineering teams and procurement professionals alike.
Product Information
Extended Description
8806-12LW Eaton: Eaton B-Line series wireway, 8" height, 6" length, 8" width, 12LW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Oil-resistant gasket, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
8806-12LW
UPC
782051004328
Product Length/Depth
6 in
Product Height
8 in
Product Width
8 in
Product Weight
6.342 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover held by heavy-duty butt hinges & quick-release latches
Type
12LW wireway
Hinged cover with heavy-duty butt hinges and quick-release latches provides fast access for inspections and maintenance, reducing downtime and labor costs in high-demand automation lines. This design improves serviceability in crowded control panels, enabling rapid cable reorganization during upgrades without compromising enclosure integrity. The 14-gauge steel construction delivers robust durability in harsh industrial environments, minimizing risk of damage during handling and installation, while maintaining long-term reliability in manufacturing floors and process plants.
Get a Quick Quote for a Eaton 8806-12LW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8806-12LW?
Enquire Now
FAQs
The 8806-12LW uses an integrated wireway hanger mounting method, enabling flexible placement within cabinets and on frames. It is designed for the Eaton B-Line Series ecosystem, ensuring compatible fasteners, accessories, and enclosure interfaces. This compatibility streamlines installation, reduces custom fabrication, and supports scalable wiring layouts for evolving control panels.
This wireway is UL Listed and CSA C22.2 certified, signaling compliance with recognized safety standards for electrical enclosures. It also features a NEMA 12 enclosure rating, providing protection against dust, oil, and moisture ingress in typical industrial settings. Together, these certifications and ratings help ensure regulatory conformity and reliable operation in demanding environments.
Yes. The enclosure uses a steel body with a 14 gauge thickness and an oil-resistant gasket, offering resistance to oil exposure and typical wash-down conditions found in process and manufacturing environments. The NEMA 12 rating further reinforces protection against dust and moisture, supporting long-term performance in challenging conditions.
The 8806-12LW features an eight-inch height, eight-inch width, and six-inch depth, forming a compact 8x8x6 in footprint. It weighs approximately 6.34 lb, which helps with handling and installation planning in tight control panels while maintaining sturdy stability during operation.
Common challenges include limited access, tight wiring spaces, and the need for quick maintenance. The hinged cover with heavy-duty latches provides fast, tool-free access; the steel construction offers durable protection; and the wireway hanger mounting method simplifies alignment and mounting across multiple enclosures, reducing installation time and ensuring consistent, code-compliant layouts.
