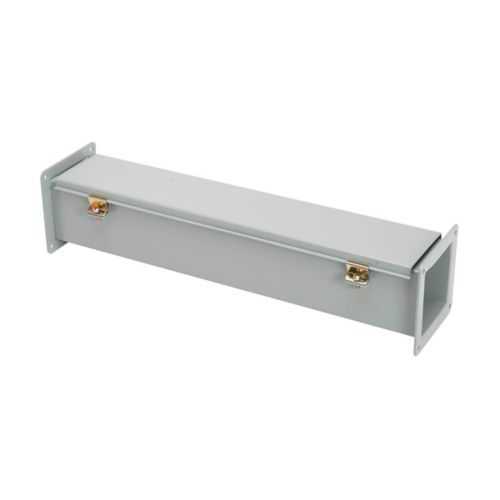

Eaton 8824-12FW wireway - NEMA 12 certified
Part Number: 8824-12FW
Quick Summary
Use Eaton 8824-12FW wireway to efficiently route cables in industrial enclosures. Engineers often struggle with bulky cabling, limited service access, and inconsistent protection across panels. This model carries UL Listed and CSA C22.2 certifications, reinforcing safety and compliance in electrical installations. The 8824-12FW belongs to the B-Line series wireways and features a hinged cover in ANSI 61 gray, built from 14 gauge steel for long-term durability. By combining reliable protection with easy installation, this wireway helps reduce maintenance time and improve panel reliability in robust manufacturing settings.
Product Information
Extended Description
8824-12FW Eaton: Eaton B-Line series wireway, 8" height, 24" length, 8" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
8824-12FW
UPC
782051112603
Product Length/Depth
24 in
Product Height
8 in
Product Width
8 in
Product Weight
19.638 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured with heavy-duty hinges&screw clamps
Type
12FW wireway
Feature: 14 gauge steel construction with ANSI 61 gray finish. Business Impact: Delivers durable, corrosion-resistant enclosure protection while maintaining a consistent, low-maintenance appearance across installations. Application: Ideal for rugged industrial environments where long service life and uniform aesthetics matter. Feature: 8 in height, 8 in width, 24 in length with 12FW wireway. Business Impact: Provides ample routing capacity and scalable cable management to accommodate growing wiring needs, reducing rework and downtime. Application: Suitable for machine wiring and control panels inside factory floors. Feature: Hinged cover with heavy-duty hinges and screw clamps. Business Impact: Enables rapid access for maintenance and simplifies field servicing without compromising enclosure security. Application: Preferred in high-access areas and assemblies requiring frequent inspections. Feature: Wireway hanger mounting. Business Impact: Simplifies installation and aligns with standard mounting practices, shortening install time and improving layout consistency. Application: Common in new builds and retrofit projects in automation cabinets. Feature: NEMA 12 enclosure rating with UL Listed and CSA C22.2 certifications. Business Impact: Ensures regulatory compliance and reliable protection against dust, splashes, and indoor contaminants. Application: Critical for harsh industrial environments and regulated facilities.
Get a Quick Quote for a Eaton 8824-12FW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8824-12FW?
Enquire Now
FAQs
Yes. The 8824-12FW is part of the Eaton B-Line series and is designed to integrate with standard B-Line wireway accessories and hanger systems. The hinged cover and screw clamps simplify field assembly, while the wireway hanger mounting enables flexible positioning in existing panels or new enclosures. Always verify clearance and mounting spacing per installation drawings to maintain NEMA 12 protection.
Key specs include 14 gauge steel construction with ANSI 61 gray finish, dimensions of 8 in height by 8 in width by 24 in length, and a 12FW wireway. It carries UL Listed and CSA C22.2 certifications and provides a NEMA 12 enclosure rating, suitable for indoor, dusty or splash-prone environments. The model weighs approximately 19.638 lb, supporting robust handling and mounting in typical industrial settings.
Absolutely. The 8824-12FW is designed for rugged control panels and machine enclosures in harsh industrial environments. Its NEMA 12 rating, hinged cover, and durable 14 gauge steel construction support reliable protection against dust and light splashes while facilitating frequent maintenance. It’s well-suited for automation cabinets, panel boards, and wiring trunks in factories.
The 8824-12FW is UL Listed and CSA C22.2 certified, aligning with common North American electrical safety standards. These certifications support compliance during audits and help ensure safety and reliability in panel wiring and enclosure installations.
The hinged cover with heavy-duty clamps enables quick access for inspection and upgrade work, reducing downtime during maintenance. The ANSI 61 gray finish and 14 gauge steel construction provide long-term durability, lowering replacement costs. Integration with existing hangers improves installation efficiency, contributing to faster project timelines and favorable return on investment in automation projects.
