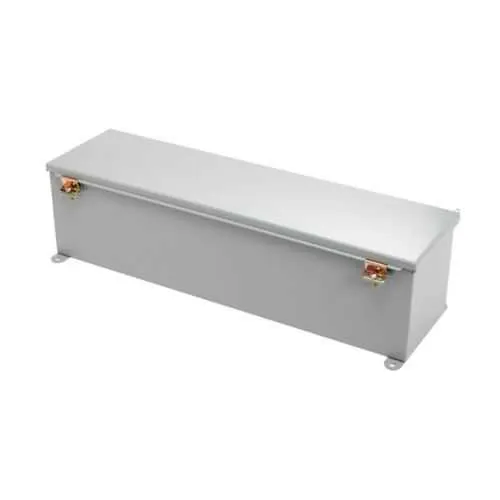

Eaton 8836-12WT Wiring Trough - UL Listed NEMA 12
Part Number: 8836-12WT
Quick Summary
Eaton 8836-12WT Wiring Trough delivers rugged cable routing for industrial control panels in manufacturing and process environments. Experts often struggle with secure covers, space constraints, and corrosion resistance; this trough provides a hinged, heavy-duty solution with easy maintenance. It carries UL Listed and CSA C22.2 certifications with a NEMA 12 rating, backed by 14 gauge steel and a welded construction. By choosing Eaton’s B-Line series, you gain consistent installation height, reliable hinged covers, and scalable length options for future expansion. In practical terms, operators experience faster panel commissioning and lower maintenance costs thanks to secure cover hardware and a rigid enclosure.
Product Information
Extended Description
8836-12WT Eaton: Eaton B-Line series wiring trough, 8" height, 36" length, 8" width, 12WT wiring trough, Welded external mounting feet, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, Gray, 14 gauge
Product Name
Eaton B-Line series wiring trough
Catalog Number
8836-12WT
UPC
782051164206
Product Length/Depth
36 in
Product Height
8 in
Product Width
8 in
Product Weight
30.356 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
Gray
Closure type
Hinged
Special features
Cover secured with heavy-duty hinges&screw clamps
Type
12WT wiring trough
Feature: 8 inch height, 8 inch width, and 36 inch length in a 14 gauge steel trough. Business Impact: Provides ample conductor capacity while maintaining a compact footprint, reducing cabinet footprint and facilitating tidy cable management. Application: Ideal for machine controls and process line enclosures where space is at a premium. Feature: Seamless welded exterior with external mounting feet. Business Impact: Increases mounting rigidity and vibration resistance, lowering the risk of panel detachment in demanding environments. Application: Heavy-duty industrial installations with frequent vibration or movement. Feature: Hinged cover with heavy-duty hinges and screw clamps. Business Impact: Enables quick access for maintenance while maintaining secure enclosure integrity, reducing downtime. Application: Routine inspection, testing, and preventive maintenance in manufacturing cells. Feature: NEMA 12 rated enclosure. Business Impact: Protects conductors from dust and light moisture, improving reliability in dirty or humid facilities. Application: Chemical plants, automotive assembly, and general industry. Feature: 14 gauge steel, gray finish. Business Impact: Combines strength with corrosion resistance and a neutral color for easy integration into existing plant aesthetics. Application: New builds and retrofits where durability and consistent appearance matter. Feature: 36 inch long trough with external mounting feet. Business Impact: Simple, scalable installation across multiple panels, enabling standardized layouts and faster deployment. Application: Control rooms and panel houses requiring modular wiring paths.
Get a Quick Quote for a Eaton 8836-12WT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8836-12WT?
Enquire Now
FAQs
For a proper install, ensure external mounting feet are secured to a stable panel frame or enclosure wall with appropriate hardware. Verify the 36 inch length aligns with your cabinet width, and maintain clearances for hinged cover operation. Use the 14 gauge steel construction to support expected conductor mass and avoid overloading the trough.
Key specs include 8 inch height, 8 inch width, 36 inch length, 14 gauge steel, gray finish, and a hinged cover with heavy-duty hinges and screw clamps. It is rated as NEMA 12 and UL Listed, with CSA C22.2 certification, making it suitable for controlled environments and North American compliance.
Yes, its NEMA 12 rating provides resistance to dust and light moisture, while the welded exterior and 14 gauge steel construction offer durability against vibration and impact. The hinged cover simplifies access for routine maintenance, which is valuable in high-usage facilities like packaging lines and machine cells.
The 8836-12WT carries UL Listed and CSA C22.2 certifications, ensuring compliance with North American electrical and safety standards. These certifications help with regulatory approvals, reduce the risk of non-compliance delays, and support procurement requirements in sensitive manufacturing environments.
The ROI comes from faster installation due to standardized dimensions and external mounting feet, reduced maintenance downtime from a hinged, secure cover, and improved long-term reliability with a robust 14 gauge steel construction. Its NEMA 12 rating adds protection against dust and moisture, lowering replacement and service costs over time.
