Eaton 884-1 Panel Enclosures - NEMA 1
Part Number: 884-1
Quick Summary
Eaton 884-1 Panel Enclosures provide rugged, wall-mounted protection for control gear in compact spaces. Users often struggle to fit reliable indoor enclosures into tight electrical rooms while staying compliant with safety codes and maintaining easy access for maintenance. This Type 1 enclosure delivers UL 50, CSA C22.2, and NEMA-rated performance, helping ensure regulatory conformity in dry indoor environments. Its carbon steel construction with ANSI 61 gray painted finish offers long-term durability while keeping footprint minimal, supporting scalable panel strategies and faster installation for OEMs and facilities teams alike.
Product Information
Extended Description

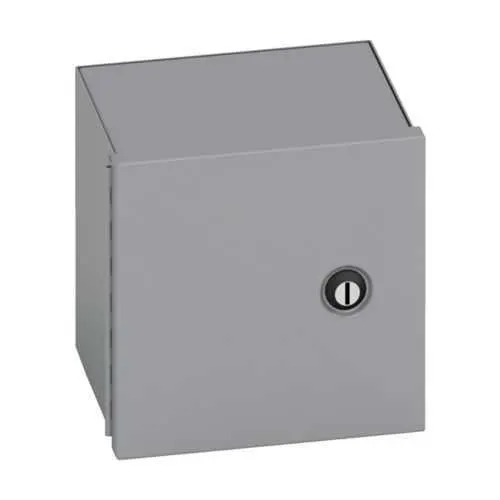

884-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 8" height, 4" length, 8" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Small single door, Thru holes, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
884-1
UPC
782051792201
Product Length/Depth
4 in
Product Height
8 in
Product Width
8 in
Product Weight
5.5 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: Compact footprint at 8 in height, 8 in width, and 4 in depth maximizes cabinet density and simplifies wiring in small control panels. Business Impact: Helps reduce enclosure footprint and total installed cost while maintaining protective capability. Application: Ideal for space-constrained machines and line-side control cabinets. Feature: Wall mounting with thru holes and a hinged cover enables quick access and modular installation. Business Impact: Cuts installation time, simplifies routine maintenance, and enables easy retrofits. Application: Wall-mounted equipment enclosures in manufacturing floors and panel rooms. Feature: Carbon steel body with 16 gauge wall thickness and ANSI 61 gray painted finish delivers dependable durability and corrosion resistance. Business Impact: Extends service life and reduces replacement cycles in indoor environments. Application: Dry indoor electrical rooms and machine panels requiring reliable protection. Feature: NEMA 1 rating with UL 50 and CSA C22.2 compliance ensures code-aligned enclosure performance. Business Impact: Reduces compliance risk and supports safe operation of control circuits. Application: Standard non-hazardous industrial control applications. Feature: Thru holes, small single door, and hinged closure support fast access and straightforward service workflows. Business Impact: Lowers downtime during inspections and component upgrades. Application: Routine maintenance and component swaps in compact enclosures.
Get a Quick Quote for a Eaton 884-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 884-1?
Enquire Now
FAQs
The 884-1 is designed for wall mounting with through-hole mounting details, enabling straightforward installation and alignment with other B-Line accessories. The hinged cover provides easy access for diagnostics and maintenance.
The enclosure footprint is 8 inches high by 8 inches wide and 4 inches deep, with an approximate weight of 5.5 pounds, making it compact yet sturdy for small panel applications.
No. The 884-1 carries a NEMA 1 rating intended for indoor dry environments. For outdoor or hazardous locations, consider enclosures with higher ratings (e.g., NEMA 3R, IP-rated) or other model variants.
The enclosure is certified to UL 50, CSA C22.2, and NEMA standards, providing recognized compliance for electrical enclosures and helping to meet regulatory requirements in industrial facilities.
Its hinged door, compact size, and thru-hole mounting reduce maintenance time and installation costs while ensuring durable protection—translating to reduced downtime and lower lifecycle costs for small-scale control panels.
