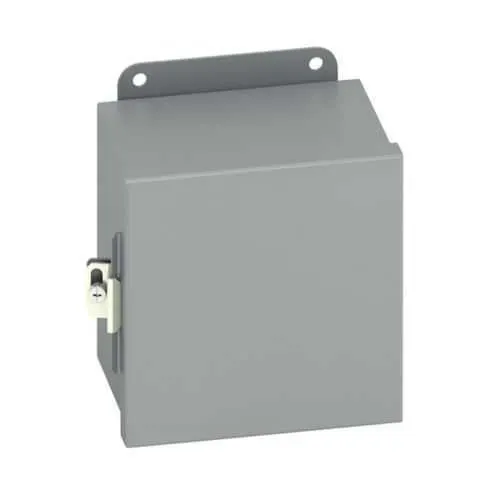

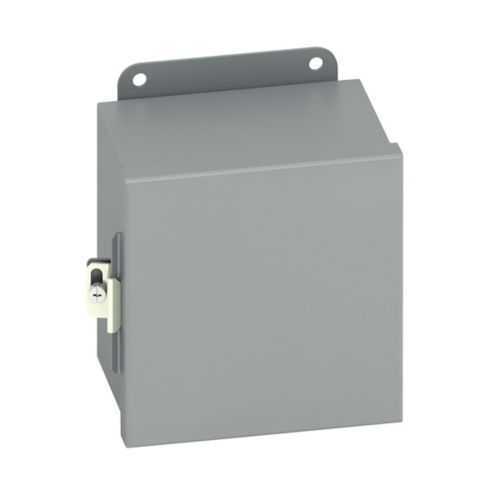

Eaton 884-12CHC JIC panel enclosure - NEMA 12
Part Number: 884-12CHC
Quick Summary
Eaton 884-12CHC JIC panel enclosure is a compact wall-mount solution for electrical controls in demanding industrial environments. Tight layouts and gasket integrity challenges can complicate installs on crowded factory floors, leading to delays and maintenance headaches. With UL 508A and CSA C22.2 certifications and a NEMA 12 rating, this enclosure delivers reliable protection against dust and moisture. Its carbon steel body, seamless gasket, and hinged cover enable fast access and durable sealing, while external feet and wall mounting simplify installation. For OEMs and maintenance teams, it means predictable performance, reduced downtime, and a lower total cost of ownership across electrical infrastructure projects.
Product Information
Extended Description
884-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 8" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
884-12CHC
UPC
782051700381
Product Length/Depth
4 in
Product Height
8 in
Product Width
8 in
Product Weight
5.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
Feature: Compact 8 in high, 8 in wide, 4 in deep footprint with a 5.7 lb weight. Business Impact: Enables installation in tight spaces without sacrificing rigidity or serviceability. Application: Small automation panels on machine tools and packaging lines where space is at a premium. Feature: NEMA 12 rating with UL 508A and CSA C22.2 compliance. Business Impact: Enhanced ingress protection reduces field downtime and replacement costs. Application: Industrial controls exposed to dust and routine washdowns. Feature: 16 gauge carbon steel construction with a painted ANSI 61 gray finish. Business Impact: Durable enclosure that resists wear in harsh plant environments, lowering maintenance. Application: Factory floors and assembly lines requiring robust protection. Feature: Hinged cover with cont. piano hinge and plated door clamps. Business Impact: Quick, repeatable access for wiring and inspections, improving maintenance speeds. Application: Ongoing electrical maintenance and panel upgrades. Feature: External mounting feet and wall-mount design. Business Impact: Simplified installation and alignment in constrained control rooms, reducing installation time. Application: OEM installations and retrofit projects where mounting flexibility matters. Feature: Seamless poured-in-place gasket. Business Impact: Superior seal integrity against dust/moisture, extending component life. Application: Enclosures subjected to dusty or humid production environments.
Get a Quick Quote for a Eaton 884-12CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 884-12CHC?
Enquire Now
FAQs
Yes. The 884-12CHC is designed for wall mounting and features external mounting feet for secure, quick installation. This facilitates precise placement in tight control rooms and reduces the time needed for retrofits or OEM installations.
The enclosure dimensions are 8 in high, 8 in wide, and 4 in deep, with a weight of 5.7 lb. It uses 16-gauge carbon steel and comes finished in ANSI 61 gray, providing a robust, space-efficient solution for compact control panels.
The 884-12CHC carries UL 508A and CSA C22.2 certifications and is rated NEMA 12. These standards ensure electrical safety, compatibility with industrial automation equipment, and protection against dust and moisture in typical plant environments.
Best for mechanical and electrical control panels in manufacturing, packaging, and conveyor systems. Its compact size, NEMA 12 protection, and hinged door design make it ideal for machine control cabinets, tool cribs, and retrofit projects where space and maintenance efficiency matter.
The seamless gasket and hinged cover simplify routine inspections and wiring tasks, reducing maintenance time. The durable carbon steel body and protection from dust/moisture help extend component life, lowering downtime and total cost of ownership over the equipment lifecycle.
