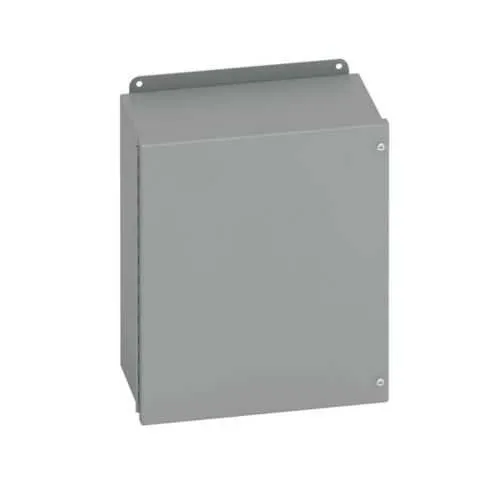

Eaton 884-12CHSC JIC Panel Enclosure - NEMA 12
Part Number: 884-12CHSC
Quick Summary
The Eaton 884-12CHSC JIC Panel Enclosure is a wall-mount control cabinet for industrial panels. Engineers often struggle with fit, accessibility, and long-term durability in compact installations; this enclosure addresses those concerns with a compact 8 in x 8 in x 4 in footprint, hinged cover, and external mounting feet. UL 508A and CSA C22.2 compliance, along with a NEMA 12 rating, provide essential electrical safety, cross-border approvals, and enclosure protection for indoor environments. The combination of a painted ANSI 61 gray finish and carbon steel construction supports reliability while keeping procurement straightforward for panel builders and maintenance teams.
Product Information
Extended Description
884-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 8" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
884-12CHSC
UPC
782051703009
Product Length/Depth
4 in
Product Height
8 in
Product Width
8 in
Product Weight
5.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount prov.,plated screws
NEMA Rating
12
Country of origin
US
Compact footprint enables space-saving installations: an 8 in height, 8 in width, and 4 in depth house controls without overbuilding a panel. This translates to smaller cabinet depth and easier cable routing, boosting panel density and serviceability in tight industrial cells. Durable protection with a NEMA 12 rating guards against dust and light splashes in indoor settings, reducing field failures and maintenance costs. The hinged cover with external mounting feet supports quick access and flexible installation, accelerating maintenance cycles and retrofit projects. Carbon steel construction with a 16 gauge wall and ANSI 61 gray finish delivers longevity and a professional appearance in demanding environments, while keeping overall weight manageable for on-site handling. Panel mount provisions and plated screws simplify internal mounting, and an oil-resistant gasket adds resilience in lubricated equipment areas, expanding compatibility with a wide range of control components and reducing integration risk.
Get a Quick Quote for a Eaton 884-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 884-12CHSC?
Enquire Now
FAQs
The enclosure uses external mounting feet for wall installation, allowing straightforward alignment and mounting without modifying the cabinet. Ensure a solid wall surface, use appropriate fasteners, and verify door clearance for hinged operation. This setup speeds up installation and reduces site disruption during panel buildouts.
Key specs include a footprint of 8 in high by 8 in wide with 4 in depth, 16 gauge wall thickness, and carbon steel construction. The enclosure is painted ANSI 61 gray and weighs about 5.7 lb. It features a hinged cover and external mounting feet, with a NEMA 12 rating for indoor dust and splash protection.
Yes. Its compact 8x8x4 in footprint, wall-mount design, hinged access, and NEMA 12 protection suit compact control panels in manufacturing cells, electrical rooms, and other indoor environments where space is constrained and frequent access is needed. It supports streamlined cable routing and quick maintenance without sacrificing safety.
This enclosure carries UL 508A and CSA C22.2 certifications, providing recognized electrical safety approvals. It also adheres to NEMA 12 enclosure standards, ensuring dust and occasional liquid protection suitable for indoor applications.
External mounting feet, contoured piano hinge, and panel mount provisions speed installation and internal wiring. The oil-resistant gasket and durable carbon steel body minimize maintenance events, while the painted finish reduces corrosion risk and extends service life in typical factory environments.
