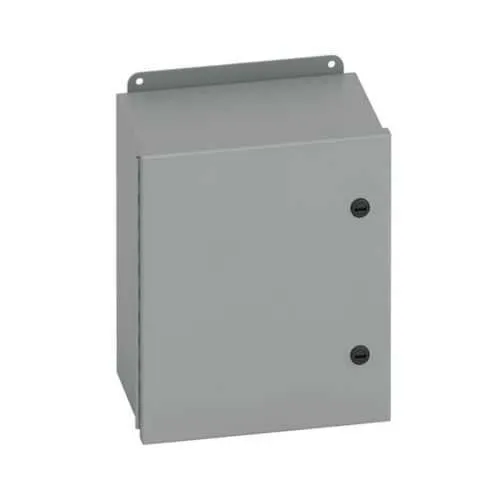

Eaton 884-4QT JIC panel enclosure - NEMA 4 rating
Part Number: 884-4QT
Quick Summary
The Eaton B-Line series JIC panel enclosure protects control circuits in compact switchgear and electrical rooms. When uptime matters, its rugged carbon steel construction and seamless gasket help prevent moisture intrusion and equipment downtime. UL 50, CSA C22.2, and NEMA 4 compliance ensure reliable performance in wet, dusty, or washdown environments. This wall-mount enclosure also supports fast service with a hinged, 1/4-turn latch design while maintaining a secure seal. Ideal for small control panels and instrument cabinets, the 4QT enclosure fits tight installations without sacrificing protection, offering durable service in industrial automation, data centers, and process environments. Engineers appreciate the external mounting feet for fast alignment during install. This model's compact footprint further reduces space requirements on crowded panels.
Product Information
Extended Description
884-4QT Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 8" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
884-4QT
UPC
782051881721
Product Length/Depth
4 in
Product Height
8 in
Product Width
8 in
Product Weight
7.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
Feature: NEMA 4 rating and UL/CSA certifications. Business Impact: delivers reliable ingress protection against water, dust, and washdowns, reducing unplanned downtime. Application: suitable for outdoor walls or harsh indoor environments in process plants and automation cabinets. Feature: 16 gauge carbon steel with seamless gasket. Business Impact: enhances seam integrity and long-term durability while maintaining a tight seal. Application: ideal for equipment cabinets where leakage could compromise controls in crowded industrial spaces. Feature: Hinged cover with continuous piano hinge and 1/4-turn latches. Business Impact: enables quick, tool-free access for maintenance and inspections, accelerating service windows. Application: frequent-handling panels in control rooms or machine areas. Feature: External mounting feet and wall-mount capability. Business Impact: simplifies installation, alignment, and field mounting while minimizing mount-related errors. Application: wall-mounted control panels in restricted spaces. Feature: Small 4QT footprint (8 in x 8 in x 4 in). Business Impact: maximizes panel density and saves floor space without sacrificing protection. Application: compact automation cabinets in constrained environments.
Get a Quick Quote for a Eaton 884-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 884-4QT?
Enquire Now
FAQs
The 884-4QT is designed for wall mounting with external mounting feet, allowing straightforward alignment against a flat surface. Installers can use standard fasteners through the feet, ensuring a stable, vibration-resistant cabinet. The hinged cover and 1/4-turn latches enable fast opening for routine servicing, while maintaining a secure seal during operation.
The enclosure footprint measures 8 inches high, 8 inches wide, and 4 inches deep. It weighs approximately 7.7 pounds, making it a compact yet sturdy option for small control panels. This size supports tight placements without compromising access to internal components during maintenance.
The 884-4QT carries UL 50 and CSA C22.2 certifications and a NEMA 4 rating. These standards validate enclosure integrity against environmental factors such as dust, water ingress, and washdown, supporting safe operation in harsh industrial environments.
Yes. With a NEMA 4 rating, UL/CSA compliance, and a weather-resistant carbon steel body, the enclosure protects internal equipment from moisture, dust, and washdown exposure. It is suitable for both outdoor or indoor installations where rigorous environmental conditions exist.
The hinged cover, combined with 1/4-turn latches, provides rapid access to internal components while keeping the interior sealed during operation. This reduces maintenance time, improves technician efficiency, and minimizes exposure to electrical hazards during service, contributing to lower total cost of ownership.
