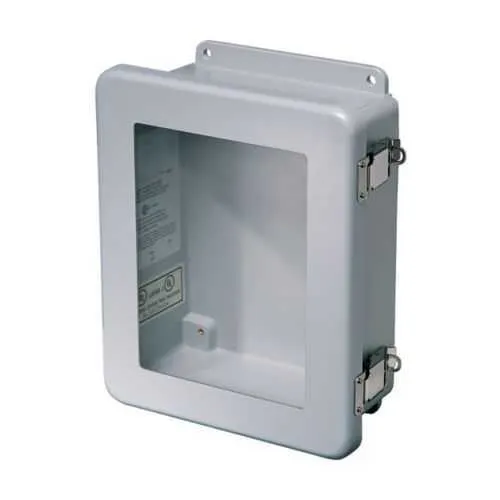

Eaton 884-4XFCHQRCW JIC panel enclosure - NEMA 4X
Part Number: 884-4XFCHQRCW
Quick Summary
Eaton B-Line series JIC panel enclosure delivers rugged, ready-to-install electrical housing for industrial control panels. In demanding facilities, maintenance access, moisture ingress, and gasket failures drive downtime and service costs. This product carries UL 50, NEMA 4X, and CSA C22.2 compliance to reinforce safety and reliability in corrosive or washdown environments. Designed as a wall-mount solution with external mounting feet and a hinged cover, it offers easy installation, secure access, and long-term cost savings for manufacturers and end users alike.
Product Information
Extended Description
884-4XFCHQRCW Eaton: Eaton B-Line series JIC panel enclosure, 9.56" height, 4.87" length, 9.38" width, NEMA 4X, Hinged cover, 4XFCHQRCR enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
884-4XFCHQRCW
UPC
782051524055
Product Length/Depth
4.87 in
Product Height
9.56 in
Product Width
9.38 in
Product Weight
1.7 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRCR enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers corrosion resistance and lighter weight, reducing handling and installation costs. This translates to longer service intervals and lower total cost of ownership in chemical processing, water treatment, and outdoor electrical installations. The enclosure’s NEMA 4X protection and UL 50 listing provide weatherproofing and corrosion resistance for harsh environments, minimizing unplanned downtime and maintenance expenses. A hinged cover with padlock provision and stainless pull drawn catch enhances site security while simplifying routine maintenance and inspections, reducing access time for technicians. External mounting feet and wall-mount compatibility simplify retrofits and new equipment installations in tight spaces, enabling flexible layouts and faster project deployments. The seamless poured-in-place gasket improves ingress protection, supporting reliable operation in washdown zones and where frequent cleaning is required. This combination delivers measurable reductions in maintenance overhead, improved compliance, and a safer, more efficient control housing for critical processes.
Get a Quick Quote for a Eaton 884-4XFCHQRCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 884-4XFCHQRCW?
Enquire Now
FAQs
The 884-4XFCHQRCW is designed for wall mounting with external mounting feet, enabling flexible installation in tight spaces and simplifying retrofit projects. Its hinged cover provides easy access to internal components, while the padlock provision supports security requirements. When planning retrofits, ensure compatible mounting hole patterns and clearance for gasket sealing to maintain NEMA 4X protection during service.
Key ratings include NEMA 4X protection and UL 50 compliance, ensuring weatherproof and corrosion-resistant performance. The enclosure dimensions are 9.56 in high, 9.38 in wide, and 4.87 in deep, with a weight of 1.7 lb. Confirm that the available space accommodates these measurements and that the hinge clearance and gasket compression align with your target sealing requirements.
Yes. The fiberglass construction and NEMA 4X rating make it suitable for outdoor use and washdown environments where moisture, dust, or chemicals are present. The seamless gasket and hinged cover design reduce ingress paths, supporting reliable operation in corrosive or wet conditions and helping to meet hygiene and safety standards in processing facilities.
Security is addressed with a padlock provision and a stainless steel pull-drawn catch for reliable latching. Maintenance access is simplified by the hinged cover and wall-mount design, enabling quick inspections and filter or component replacements without full disassembly. The gasket is designed to provide consistent sealing through repeated opening and closing cycles, extending service intervals.
Choosing the 884-4XFCHQRCW yields long-term savings through corrosion resistance, reduced maintenance downtime, and easier service access. Its lighter fiberglass construction lowers handling costs during installation. The combination of NEMA 4X protection and durable gasket sealing reduces ingress-related failures, contributing to higher equipment availability and a favorable return on investment in demanding industrial environments.
