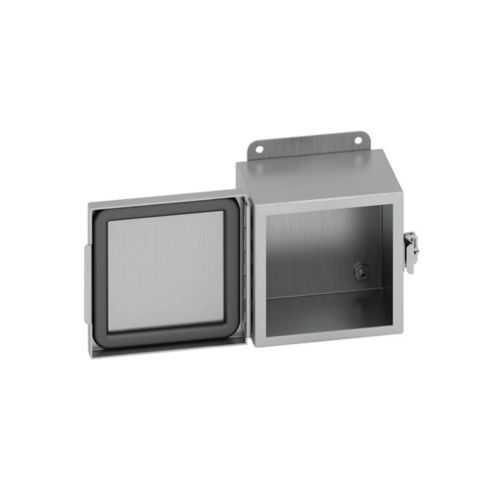

Eaton 884-4XSCHC JIC Panel Enclosure - NEMA 4X
Part Number: 884-4XSCHC
Quick Summary
Eaton 884-4XSCHC JIC panel enclosure provides a durable wall-mount housing for electrical components in industrial control panels. Operators often struggle with corrosion, leaks, and downtime when enclosures fail in harsh environments, driving maintenance costs and unplanned outages. This model earns UL 50, CSA C22.2, and NEMA 4X ratings, combined with 304 stainless steel and a seamless gasket for long-term reliability. Its wall-mount design with external mounting feet and a hinged cover simplifies installation and service, while compatible with standard B-Line accessories to deliver faster deployments and lower lifecycle costs. The enclosure's 304 stainless steel construction also supports cleanability and corrosion resistance across manufacturing, water-wash zones, and outdoor installations. This combination supports compliance with industry standards while enabling engineers to standardize enclosures across multiple lines.
Product Information
Extended Description
884-4XSCHC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 8" width, NEMA 4X, Hinged cover, 4XSCHC enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
884-4XSCHC
UPC
782051702996
Product Length/Depth
4 in
Product Height
8 in
Product Width
8 in
Product Weight
5.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSCHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Feature: Durable 304 stainless steel construction with 16 gauge wall thickness. Business Impact: Provides excellent corrosion resistance and structural integrity in wash-down and harsh environments, reducing maintenance frequency and extending service life. Application: Ideal for metalworking, process automation, and outdoor electrical panels where longevity is critical. Feature: Exact dimensions of 8 in height, 8 in width, and 4 in depth with a weight of 5.8 lb. Business Impact: Compact footprint and manageable weight simplify installation, relocation, and shipping costs, accelerating project timelines. Application: Small, space-constrained control panels and retrofits where weight is a concern. Feature: NEMA 4X rating with seamless poured-in-place gasket. Business Impact: Superior ingress protection against water, dust, and corrosion, boosting uptime in damp or outdoor settings. Application: Wash-down zones, marine-adjacent facilities, and chemical processing lines. Feature: Hinged cover, cont. piano hinge, and external mounting feet. Business Impact: Easy, quick-access service and robust enclosure closure improve maintenance efficiency and fault resolution times. Application: Routine inspections and emergency repairs in controlling cabinets. Feature: Finish '#4 brushed' and gray color. Business Impact: Aesthetically consistent installations with corrosion resistance and long-wain aesthetic durability. Application: Industrial facilities with standardized enclosures and visible installations. Feature: Full accessory compatibility with Eaton B-Line series. Business Impact: Faster integration, reduced engineering overhead, and scalable solutions across multiple lines. Application: New builds and Retrofit projects where modular components save time and cost.
Get a Quick Quote for a Eaton 884-4XSCHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 884-4XSCHC?
Enquire Now
FAQs
The 884-4XSCHC supports wall mounting with external mounting feet and a hinged cover for easy service access. It is designed to be compatible with standard Eaton B-Line accessories, enabling quick integration into existing panels or new installations. With its 8x8x4 in footprint and 5.8 lb weight, it accommodates tight spaces while providing robust support for electrical components and field wiring entries.
Key ratings include NEMA 4X, UL 50 and CSA C22.2, indicating strong protection against moisture, dust, and corrosion. The enclosure is constructed from 304 stainless steel with a 16 gauge wall and a seamless gasket, delivering reliable ingress protection. This combination supports reliable operation in wash-down, damp, or outdoor environments while enabling long service life.
Yes. The 884-4XSCHC uses 304 stainless steel, a corrosion-resistant option well-suited for wash-down and cleanability requirements common in food processing and pharmaceutical settings. Its NEMA 4X rating and gasketed seal further minimize exposure to moisture and contaminants, making it a viable choice for controlled environments that demand both cleanliness and durability.
The enclosure meets UL 50 and CSA C22.2 standards and carries a NEMA 4X rating. Documentation is available through Eaton's Electrical Enclosure Catalog and the 884-4XSCHC specification sheet, providing installation guidelines, parts lists, and compliance details to support audits and procurement.
The stainless steel construction and seamless gasket design reduce corrosion risk and sealing maintenance, lowering the total cost of ownership over time. Lightweight at 5.8 lb, it also simplifies handling and installation, decreasing labor costs. Its compatibility with standard B-Line components supports scalable upgrades and faster deployment across facilities.
