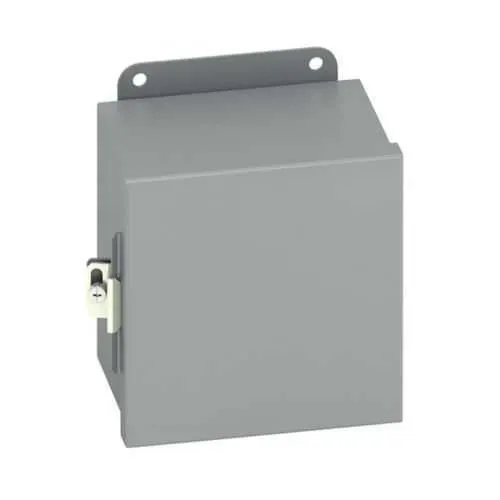

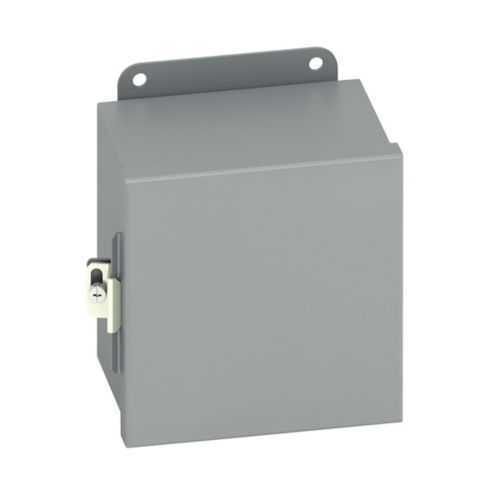

Eaton 886-12CHC JIC Panel Enclosure - NEMA 12
Part Number: 886-12CHC
Quick Summary
Eaton 886-12CHC JIC panel enclosure delivers rugged, compact control-cabinet protection for industrial electrical panels. Designers often struggle with gasket leakage, difficult access to components, and mounting in crowded switchgear spaces. This enclosure meets UL 508A, CSA C22.2, and NEMA 12 standards, delivering reliable dust and splash protection in harsh environments. With hinged cover, seamless poured-in-place gasket, and external mounting feet for wall installation, it combines long-term durability with fast, tool-free access. By choosing this enclosure, design teams gain installation efficiency, improved compliance coverage, and lower maintenance costs through robust construction and standard components. The result is safer operations, quicker panel servicing, and predictable lifecycle performance for industrial automation and electrical infrastructure projects.
Product Information
Extended Description
886-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 6" length, 8" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
886-12CHC
UPC
782051001334
Product Length/Depth
6 in
Product Height
8 in
Product Width
8 in
Product Weight
6.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
Feature: Hinged cover with cont. piano hinge and seamless gasket. Benefit: Provides quick, tool-free access for routine maintenance while maintaining a tight, reliable seal in dusty or damp environments. Application: Small control panels in manufacturing lines and utility equipment where frequent access is required without sacrificing enclosure integrity. Feature: External mounting feet and wall-mount capability. Benefit: Simplifies on-site installation in constrained spaces and reduces field mounting time, improving project schedule adherence. Application: Wall-mounted enclosures in tight electrical rooms or mezzanines. Feature: Carbon steel construction with 16 gauge wall thickness and ANSI 61 gray painted finish. Benefit: Delivers durable, corrosion-resistant protection with a professional, code-compliant appearance. Application: Harsh factory floors, wash-down areas, and industrial environments. Feature: 8 in height, 8 in width, 6 in depth; weight 6.7 lb. Benefit: Compact footprint and manageable weight for easy handling and retrofit in existing cabinets. Application: Space-limited control panels and retrofit projects. Feature: NEMA 12 rating with UL 508A and CSA C22.2 certifications. Benefit: Regulatory compliance and proven environmental protection against dust and light liquid ingress. Application: Industrial automation panels requiring certified enclosures.
