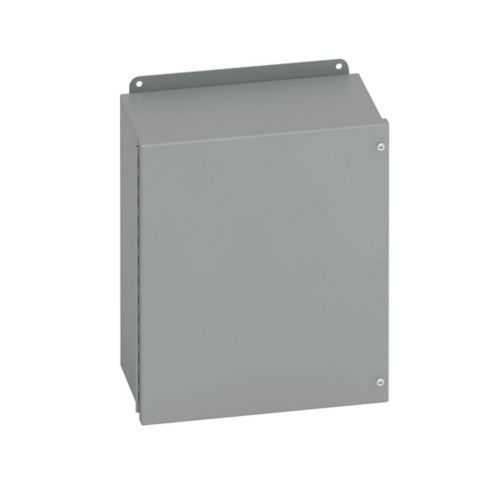

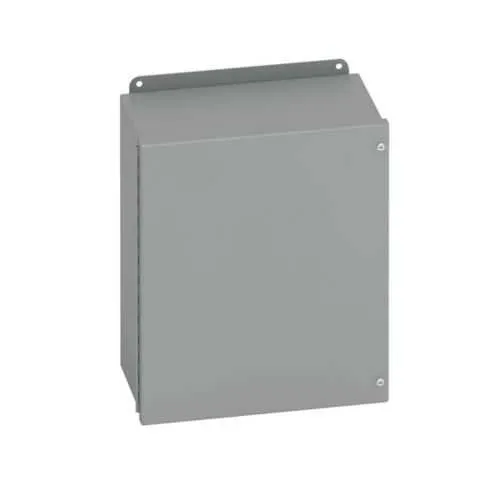

Eaton 886-12CHSC JIC Panel Enclosure - NEMA 12, Wall-Mount
Part Number: 886-12CHSC
Quick Summary
The Eaton 886-12CHSC JIC panel enclosure protects electrical gear in industrial control panels and switchgear installations. For design teams and technicians facing tight spaces, its compact 8x8x6 inch footprint and wall-mount capability deliver practical mounting without sacrificing access. This enclosure pairs a hinged cover with external mounting feet to simplify serviceability in harsh factory environments. With UL 508A and CSA C22.2 approvals and a NEMA 12 rating, it provides reliable dust and moisture resistance while remaining cost-effective for mid-sized control panels. The carbon steel construction, 16 gauge wall thickness, and ANSI 61 gray paint balance durability with compatibility across commonly used panel materials, enabling faster procurement and predictable lifecycle performance for automation projects.
Product Information
Extended Description
886-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 6" length, 8" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
886-12CHSC
UPC
782051703023
Product Length/Depth
6 in
Product Height
8 in
Product Width
8 in
Product Weight
6.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount prov.,plated screws
NEMA Rating
12
Country of origin
US
Feature: Compact 8 in height, 8 in width, and 6 in depth with wall mounting. Business Impact: Enables space-efficient panel layouts and easy retrofits in constrained plant spaces, reducing floor footprint and facilitating quicker installation. Application: Small automation panels and machine interfaces in production lines benefit from snug enclosure footprints without compromising access to internal components. Feature: NEMA 12 rating with an oil-resistant gasket. Business Impact: Delivers dependable dust, splash, and moisture resistance in ambient factory environments, lowering risk of corrosion and downtime. Application: Electrical distribution and control panels in manufacturing environments require reliable environmental protection. Feature: Hinged cover with external mounting feet and continuous piano hinge. Business Impact: Improves field maintenance speed and security, enabling quick door access and stable mounting on walls or rails. Application: Routine inspections, wiring changes, and component upgrades in process lines. Feature: Carbon steel construction with 16 gauge wall thickness and ANSI 61 gray finish. Business Impact: Delivers durability and corrosion resistance at an affordable total cost of ownership, supporting long service life. Application: Industrial enclosures exposed to routine handling, cleaning, and solvent exposure. Feature: Panel mount provision and plated screws. Business Impact: Eases adapter installation and ensures secure fastening, reducing rework and vibration-related wear. Application: Retrofit projects and new-build panels where modular components are used. Feature: Certifications UL 508A, CSA C22.2, NEMA. Business Impact: Demonstrates compliance with key electrical safety standards, increasing procurement confidence and streamlining approvals. Application: Control panels across facilities that must meet regulatory requirements and customer specifications.
Get a Quick Quote for a Eaton 886-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 886-12CHSC?
Enquire Now
FAQs
What mounting options does the 886-12CHSC support? This enclosure is designed for wall mounting with external mounting feet, allowing secure attachment to structural surfaces. The 6 in depth, combined with 8x8 in footprint, fits compact machine bays and supports quick alignment with adjacent enclosures. Plated screws and a continuous piano hinge further simplify installation and serviceability.
The enclosure carries UL 508A and CSA C22.2 approvals, along with a NEMA rating of 12. These certifications confirm electrical safety compliance, dust and moisture resistance, and suitability for industrial environments. For projects requiring standardized conformity, these credentials streamline approvals and supplier qualification while ensuring consistent performance.
Constructed from carbon steel with 16 gauge wall thickness and ANSI 61 gray painted finish, the enclosure offers rugged durability and corrosion resistance under factory conditions. The oil-resistant gasket adds an additional barrier against solvent exposure, reducing the risk of gasket degradation and maintenance frequency in environments with lubricants or coolants.
Ideal for small control panels, machine dashboards, and electrical distribution housings in manufacturing and processing facilities. Its compact dimensions, hinged cover, and wall-mount capability enable efficient integration into bill-of-materials for automation projects, while maintaining protective ratings needed for ongoing operation and ease of service during line interventions.
The 886-12CHSC reduces installation time with external mounting feet and a continuous piano hinge, lowering labor costs during initial assembly and subsequent maintenance. Durable carbon steel construction and NEMA 12 protection minimize replacement and downtime, delivering predictable lifecycle costs and improved uptime for automated lines.
