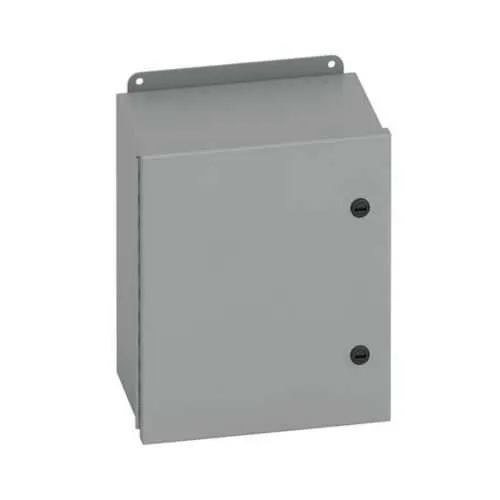

Eaton 886-4QT JIC Panel Enclosure - NEMA 4 Rating
Part Number: 886-4QT
Quick Summary
The Eaton B-Line series JIC panel enclosure provides rugged protection for electrical panels in industrial control environments. In tight spaces, moisture, dust ingress, and cluttered wiring can drive downtime and costly rework. UL 50, CSA C22.2, and NEMA 4 certifications support compliance and reliable performance in harsh environments. Built from carbon steel with a painted finish, this wall-mount enclosure is designed for easy service access, helping teams improve maintenance efficiency and reduce total cost of ownership while meeting safety and reliability standards.
Product Information
Extended Description
886-4QT Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 6" length, 8" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
886-4QT
UPC
782051881776
Product Length/Depth
6 in
Product Height
8 in
Product Width
8 in
Product Weight
6.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
Feature: Carbon steel body with 16 gauge wall thickness provides robust protection and predictable mounting in busy plant environments. Impact: The durable enclosure resists dents, maintains enclosure integrity, and supports long service life with minimal maintenance. Application: Ideal for control panels on manufacturing lines where minor impact or abrasion is common and where a painted finish in ANSI 61 gray helps blend with equipment. Feature: Seamless poured-in-place gasket creates a weather- and dust-tight seal. Impact: Reduces ingress, extends component life, and lowers the risk of unexpected failures in damp or dusty areas. Application: Suitable for indoor production floors and outdoor-rated spaces where humidity or cleaning solvents are present. Feature: Hinged cover with continuous piano hinge and 1/4-turn latches for quick access and secure closure. Impact: Speeds routine maintenance, minimizes downtime, and ensures consistent gasketing. Application: Maintenance-friendly design for frequent panel access in control cabinets and electrical rooms. Feature: Small footprint with 8x8x6 in overall dimensions and external mounting feet allows wall mounting in tight spaces. Impact: Optimizes panel density, simplifies retrofits, and reduces installation costs. Application: Compact enclosures for small control panels and junctions in conveyors, robots, or process lines. Feature: Compliance and finish details include UL 50, CSA C22.2 certification and NEMA 4 rating, ANSI 61 gray painted carbon steel finish. Impact: Provides regulatory confidence and a uniform industrial aesthetic across panel installations. Application: Suitable for new builds or upgrades where standards conformance and consistent appearance matter.
Get a Quick Quote for a Eaton 886-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 886-4QT?
Enquire Now
FAQs
Yes. The 886-4QT is designed for wall mounting and includes external mounting feet, enabling flexible positioning in tight spaces. Its 8x8x6 in footprint suits compact control panels, while the 16 gauge carbon steel body provides durable housing. When installing, ensure clearance for the hinged door and gasket access for reliable sealing during service.
The enclosure measures 8 in high by 8 in wide and 6 in deep, weighing about 6.7 lb. It is manufactured from carbon steel with a 16 gauge wall, painted ANSI 61 gray. It carries UL 50, CSA C22.2 certifications and a NEMA 4 rating, making it suitable for dust and water ingress protection in demanding environments.
Yes, its NEMA 4 rating provides protection against wind-driven dust and water ingress, making it appropriate for damp or moderately exposed environments. The seamless poured-in-place gasket enhances sealing, while the painted carbon steel construction offers durable, reliable service in production floors and sheltered outdoor areas when properly installed.
The enclosure meets UL 50 and CSA C22.2 certifications and carries a NEMA 4 rating. These standards verify enclosure integrity against corrosion, ingress, and impact in industrial settings. For engineers, this translates to built-in compliance, safer installations, and simpler auditor validation during plant upgrades or new builds.
Maintenance is streamlined by the hinged cover and quick-access latches, reducing downtime during inspections. The seamless gasket minimizes ingress, protecting internal components and extending service life. While the unit is compact, its robust carbon steel construction lowers replacement frequency, contributing to lower lifecycle costs in busy manufacturing environments.
