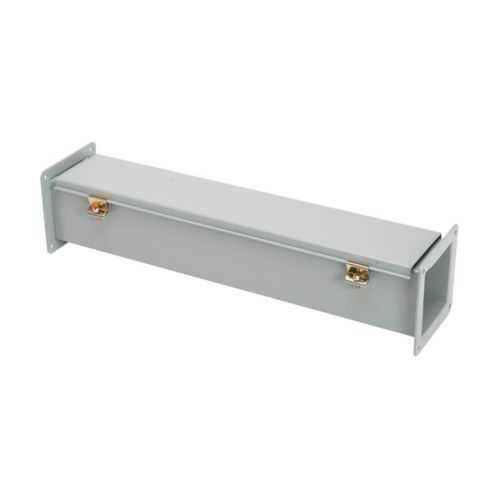

Eaton 8860-12FW Wireway - Hinged Cover, NEMA 12
Part Number: 8860-12FW
Quick Summary
Eaton 8860-12FW wireway provides rugged, space-efficient wire routing for industrial control panels and plant wiring runs. When space is tight, installers encounter accessibility challenges, securing covers, and aligning routing pathways—this design addresses those pains with a hinged cover and heavy-duty clamps. Certified with CSA C22.2 and UL Listed, it features a NEMA 12 steel enclosure with ANSI 61 gray finish to resist dust, moisture, and impact in harsh environments. Built for B-Line series compatibility and simple wireway hanger mounting, it speeds installation and simplifies future inspections, helping minimize downtime. This combination delivers reliable protection, easier serviceability, and predictable lifecycle costs for industrial environments.
Product Information
Extended Description
8860-12FW Eaton: Eaton B-Line series wireway, 8" height, 60" length, 8" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
8860-12FW
UPC
782051112757
Product Length/Depth
60 in
Product Height
8 in
Product Width
8 in
Product Weight
45.52 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured with heavy-duty hinges&screw clamps
Type
12FW wireway
Feature: 14 gauge steel construction with an 8 in by 8 in cross-section and a 60 in run length. Business Impact: Delivers durable conductor containment and resistance to incidental damage from equipment and forklift traffic. Application: Suitable for control panels, machine centers, and wiring corridors in manufacturing facilities. Feature: Hinged cover with heavy-duty hinges and screw clamps. Business Impact: Quick, tool-free access for inspections and maintenance while ensuring secure closure. Application: Frequent servicing at panel doors and cabinet openings. Feature: NEMA 12-rated steel enclosure with ANSI 61 gray finish. Business Impact: Protects against dust and light moisture ingress, extending service life in dirty or moist environments. Application: Plant floors, manufacturing lines, and control rooms where protection is mandatory. Feature: Wireway hanger mounting method; compatibility with Eaton B-Line series components. Business Impact: Simplifies installation, reduces field fabrication, and aligns with existing infrastructure. Application: Fast integration into new builds or retrofit projects across factories. Feature: Seamless poured-in-place construction. Business Impact: Enhances rigidity and minimizes crevice-related contamination risk. Application: Harsh environments with dust, moisture, and impact exposure. Feature: CSA C22.2 UL Listed certifications. Business Impact: Ensures regulatory compliance and procurement confidence. Application: Regulated facilities and stamped electrical installations.
Get a Quick Quote for a Eaton 8860-12FW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8860-12FW?
Enquire Now
FAQs
Mount the 8860-12FW using the built-in wireway hanger system and align with adjacent B-Line series components. Secure the hinged cover with the supplied heavy-duty clamps, ensuring the enclosure sits level and the run length remains unobstructed. Verify clearance for cable entries and test accessibility after installation to confirm ease of service.
Key dimensions are 60 inches in length with an 8 inch height and 8 inch width, constructed from 14 gauge steel. The unit weighs approximately 45.52 pounds, providing a sturdy path for conductor containment while remaining manageable for field installation and handling.
Yes. The 8860-12FW carries a NEMA 12-rated steel enclosure with an ANSI 61 gray finish, providing effective protection against dust, light splashes, and moderate moisture typical of manufacturing floors and equipment rooms. It’s well-suited for control panels in harsh industrial settings.
The 8860-12FW is CSA C22.2 certified and UL Listed, ensuring electrical safety compliance and registered performance for industrial applications. This simplifies procurement, auditing, and installation in regulated facilities.
Durable 14 gauge steel with seamless poured-in-place construction, plus hinged cover with secure clamps, reduces maintenance downtime and field rework. Compatibility with B-Line series components enables quick retrofits and scalable wiring solutions across plants, delivering predictable lifecycle costs and improved uptime.
