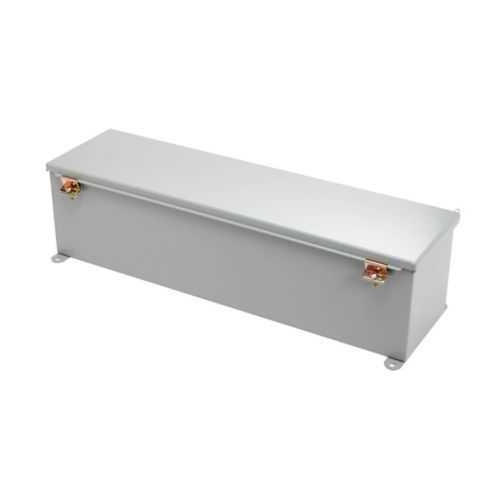

Eaton 8860-12WT Wiring Trough - UL Listed
Part Number: 8860-12WT
Quick Summary
The Eaton 8860-12WT Wiring Trough safely routes and protects wiring inside electrical enclosures for industrial control panels. Engineers often struggle with secure access, cable management, and corrosion resistance in compact cabinets, and this trough helps by offering a robust steel solution with a hinged cover for quick maintenance. It carries CSA C22.2 and UL Listed certifications and is designed to meet NEMA 12 enclosure protection, ensuring safer operation in harsh environments. Built for B-Line series compatibility, it integrates with standard mounting feet and 60‑inch layouts, reducing installation time. By improving organization and protection, it delivers measurable lifecycle cost savings and easier regulatory compliance for equipment upgrades and new builds.
Product Information
Extended Description
8860-12WT Eaton: Eaton B-Line series wiring trough, 8" height, 60" length, 8" width, 12WT wiring trough, Welded external mounting feet, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, Gray, 14 gauge
Product Name
Eaton B-Line series wiring trough
Catalog Number
8860-12WT
UPC
782051164404
Product Length/Depth
60 in
Product Height
8 in
Product Width
8 in
Product Weight
47.879 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
Gray
Closure type
Hinged
Special features
Cover secured with heavy-duty hinges&screw clamps
Type
12WT wiring trough
Feature: The 14 gauge steel construction delivers rugged protection for cables in harsh industrial environments. Business Impact: This significantly lowers the risk of abrasion and impact damage, extending component life and reducing replacement costs. Application: Ideal for Eaton B-Line series wiring trough installations within industrial control panels, switchgear enclosures, and other 60 inch wiring runs that require dependable support. Feature: Hinged cover with heavy-duty hinges and screw clamps facilitates secure closure and quick maintenance access. Business Impact: Technicians gain fast entry for inspections without downtime, while keeping dirt and moisture out. Application: Suitable for NEMA 12 environments where frequent wiring maintenance is expected. Feature: Seamless poured-in-place construction and welded external mounting feet ensure tight seams and stable mounting. Business Impact: Reduces risk of leaks or misalignment and simplifies installation in existing racks. Application: Works with 60 in length assemblies along cabinet tops or sides in new builds. Feature: 14 gauge steel with gray finish provides corrosion resistance and a clean aesthetic in industrial spaces. Business Impact: Maintains performance and appearance in damp or dusty environments, reducing repainting or enclosure refurbishments. Application: Suitable for long-lasting installation in control rooms and equipment rooms. Feature: CSA C22.2 and UL Listed certifications and NEMA 12 compatibility support regulatory compliance. Business Impact: Lowers audit risk and accelerates project approvals, enabling safer, compliant wiring runs. Application: Essential for regulated facilities and new automation deployments in manufacturing floors.
Get a Quick Quote for a Eaton 8860-12WT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8860-12WT?
Enquire Now
FAQs
The 8860-12WT is designed for Eaton B-Line series wiring trough applications and fits standard 60 inch layouts with welded external mounting feet. It pairs with NEMA 12 environments and supports common control-panel configurations, allowing seamless integration with existing enclosures and mounting footprints for rapid deployment.
Key specs include 60 inches in length, 8 inches in height, 8 inches in width, 14 gauge steel construction, gray finish, hinged cover, and heavy-duty hinges with screw clamps. Weight is approximately 47.879 lb, and the unit is CSA C22.2 and UL Listed, designed for robust, compliant wiring management.
Yes. Its NEMA 12 protection design, together with CSA C22.2 and UL Listed certifications, makes it suitable for harsh industrial environments and regulatory compliance. The rugged steel construction provides protection against dust, water ingress, and impact, helping to meet stringent safety and reliability requirements.
The hinged cover with heavy-duty hinges and screw clamps allows quick, tool-secure access for inspections and maintenance while keeping the interior protected from dust and moisture. This design reduces downtime during routine checks and ensures cables remain organized and secure during operation.
The trough delivers lifecycle benefits by improving cable organization, accelerating installation, and reducing maintenance downtime. Its durable 14 gauge steel construction lowers replacement costs, while certifications support faster audits and compliance, delivering lower total cost of ownership over the equipment’s life in automation and control environments.
