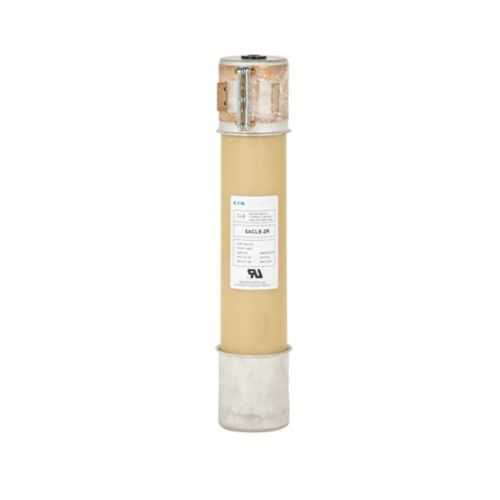

Eaton 8ACLS-2R Fuse - ACLS Class R AmpGard 7.2 kV
Part Number: 8ACLS-2R
Quick Summary
The Eaton ACLS fuse provides reliable motor protection for industrial drives. Downtime from faults can be costly, so you need fast, predictable interruption and rugged construction to keep lines running. This ACLS device features AmpGard mounting, Class R design, and a 7.2 kV rating with a 50 kAIC interrupt capability for demanding motor start protection. It also offers a single-barrel, 2R designation that supports compact panel layouts and easier service, while aligning with Bussmann series compatibility for spare parts and lifecycle planning. Leverage these features to improve reliability and reduce total cost of ownership in industrial electrical protection.
Product Information
Extended Description
8ACLS-2R Eaton: Eaton Bussmann series 8ACLS fuse, Single barrel, 2R designation, 7.2 kV, 70A, 50 kAIC, Motor start, ACLS, Class R, Ampgard, Single barrel
Product Name
Eaton Bussmann series ACLS fuse
Catalog Number
8ACLS-2R
UPC
051712530170
Product Length/Depth
15.9 in
Product Height
4.2 in
Product Width
3 in
Product Weight
9 lb
Warranty
Not Applicable
Compliances
Contact Manufacturer
Certifications
IEEE Std. C37.41 Not Applicable
Catalog Notes
Consult factory for mountings.
Amperage Rating
70 A
Interrupt rating
50 kAIC
Voltage rating
7.2 kV
Barrels
1
Class
Class R
Mounting method
Ampgard
Special features
Single barrel, 2R designation
8ACLS-2R~151D963G01~8.3KV 2R ACLS FUSE
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 8ACLS-2R
Feature → Business Impact → Application: The ACLS fuse delivers a 7.2 kV voltage rating and a 50 kAIC interrupt rating, enabling fast and reliable fault interruption in high-energy motor circuits. This reduces motor damage, minimizes downtime, and extends equipment life in demanding drive systems. Application: motor starters and high-energy drives in manufacturing lines and packaging equipment. Feature → Business Impact → Application: Single-barrel, 2R design along with AmpGard mounting supports a compact footprint and easier installation in crowded panels. Benefit: reduced panel depth, simplified field wiring, and faster changeouts. Application: modernization projects and retrofits in control panels with limited space. Feature → Business Impact → Application: Class R fuse type and 70 A amperage rating provide dependable protection for motor loads with predictable performance under surge conditions. Benefit: consistent protection margins and lower risk of nuisance blows in startup surges. Application: conveyor systems and heavy machinery where reliable motor protection is critical. Feature → Business Impact → Application: Catalog notes indicate consult factory for mountings, offering installation flexibility and customized mounting options. Benefit: adaptable configurations reduce engineering time and improve fit in non-standard enclosures. Application: panel builds requiring tailored mounting schemes. Feature → Business Impact → Application: 1 barrel design and AmpGard compatibility streamline spare parts planning and inventory management. Benefit: faster maintenance and reduced total cost of ownership for facility teams. Application: large-scale installations with ongoing protection needs across multiple lines.
