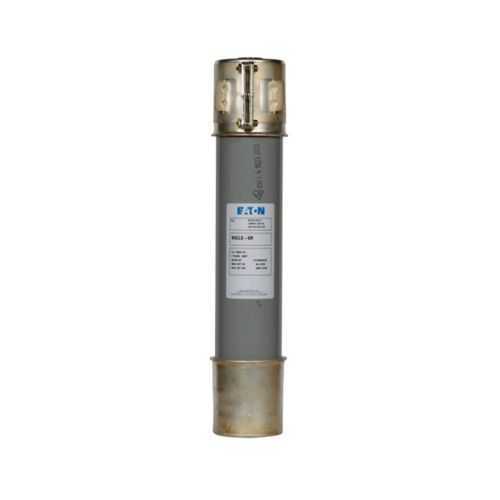

Eaton 8ACLS-6R Fuse - 7.2 kV, 170 A, 50 kAIC
Part Number: 8ACLS-6R
Quick Summary
The 8ACLS-6R fuse from Eaton protects motor circuits, delivering fast, reliable overcurrent interruption for demanding industrial starts. Maintenance teams often grapple with nuisance trips and downtime; this device aims to minimize both by matching high interrupt ratings to motor inrush. Notable certifications in the spec include IEEE Std. C37.41 (not applicable) and a broad compliance stance; consult the factory for region-specific approvals. Beyond protection, the AmpGard mounting and Class R design streamline installation, improve serviceability, and support reliable motor-start protection for critical processes. Businesses benefit from predictable protection curves, reduced spares inventory, and faster changeouts when evaluating ACLS fuses for heavy-duty drive systems.
Product Information
Extended Description
8ACLS-6R Eaton: Eaton Bussmann series 8ACLS fuse, Single barrel, 6R designation, 7.2 kV, 170A, 50 kAIC, Motor start, ACLS, Class R, Ampgard, Single barrel
Product Name
Eaton Bussmann series ACLS fuse
Catalog Number
8ACLS-6R
UPC
051712530224
Product Length/Depth
15.9 in
Product Height
4.2 in
Product Width
3 in
Product Weight
9 lb
Warranty
Not Applicable
Compliances
Contact Manufacturer
Certifications
IEEE Std. C37.41 Not Applicable
Catalog Notes
Consult factory for mountings.
Amperage Rating
170 A
Interrupt rating
50 kAIC
Voltage rating
7.2 kV
Barrels
1
Class
Class R
Mounting method
Ampgard
Special features
Single barrel, 6R designation
8ACLS-6R~151D963G05~8.3KV 6R ACLS FUSE
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 8ACLS-6R
