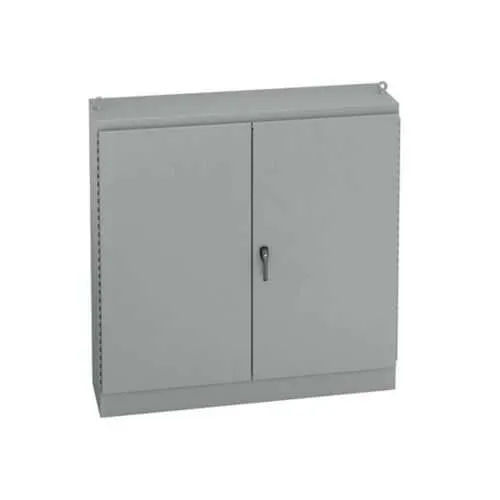

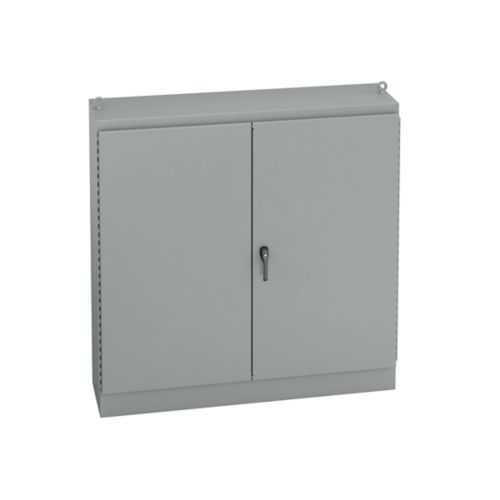

Eaton 907220-12FSD Panel Enclosures - NEMA 12
Part Number: 907220-12FSD
Quick Summary
Eaton 907220-12FSD Panel Enclosures provide rugged ground-mounted protection for industrial control panels. In busy facilities, limited space, dust, and moisture demand reliable access and secure sealing. UL 508A and CSA C22.2 listings back compliance with electrical codes, while the NEMA 12 rating guards against dust and incidental liquids. Designed with a carbon steel body, oil-resistant gasket, and a 3-pt latching handle, it delivers long service life and predictable maintenance costs. For project teams, the generous 90 in height, 72 in width, and 20 in depth translate to faster assembly and future expandability.
Product Information
Extended Description
907220-12FSD Eaton: Eaton B-Line series ground mounted panel enclosure, 90" height, 20" length, 72" width, NEMA 12, Hinged cover, 12FSD enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
907220-12FSD
UPC
782051809008
Product Length/Depth
20 in
Product Height
90 in
Product Width
72 in
Product Weight
671.5 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
12FSD enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Feature: Large internal footprint (90 in H x 72 in W x 20 in D) provides ample space for multi-row panels, wiring, and terminations. Business Impact: Enables faster wiring, easier future expansion, and reduced field modifications. Application: Ideal for manufacturing lines and plant control rooms where space for evolving panels matters. Feature: Carbon steel body with 12 gauge walls delivers robust protection and durability. Business Impact: Improves corrosion resistance and structural integrity in demanding environments, reducing maintenance costs over the life of the enclosure. Application: Indoor industrial spaces with routine servicing. Feature: NEMA 12 rating and oil-resistant gasket protect against dust and incidental liquids. Business Impact: Enhances uptime by preventing contamination and leaks, lowering cleaning cycles. Application: Dusty production floors and indoor processing areas. Feature: Hinged cover, large double doors, and 3-point latching with key lock provisions enable secure, rapid access. Business Impact: Speeds maintenance while reducing tampering risk and downtime. Application: Frequent service and critical process lines. Feature: Ground mounting design simplifies installation and minimizes vibration transmission. Business Impact: Cuts site prep time and accelerates commissioning. Application: Plant floors and machine cells requiring stable electrical housing. Feature: Painted ANSI 61 gray finish with oil-resistant gasket supports easy identification and environmental resilience. Business Impact: Improves lifecycle cost and simplifies color-coding and maintenance checks. Application: Facilities with standard color schemes and routine inspections.
Get a Quick Quote for a Eaton 907220-12FSD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 907220-12FSD?
Enquire Now
FAQs
The 907220-12FSD uses ground mounting. It is specified as ground mounted with no mounting provisions inside the enclosure, simplifying site prep and reducing internal installation work.
This enclosure carries UL 508A and CSA C22.2 listings and a NEMA 12 rating, with a US origin. These certifications support electrical code compliance and dust and splash protection for indoor environments.
No. The enclosure is rated for indoor use under NEMA 12 conditions. For outdoor or wash-down environments, consider enclosures with higher ingress protection and weatherproof ratings.
The enclosure measures 90 inches in height, 72 inches in width, and 20 inches in depth, with an approximate weight of 671.5 pounds, providing substantial mechanical rigidity and protection.
It includes a hinged cover, large double doors, a 3-point latching handle, and a key lock padlock provision, delivering secure access for maintenance while deterring tampering.
