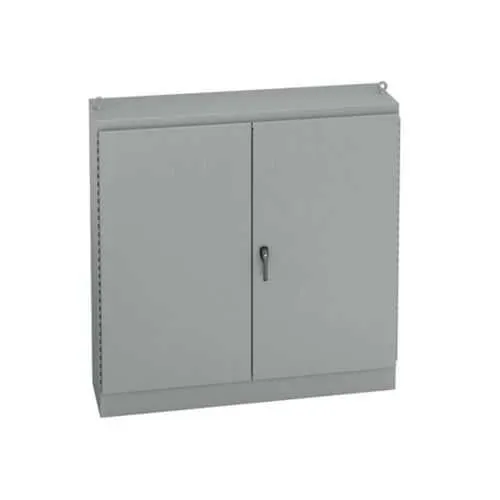

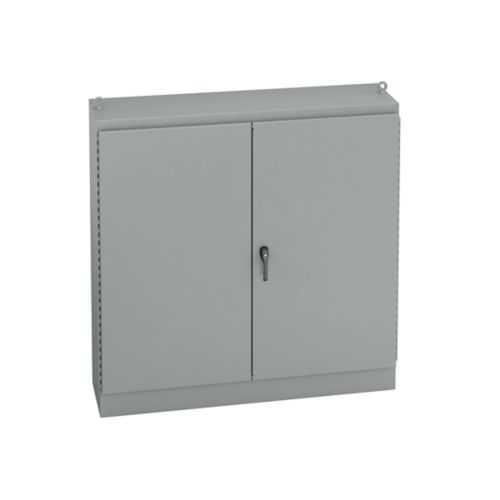

Eaton 907224-12FSD Panel Enclosures - NEMA 12
Part Number: 907224-12FSD
Quick Summary
Eaton 907224-12FSD panel enclosure is designed for reliable, ground-mounted power distribution in industrial facilities. This rugged unit safeguards sensitive controls while providing accessible maintenance access. For engineers balancing space constraints with safety, the 90 inch by 72 inch footprint offers ample room for wiring, cutouts, and future expansion. The enclosure carries UL 508A, CSA C22.2, and NEMA ratings to help you meet common electrical and safety standards across manufacturing, process plants, and utility infrastructure. By selecting this B-Line series cabinet, you gain durable carbon steel construction, an oil-resistant gasket, and a hinged door with a 3-point latching mechanism, translating into reduced downtime, easier serviceability, and long-term lifecycle value. It's well-suited for indoor, controlled environments where reliability matters.
Product Information
Extended Description
907224-12FSD Eaton: Eaton B-Line series ground mounted panel enclosure, 90" height, 24" length, 72" width, NEMA 12, Hinged cover, 12FSD enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
907224-12FSD
UPC
782051809053
Product Length/Depth
24 in
Product Height
90 in
Product Width
72 in
Product Weight
708.4 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
12FSD enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Feature: Carbon steel construction with 12 gauge wall offers robust physical protection and long-term durability in demanding environments. Business Impact: Reduces panel damage from impact, dust, and incidental moisture, lowering replacement costs and maintenance frequency. Application: Ideal for manufacturing floors, control rooms, and utility racks where heavy equipment and wiring demand rugged protection. Feature: NEMA 12 protection rating provides dependable ingress protection against dust and light liquid spills. Business Impact: Improves uptime by shielding critical controls from common industrial contaminants, supporting compliant operation in process and packaging lines. Application: Suitable for indoor process areas and dry/dusty environments where cleanliness and reliability are essential. Feature: Hinged cover with 3-point latching handle enables fast, secure access for maintenance. Business Impact: Speeds commissioning and servicing, reducing downtime while maintaining security. Application: Electrical distribution cabinets requiring quick fault isolation and routine inspection. Feature: Ground mounting with a large double door design enhances wiring access and installation flexibility. Business Impact: Simplifies cable routing and future expansion; reduces installation time and site modification costs. Application: Factory floors and utility rooms where floor mounting is preferred and space is at a premium. Feature: Oil-resistant gasket and ANSI 61 gray finish provide environmental resilience and consistent appearance. Business Impact: Prolongs seal integrity under lubricant exposure and delivers a professional, low-maintenance aesthetic. Application: Enclosures in machinery areas with oil or lubricant exposure, or where compliance with cosmetic standards matters.
Get a Quick Quote for a Eaton 907224-12FSD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 907224-12FSD?
Enquire Now
FAQs
This enclosure is designed for ground mounting with a 90 in H x 72 in W footprint. It has no internal mounting provisions, so installation should follow site foundation, anchoring, and vibration control requirements. Ensure compatible foundation, proper clearance for hinged doors, and adherence to NEMA 12 installation guidelines to protect against dust and limited liquid ingress.
The enclosure carries UL 508A, CSA C22.2, and NEMA ratings, indicating compliance with electrical safety standards and regional requirements. These certifications help verify safe operation, compatibility with electrical controls, and acceptance in regulated facilities such as manufacturing plants and utility environments, reducing qualification time for projects and audits.
The 907224-12FSD is configured for indoor, controlled environments with NEMA 12 protection. While it provides dust and light liquid ingress protection, it is not rated for harsh outdoor exposure or high humidity without additional protective measures. For outdoor applications, consider enclosures with higher IP/NEMA ratings or weatherproof variants.
The 3-point latching handle delivers secure closure with uniform compression along the door, simplifying seal integrity checks during routine maintenance. This design reduces the likelihood of misalignment and gasket wear, speeds door operations, and enhances safety by ensuring the enclosure remains properly sealed during service intervals.
Despite higher upfront cost, the 12FSD enclosure minimizes downtime through quick access and reliable NEMA 12 protection, lowers maintenance frequency due to robust gasket sealing, and extends lifecycle with carbon steel durability. These factors translate to lower total cost of ownership, fewer replacement cycles, and greater system availability in industrial facilities.
