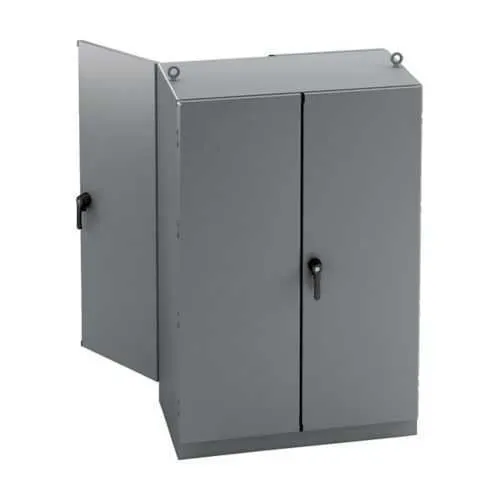

Eaton 907224-12FSDDA Panel Enclosure - NEMA 12
Part Number: 907224-12FSDDA
Quick Summary
Eaton 907224-12FSDDA panel enclosure protects electrical gear in rugged, ground-mounted installations across industrial facilities. This addresses the common challenge of keeping panels shielded from dust, debris, and incidental moisture in harsh environments. UL 508A, CSA C22.2, and NEMA ratings provide essential safety compliance and reliable performance in demanding applications. Designed for compatibility with the Eaton B-Line series and hinged-cover configurations, it delivers secure access and long service life, helping maintenance teams reduce downtime and procurement costs while simplifying stockkeeping with standard parts and footprints.
Product Information
Extended Description
907224-12FSDDA Eaton: Eaton B-Line series ground mounted panel enclosure, 90" height, 24" length, 72" width, NEMA 12, Hinged cover, 12FSDDA enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
907224-12FSDDA
UPC
782051807554
Product Length/Depth
24 in
Product Height
90 in
Product Width
72 in
Product Weight
764.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
12FSDDA enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
The 907224-12FSDDA is a ground-mounted, large double-door enclosure with a hinged cover, measuring 90 inches in height, 72 inches in width, and 24 inches in depth. Business impact: substantial internal space for panel assemblies, easier routing of cables, and faster servicing during maintenance windows. Application: ideal for manufacturing floors and processing plants requiring robust, accessible protection for electrical gear with minimal downtime. The carbon steel construction uses 12-gauge wall material and an oil-resistant gasket, delivering enhanced durability and reliability in environments with oil exposure or chemical handling. Business impact: reduced replacement cycles and lower lifecycle costs. Application: chemical processing facilities, metal fabrication, and heavy equipment environments where oil exposure is common. UL 508A and CSA C22.2 certifications, plus NEMA 12 rating, confirm compliance and safety. Business impact: conformance simplifies procurement and regulatory audits; Application: facilities needing verified electrical enclosures with strong protective credentials. The hinged cover, key lock padlock provision, and 3-point latching handle provide secure access and vandal resistance. Business impact: improved safety, controlled maintenance access, and lower risk of unauthorized entry. Application: maintenance rooms, control panels, and critical infrastructure areas that demand controlled access. Compatibility with the Eaton B-Line series footprints and mounting conventions offers streamlined installation and spare-part compatibility. Business impact: faster deployment, standardized inventory, and predictable maintenance planning. Application: new builds and retrofits where a scalable enclosure strategy is essential.
Get a Quick Quote for a Eaton 907224-12FSDDA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 907224-12FSDDA?
Enquire Now
FAQs
This model is designed for ground mounting with no mounting provisions included in the enclosure itself. Installation typically requires a stable concrete pad or dedicated base frame and anchor bolts to secure the enclosure. Ensure the base is level and capable of bearing the 764.9 lb weight. Plan for service access and cable entry clearances during site layout.
Key specs include 90 in height, 72 in width, and 24 in depth, constructed from carbon steel with 12 gauge walls, a painted ANSI 61 gray finish, and a hinged cover with a 3-point latching handle. It carries NEMA 12 rating and certifications UL 508A and CSA C22.2, with a key lock padlock provision for secure access and a weight of approximately 764.9 lb.
The enclosure carries a NEMA 12 rating, which is intended for indoor use in dusty or lightly damp environments. It is not a dedicated outdoor enclosure. For outdoor or harsh weather conditions, consider options with NEMA 3R/4X or higher, or use environmental housing and climate controls to protect the equipment inside.
Security features include a key lock padlock provision and a 3-point latching handle, which together provide controlled access and resistance to tampering. The hinged cover facilitates rapid entry for maintenance while maintaining a robust seal via the oil-resistant gasket for reliable protection of internal components.
Expect low maintenance due to durable carbon steel construction, oil-resistant gasket, and a reliable hinged cover design. The enclosure’s sturdy build reduces corrosion-related downtime and extends service life, delivering a favorable total cost of ownership. Secure access features minimize unscheduled maintenance, helping maintain uptime and predictable maintenance budgeting.
