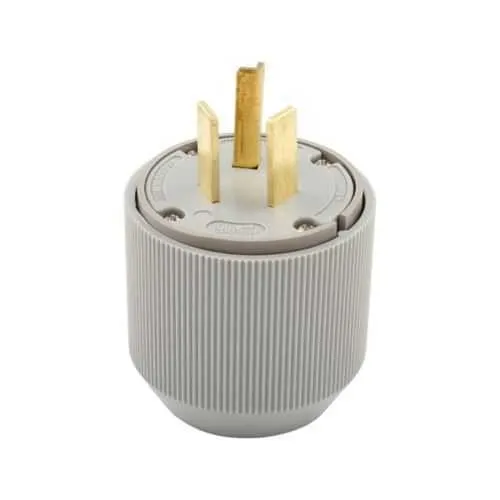

Eaton 9337N Plug - 30A, 125/250V, cULus Listed
Part Number: 9337N
Quick Summary
Eaton 9337N plug is a heavy‑duty connector designed for industrial range and dryer circuits. This solution addresses back-wire reliability and vibration-induced loosening that plagues lower‑cost devices. It carries cULus Listed certification for safety and compatibility in demanding environments, reinforcing compliance in manufacturing and facilities operations. Built for three‑pole, three‑wire applications, it supports 125/250 V at 30 A with a durable nylon/thermoplastic body. By combining robust contact materials with a secure wiring method, it improves installation efficiency, reduces maintenance downtime, and lowers lifecycle costs. OEMs and industrial end users benefit from predictable performance and easier field servicing with this Arrow Hart plug.
Product Information
Extended Description
9337N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 30A, Industrial, range and dryer, 125/250V, Back wire, Gray, Brass, Nylon, Thermoplastic, 10-30P, Three-pole, three-wire, non grounding, Screw, Nylon, Thermoplastic, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
9337N
UPC
040893020648
Product Length/Depth
3.12 in
Product Height
3.81 in
Product Width
3.12 in
Product Weight
1.05 lb
Certifications
cULus Listed
Device type
Plug
Type
Plug
Amperage Rating
30A
Voltage rating
125/250 V
Contact material
Brass
Application
Industrial, range and dryer
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Three-pole
Style type
Straight body
Material
Nylon, Thermoplastic
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
10-30P
Torque rating
20-24 lbf-inch
Design type
Straight blade
Face/body material
Nylon Thermoplastic
Receptacle type
Three-pole, three-wire, non grounding
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section A
Eaton Specification Sheet - 9337N
Feature → Business Impact → Application: Back-wire termination provides rapid, secure wiring and minimizes field rework, reducing installation time and torque variability in high‑volume assemblies. This supports predictable electrical continuity in 30A circuits and lowers commissioning risk during peak production. Application: manufacturing lines and industrial ovens where vibration resistance is critical. Feature → Business Impact → Application: Brass contact material delivers reliable conductivity and corrosion resistance, extending component life in humid or dirty environments. Application: dry and wet area repeated use in range and dryer circuits. Feature → Business Impact → Application: Extra heavy‑duty construction with nylon/thermoplastic body withstands mechanical abuse and temperature cycling, reducing failure rates. Application: original equipment and field replacements in rugged industrial settings. Feature → Business Impact → Application: Back wire wiring method simplifies field terminations for #12‑#4 AWG conductors, improving consistency across installers. Application: service upgrades and new installations in commercial kitchens and industrial facilities. Feature → Business Impact → Application: NEMA 10‑30P three‑pole, three‑wire non‑grounding configuration ensures correct polarity and safe operation for range/dryer feeds. Application: power distribution nodes in industrial plants. Feature → Business Impact → Application: cULus Listed certification provides formal safety compliance, easing procurement approvals and vendor qualification. Application: regulated facilities and testing labs where strict standards are required.
Get a Quick Quote for a Eaton 9337N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 9337N?
Enquire Now
FAQs
The 9337N employs a back-wire wiring method and supports conductors sized from #12 to #4 AWG. This enables secure, time‑efficient terminations, reduces the risk of conductor loosening under vibration, and helps maintain consistent contact pressure for stable current delivery up to 30A.
Yes. The 9337N is a three‑pole, three‑wire, non‑grounding receptacle configured for NEMA 10-30P usage. It operates at 125/250V and 30A, making it appropriate for industrial range and dryer circuits where a non‑grounding, straight blade plug is specified.
The 9337N is cULus Listed, indicating conformity with underwriter safety standards for both the United States and Canada. This certification provides assurance for compliance in regulated environments, supporting procurement approvals and quality assurance processes.
The auto grip feature ensures consistent contact seating and reduces loosening from mechanical vibration. Combined with brass contacts for durability and a robust nylon/thermoplastic body, this design minimizes downtime, extends service life, and improves electrical reliability in harsh industrial settings.
Plan for secure back-wire terminations with torques in the 20–24 lbf-in range to maintain contact integrity. Use compatible conductors (#12‑#4 AWG), ensure proper strain relief, and consider enclosure protection and ingress resistance. The unit’s materials and construction are chosen to withstand vibration, temperature cycling, and routine maintenance cycles.
