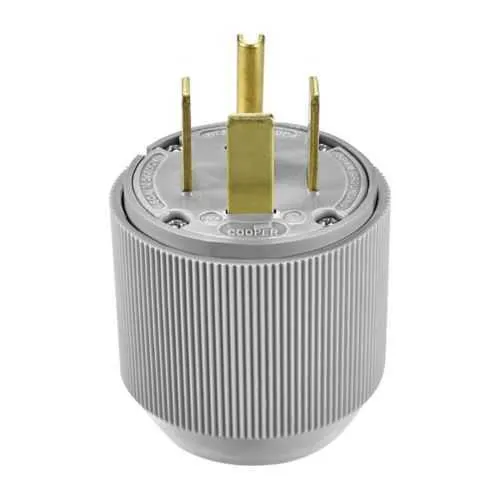

Eaton 9462N Plug - Extra Heavy-Duty, cULus Listed
Part Number: 9462N
Quick Summary
The Eaton 9462N plug is a heavy‑duty power connector designed for industrial range and dryer connections. Back-wired, with four conductors and a three-pole, four-wire grounding configuration, it speeds compliant installations while reducing field wiring errors. Designed to operate at 60A and 125/250V, it uses brass contact materials and a nylon-thermoplastic body to withstand harsh environments. This model is cULus Listed and meets Federal Specification 6221 02, supporting regulatory compliance and traceability. Coupled with the auto grip feature, it delivers secure terminations with less screw looseness, improving reliability in demanding industrial settings. Compatible with 14-60P NEMA configurations and Arrow Hart accessories for a compact, efficient on-site power solution.
Product Information
Extended Description
9462N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 60A, Industrial, range and dryer, 125/250V, Back wire, Gray, Brass, Nylon, Thermoplastic, 14-60P, Three-pole, four-wire, grounding, Screw, Nylon, Thermoplastic, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
9462N
UPC
040893020686
Product Length/Depth
3.12 in
Product Height
3.81 in
Product Width
3.12 in
Product Weight
1.05 lb
Certifications
cULus Listed Federal Specification Classification 6221 02
Device type
Plug
Type
Plug
Amperage Rating
60A
Voltage rating
125/250 V
Contact material
Brass
Application
Industrial, range and dryer
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
4
Number Of Poles
Three-pole
Style type
Power, Straight body
Material
Nylon, Thermoplastic
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
14-60P
Torque rating
30-35 lbf-inch
Design type
Straight blade
Face/body material
Nylon Thermoplastic
Receptacle type
Three-pole, four-wire, grounding
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section A
Eaton Specification Sheet - 9462N
60A at 125/250V delivers robust capacity for high-demand equipment, reducing the need for parallel or higher-cost solutions. The business impact is improved uptime and safer startup margins on industrial ranges and dryers, translating to lower downtime and maintenance expenses. The back-wire wiring method simplifies field terminations and speeds installation, while screw connections provide a reliable, field-serviceable interface. This combination minimizes wiring errors and reduces labor time during commissioning on production floors. The three-pole, four-wire grounding with a 14-60P configuration ensures secure grounding and compatibility with standard industrial outlets, improving safety compliance and reducing risk of fault conditions. The nylon-thermoplastic housing with brass contacts offers durability, corrosion resistance, and consistent performance in temperature and chemical exposure typical of processing environments. Torque rating of 30–35 lbf-in guides installers to proper tightness, supporting repeatable, code-compliant terminations and long-term reliability. Packaging as a core pack enables efficient stocking and quick deployment across multiple job sites, while the gray body aligns with common color-coding practices for inventory management. Overall, the design delivers reliable performance, reduced maintenance cycles, and predictable ROI on high-volume installations.
Get a Quick Quote for a Eaton 9462N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 9462N?
Enquire Now
FAQs
The 9462N uses a back-wire termination with four conductors and screw connections. For proper installation, strip insulation to the specified length, secure conductors under the back-wire clamps, and tighten to the documented torque of 30–35 lbf-in. This approach minimizes stray conductors and ensures a solid, code-compliant connection in industrial environments.
Yes. The 9462N is a three-pole, four-wire grounding plug configured for NEMA 14-60P. It supports 60A and a 125/250V rating, making it compatible with typical industrial range and dryer circuits, while the grounding arrangement helps meet safety and electrical codes on production floors.
The 9462N is cULus Listed and meets Federal Specification 6221 02, providing recognized safety certification and traceability. This combination supports regulatory compliance in North American facilities and helps with procurement requirements that demand certified electrical connectors for industrial applications.
Auto grip reduces dependence on frequent screw retightening by maintaining secure terminations, which lowers maintenance cycles and minimizes downtime due to loose connections. The durable brass contacts and nylon-thermoplastic housing resist wear and corrosion, delivering longer service life and lower total cost of ownership in harsh industrial settings.
The 9462N’s three-pole, four-wire grounding and 14-60P configuration align with Arrow Hart receptacles and accessories. Its core-pack packaging supports efficient stocking, while the gray nylon/thermoplastic body and brass contacts provide reliable mating with compatible high-amperage outlets, ensuring quick field replacements and consistent inventory management on the shop floor.
