Eaton 956MV2AD41FGMW MV AutoVAR Capacitor Bank - CSA/IEEE
Part Number: 956MV2AD41FGMW
Quick Summary
Eaton MV AutoVAR capacitor bank delivers automated reactive power control for medium-voltage electrical systems used in industrial facilities. Manufacturers and utilities face rising energy costs and inconsistent power factor, driving manual switching and equipment wear. It adheres to IEEE Std. 18 and CSA certification, providing a compliant option for Canada and global projects. With 956 kVAR at 4160V, a two-stage detuned filter, and automatic switching, this solution reduces penalties, improves voltage stability, and scales to growing loads, delivering measurable efficiency gains for the enterprise. Designed for 4160V systems and 60Hz operation, it supports quick installation and reliable long-term performance in motor drives, transformers, and critical load centers.
Product Information
Extended Description

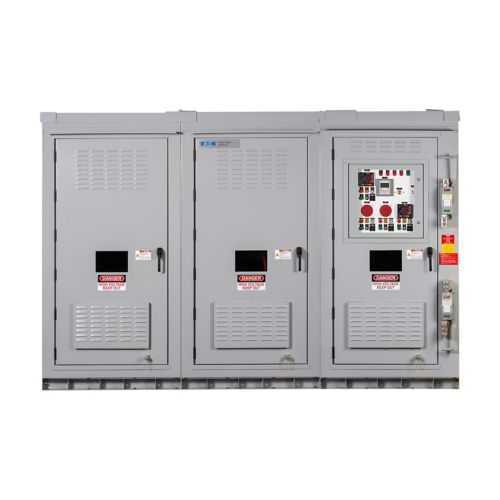

956MV2AD41FGMW Eaton: Eaton Automatically Switched MV AutoVAR Capacitor Bank, 956 kVAR, 4160V, 2 stage, 60Hz, 4.2H Detuned Filter
Product Name
Eaton MV AutoVAR filtered capacitor bank
Catalog Number
956MV2AD41FGMW
UPC
786689014483
Product Length/Depth
49 in
Product Height
91 in
Product Width
225 in
Product Weight
12020 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEEE Std. 18 CSA Certified (Canada Only)
Type
Capacitor bank
Automatic switching with a two-stage control delivers real-time VAR optimization. This reduces demand charges, improves power factor, and minimizes manual intervention in daily operations. Applications include large industrial facilities with variable motor loads on 4160V, 60 Hz systems. 956 kVAR capacity at 4160V provides scalable reactive support that aligns with changing production needs. The 4.2H detuned filter suppresses harmonic interactions, protecting feeders and transformers from voltage spikes and overheating. Two-stage design enables finer control across load swings, delivering smoother voltage profiles for sensitive equipment. Applications span manufacturing, mining, and processing facilities where consistent VAR management translates to higher uptime and lower operating costs.
