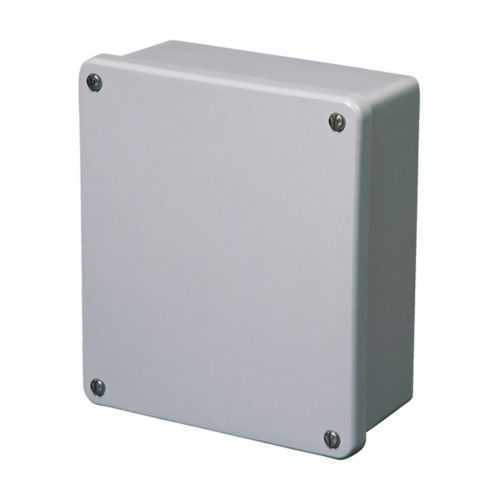

Eaton 963-4XFSC JIC Panel Enclosure - NEMA 4X
Part Number: 963-4XFSC
Quick Summary
The Eaton 963-4XFSC JIC panel enclosure is a rugged fiberglass wall-mounted housing for industrial control and electrical distribution. Designed to protect critical components in harsh environments, it helps prevent moisture and dust ingress that can cause downtime. It carries UL 50, NEMA 4X, and CSA C22.2 certifications, underscoring reliability for demanding facilities and international specs. With a lightweight yet durable build and a seamless gasket system, this enclosure supports straightforward installation and long-term maintenance savings for panel builders and end users. Optional external mounting feet provide flexible field mounting in tight spaces, enhancing installation efficiency in tight plant layouts.
Product Information
Extended Description
963-4XFSC Eaton: Eaton B-Line series JIC panel enclosure, 9.87" height, 3.19" length, 6.63" width, NEMA 4X, Screw cover, 4XFSC enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
963-4XFSC
UPC
782051523621
Product Length/Depth
3.19 in
Product Height
9.87 in
Product Width
6.63 in
Product Weight
3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFSC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
Optional external mounting feet
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass construction with an unfinished gray finish. Business Impact: Provides robust corrosion resistance in outdoor or washdown environments, reducing maintenance cycles and repaint costs. Application: Ideal for wall-mounted control panels in manufacturing, water treatment, and food processing facilities. Feature: NEMA 4X rating with UL 50 and CSA C22.2 compatibility. Business Impact: Delivers reliable protection against wind-driven rain, dust, and corrosion, supporting regulatory compliance and reduced downtime. Application: Suitable for demanding industrial sites and outdoor installations. Feature: Seamless poured-in-place gasket and screw cover. Business Impact: Ensures a tight seal that minimizes ingress, lowers gasket replacement frequency, and simplifies service access. Application: Critical for climate control panels in moisture-prone environments. Feature: Compact dimensions and light weight. Business Impact: Facilitates quick handler-in and space-efficient mounting without structural reinforcements, reducing installation time and labor costs. Application: Small-footprint control housings in space-constrained panels. Feature: Mounting options including wall mount and optional external feet. Business Impact: Provides flexible installation strategies for retrofit projects and harsh or uneven surfaces, improving field adaptability. Application: Common in process lines and equipment rooms where wall mounting is preferred, with optional feet for freestanding configurations. Feature: Model-specific details and finishes. Business Impact: Clear compatibility with 4XFSC enclosure standards aids design engineers in fast spec review, accelerating procurement and reducing change orders. Application: Cross-functional use across panels that require standardized Eaton B-Line enclosures.
Get a Quick Quote for a Eaton 963-4XFSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 963-4XFSC?
Enquire Now
FAQs
The 963-4XFSC is designed for wall mounting with an optional external mounting feet feature. This provides flexible installation in tight spaces or retrofit projects, allowing you to adapt to existing wall substrates or equipment layouts without sacrificing gasket integrity. By supporting external feet, field alignment can be fine-tuned for consistent door alignment and service access.
Yes. The enclosure carries a NEMA 4X rating with UL 50 and CSA C22.2 certifications, indicating robust protection against wind-driven rain, corrosion, and dust ingress. Its fiberglass construction further enhances resistance to moisture and harsh chemical environments, making it appropriate for outdoor installations and washdown areas in industrial facilities.
This model meets UL 50, NEMA 4X, and CSA C22.2 standards. These certifications confirm the enclosure’s suitability for protecting electrical and control components in demanding settings, support compliance with US and international safety codes, and help reduce regulatory risk for projects spanning multiple regions.
The enclosure measures 9.87 inches in height, 6.63 inches in width, and 3.19 inches in depth, with an approximate weight of 3 pounds. While it is compact, its space is optimized for standard control cabinets and junctions within the JIC form factor, enabling efficient component layout and service access.
Fiberglass construction, seamless gasketing, and a robust NEMA 4X rating minimize corrosion-related maintenance and ingress-related downtime. The screw cover design simplifies field service, while optional mounting feet speed up installation in retrofit projects, delivering long-term reliability and lower lifecycle costs for plant operators.
