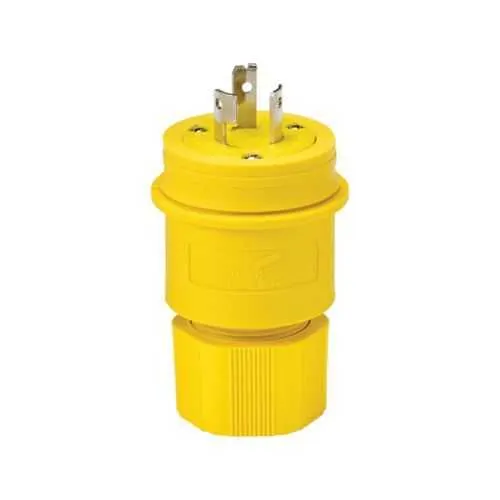

Eaton 9965PW Watertight Locking Plug - cULus Listed
Part Number: 9965PW
Quick Summary
Eaton 9965PW watertight locking plug provides secure back-wired power connections for industrial equipment. When moisture, washdown, or dust threaten reliability, installers need a connector that stays locked and seals out contaminants. This part carries cULus Listed certification and robust IP67/NEMA 6 family ratings, designed for rugged wet locations while meeting strict industrial performance standards. Its yellow nylon body and Santoprene elastomeric seal deliver visibility and chemical resistance, while back-wiring and #18-10 AWG compatibility cut field diagnosis time. The three-pole, three-wire configuration simplifies wiring schemes across machines and panels, helping maintenance teams reduce downtime and extend service life in harsh environments.
Product Information
Extended Description
9965PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 125/250V, Back wiring, Yellow, Watertight, Three-pole, Three-wire, non-grounding, Santoprene thermoplastic elastomeric, 0.36 to 0.84 in
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
9965PW
UPC
040893641904
Product Length/Depth
2.39 in
Product Height
2.86 in
Product Width
2.39 in
Product Weight
0.25 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
Non-NEMA
Number Of Poles
Three-pole
Number of wires
3 Non-grounding
Torque rating
14-16 lbf-inch
Voltage rating
125/250 V
Environmental resistance
NEMA 6P NEMA 4X IP67 NEMA 4 NEMA 6
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking plug
The watertight locking plug design provides a secure, tamper-resistant connection that minimizes accidental unplugging in busy industrial spaces and protects sensitive equipment from moisture ingress. This translates to lower downtime and longer mean time between failures (MTBF) in manufacturing lines. The 20A, 125/250V rating supports common industrial loads, with a three-pole, three-wire, non-grounding configuration that streamlines panel wiring while maintaining safety. Back-wiring compatibility with #18-10 AWG conductors reduces installation time and field errors, delivering faster commissioning and easier maintenance. Nylon face/body plus Santoprene elastomeric sealing deliver durable resistance to oils, chemicals, and washdowns, helping assemblies survive aggressive environments. The color-coding (yellow) enhances visibility for quick inspections in busy facilities. cULus listing and IP67/NEMA 6/4X compatibility provide regulatory confidence and compliance for global operations. Overall, the design supports safer, more reliable connectivity with lower lifecycle costs and predictable performance in demanding settings.
Get a Quick Quote for a Eaton 9965PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 9965PW?
Enquire Now
FAQs
The 9965PW uses a back wiring method designed for quick field termination. It supports #18-10 AWG conductors, enabling straightforward installation without additional connectors. Ensure conductors are cleanly inserted to the specified torque range and secured within the nickel-plated brass contacts to maintain a reliable, low-resistance connection in wet or washdown environments.
The 9965PW is rated for 20A at 125/250V and configured as three-pole, three-wire non-grounding. It uses nickel-plated brass contacts and provides a locking plug design to prevent accidental disconnection. Torque during mating and securing is 14-16 lbf-in, ensuring a consistent, vibration-resistant connection in industrial settings.
Yes. The 9965PW is designed for harsh environments with IP67 protection and NEMA 6/4X compatibility, including NEMA 6P/6, ensuring watertight performance in washdowns and exposure to moisture. The yellow nylon body and Santoprene seal enhance chemical resistance and visibility, making it a reliable choice for outdoor panels and wet-location applications.
The 9965PW is cULus Listed, which confirms compliance with UL safety standards for North American markets. This certification supports regulatory approvals in industrial facilities, helps meet procurement and safety audits, and provides assurance to integrators that the connector meets stringent moisture, electrical, and environmental requirements for rugged installations.
To maximize ROI, install using the back-wiring method with #18-10 AWG conductors and adhere to the 14-16 lbf-in torque specification for reliable contact seating. Regularly inspect the locking mechanism and seals for wear, replace if integrity is compromised, and benefit from reduced downtime due to secure connections and resistance to moisture ingress in washdown environments.
