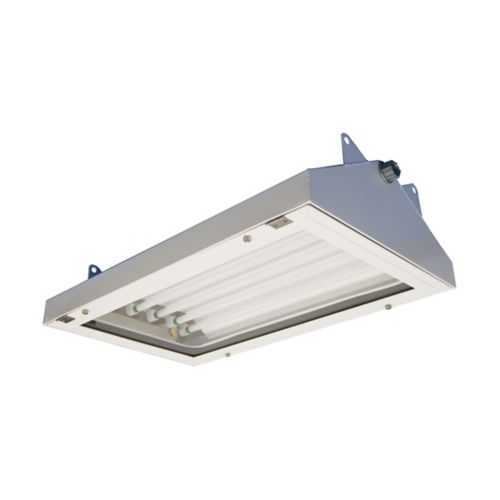

Eaton AA44171EM2LQ Linear Fluorescent Light Fixture - IP66
Part Number: AA44171EM2LQ
Quick Summary
The Eaton AA44171EM2LQ linear fluorescent light fixture delivers reliable illumination for industrial facilities and non-hazardous locations. Maintenance teams often battle moisture ingress, corrosion, and downtime; this luminaire’s rugged aluminum housing, gasketed acrylic lens, and quick-release access help reduce service time. With IP66 ingress protection, a NEMA 4 rating, and NEC/CEC compliance, it meets tough codes while staying versatile across 120–277V systems. Designed for through-feed installation and emergency backup options, it supports uptime and energy efficiency across mission-critical operations. The fixture's 50.59 in length and 4-lamp configuration optimize light distribution in large spaces, while fast wiring and a user-friendly design reduce installation and maintenance costs over the life of the asset.
Product Information
Extended Description
AA44171EM2LQ Eaton: Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent,1/2" (2) NPT hubs,4 ft,Acrylic lens,T8 bi-pin,Al,4-lamp,Emergency battery back-up,one lamp,277V max,lamps,quick disconnect receptacle,Through feed,Quick release,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent light fixture
Catalog Number
AA44171EM2LQ
UPC
662276450318
Product Length/Depth
50.59 in
Product Height
6.53 in
Product Width
15.72 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Quick release
Material
Aluminum
Lamp length
4 ft
Number of lamps
4-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
1/2"
Entry type
(2) NPT hubs
Style
Through feed
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, lamps included, quick disconnect receptacle
Wattage
32W
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent catalog page
IF LBL1404 - Pauluhn Apex Linear Fluorescent
Eaton Specification Sheet - AA44171EM2LQ
Feature → Business Impact → Application: Through-feed design with two NPT hubs simplifies wiring runs and speeds installation, reducing labor time on large deployments and enabling scalable layouts for warehouses or manufacturing floors. Feature → Business Impact → Application: Four-lamp 32W T8 bi-pin configuration delivers higher lumen output per fixture and lower energy use, decreasing total cost of ownership while maintaining visual clarity for detailed assembly lines and KPI-driven environments. Feature → Business Impact → Application: Aluminum housing and acrylic lens provide robust moisture and dust resistance, improving uptime in damp or dirty production areas without frequent replacements. Feature → Business Impact → Application: Emergency battery backup ballast with lamps included ensures illumination during outages, supporting safety and continuity in critical process areas. Feature → Business Impact → Application: Quick-release receptacles and through-feed wiring enable rapid lamp swaps and maintenance, minimizing downtime in shift operations and service windows. Feature → Business Impact → Application: Wide voltage compatibility from 120 to 277 VAC supports multi-site deployments and simplified inventory management across facilities with diverse electrical systems.
Get a Quick Quote for a Eaton AA44171EM2LQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AA44171EM2LQ?
Enquire Now
FAQs
Yes. The AA44171EM2LQ is designed for through-feed installation in ordinary/non-hazardous locations. It uses a 1/2 inch entry with two NPT hubs, supports 120–277 VAC at 50/60 Hz, and comes in a 50.59 inch long, 4-lamp, T8 bi-pin configuration. The rugged aluminum housing and acrylic lens withstand moisture and dust while keeping maintenance straightforward.
Key electrical specs include 32W wattage, 120–277 VAC operation, 50/60 Hz frequency, a 4-lamp, 4-ft length, and IP66 ingress protection. It features a 277V maximum for emergency ballast, through-feed capability, and quick-release wiring. Lamps are included with the unit, simplifying installation and startup.
Yes, the AA44171EM2LQ includes an emergency battery backup ballast with lamps included and a 277V maximum for the backup circuit. This provides illumination during power outages and enhances safety in critical zones. Quick disconnect receptacles also facilitate fast maintenance without extended downtime.
The fixture carries IP66 ingress protection for water and dust resistance and a NEMA 4 enclosure rating for rugged environments. It complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, with 50/60 Hz operation across a 120–277 V range.
Ideal for warehouses, manufacturing floors, and maintenance corridors in non-hazardous areas. The 4-lamp, long-throw output provides high illumination with efficient energy use, while through-feed wiring and quick-release access simplify installation and future lamp swaps, minimizing downtime in production environments.
