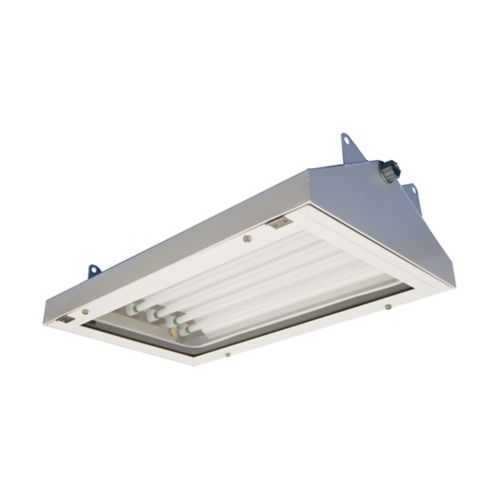

Eaton AA44171LQ Pauluhn Apex AA linear fluorescent light fixture - IP66
Part Number: AA44171LQ
Quick Summary
AA44171LQ is a rugged linear fluorescent light fixture designed for industrial facilities and harsh environments. Maintenance downtime and exposure to dust, moisture, and washdowns can undermine reliability in process and manufacturing floors. It delivers robust protection with IP66 ingress protection, a NEMA 4 enclosure, and NEC/CEC compliance, helping facilities meet safety and code requirements. The through-feed, 1/2" entry design and (2) NPT hubs simplify installation in tight spaces, while lamps are included for immediate operation. Configured as a 4-lamp, 32W, 120–277 Vac, 50/60 Hz T8 bi-pin fixture, it provides predictable brightness and energy efficiency to reduce operating costs.
Product Information
Extended Description
AA44171LQ Eaton: Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,4 ft,Fluorescent,Acrylic lens,T8 bi-pin,Al,4-lamp,Lamps included,quick disconnect receptacle,Through feed,Quick release,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent light fixture
Catalog Number
AA44171LQ
UPC
662276450301
Product Length/Depth
50.59 in
Product Height
6.53 in
Product Width
15.72 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Quick release
Material
Aluminum
Lamp length
4 ft
Number of lamps
4-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
1/2"
Entry type
(2) NPT hubs
Style
Through feed
Lens material
Acrylic
Special features
Lamps included, quick disconnect receptacle
Wattage
32W
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent catalog page
IF LBL1404 - Pauluhn Apex Linear Fluorescent
Eaton Specification Sheet - AA44171LQ
The 1/2" entry with two NPT hubs simplifies field connections, reducing install time and enabling secure, code-compliant through-feed setups in cramped utility rooms and industrial spaces. This configuration supports quick routing of feeders and minimizing conduit complexity, with a clear business impact of faster commissioning and reduced labor costs during maintenance cycles. The 4-lamp, 32W, 4 ft footprint delivers higher center-to-center brightness with uniform illumination, improving worker safety and process visibility in warehouses and manufacturing floors. Lamps included means ready-to-start operation on day one, lowering total cost of ownership and accelerating ROI. IP66 ingress protection and a NEMA 4 enclosure protect against dust and water ingress, extending service life in washdown environments and outdoor-adjacent facilities. The 120–277 Vac, 50/60 Hz power range ensures compatibility with global electrical infrastructures, supporting multi-site deployments with minimal transformers or adapters. Aluminum housing and acrylic lens resist corrosion and impact, maintaining optical performance in demanding environments and reducing replacement intervals.
Get a Quick Quote for a Eaton AA44171LQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AA44171LQ?
Enquire Now
FAQs
AA44171LQ supports through-feed installations with a 1/2" entry and (2) NPT hubs, plus a quick-release design and a quick-disconnect receptacle for fast, secure field connections and reduced commissioning time.
This luminaire runs at 32W, with a voltage range of 120–277 Vac and 50/60 Hz frequency. It is a 4-lamp, 4-ft, T8 bi-pin fixture designed for reliable, multi-site industrial use.
Yes. It is rated for Ordinary/Non-Hazardous Locations, with IP66 ingress protection and a NEMA 4 enclosure, making it appropriate for standard industrial spaces and washdown areas.
The fixture complies with NEC/CEC standards and carries NEMA 4 enclosure rating along with IP66 protection, aligning with typical industrial and building safety requirements.
Lamps are included for immediate start-up, and features like quick-release and quick-disconnect receptacle shorten lamp replacement and servicing times, contributing to lower maintenance labor costs and faster ROI.
