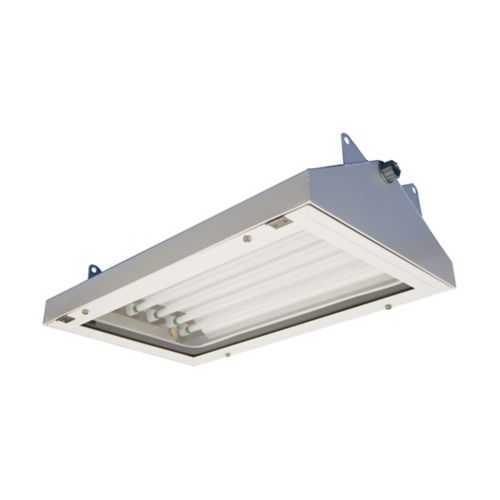

Eaton AA44174LQ Linear Fluorescent Light Fixture - IP66
Part Number: AA44174LQ
Quick Summary
AA44174LQ is a Eaton Crouse-Hinds Pauluhn Apex linear fluorescent fixture delivering durable industrial illumination. In harsh locations with moisture, vibration, or limited access, this fixture minimizes maintenance and downtime. Rated NEMA 4 and IP66 and built to NEC/CEC standards, it supports safe operation in ordinary/non-hazardous locations. With an aluminum housing, acrylic lens, lamps included, and a quick release design, it streamlines installation and lowers total cost of ownership for industrial lighting projects. The fixture's 120–277 Vac input and 50/60 Hz compatibility provide flexibility across different facilities, reducing inventory variety. Its through-feed wiring and two NPT hubs simplify mounting in connected systems, saving installation time on site. This makes it a reliable choice for warehouses, manufacturing floors, and process facilities.
Product Information
Extended Description
AA44174LQ Eaton: Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent light fixture,3/4",(2) NPT hubs,50/60 Hz,4 ft lamp,Acrylic lens,T8 bi-pin,Aluminum,4-lamp,Lamps included,quick disconnect receptacle,Through feed,Quick release,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent light fixture
Catalog Number
AA44174LQ
UPC
662276455771
Product Length/Depth
50.59 in
Product Height
6.53 in
Product Width
15.72 in
Product Weight
33 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Quick release
Material
Aluminum
Lamp length
4 ft
Number of lamps
4-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
3/4"
Entry type
(2) NPT hubs
Style
Through feed
Lens material
Acrylic
Special features
Lamps included, quick disconnect receptacle
Wattage
32W
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent catalog page
IF LBL1404 - Pauluhn Apex Linear Fluorescent
Eaton Specification Sheet - AA44174LQ
The AA44174LQ features a four-lamp 32W T8 fluorescent configuration that delivers bright, uniform output across a 4 ft length, reducing the number of fixtures required to cover large areas and lowering total project costs while maintaining code-compliant illumination. In practice, this means faster installation and easier future maintenance, with lamps included to minimize commissioning delays and stocking complexities. The aluminum housing and acrylic lens combination provides excellent impact and chemical resistance, extending service life in harsh industrial environments and reducing replacement cycles. The through-feed design and two NPT hubs simplify series wiring in retrofit and new-build projects, enabling cleaner cascaded wiring and fewer junction boxes. Quick-release components and a quick-disconnect receptacle speed maintenance and lamp replacement, cutting downtime. Designed for ordinary/non-hazardous locations, it supports compliant installations in manufacturing, warehousing, and light industrial facilities.
Get a Quick Quote for a Eaton AA44174LQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AA44174LQ?
Enquire Now
FAQs
This unit uses a 3/4 entry size with through-feed wiring and two NPT hubs for straightforward ceiling or wall mounting. The quick-release design and quick-disconnect receptacle reduce field downtime, while the 4 ft length and 4-lamp configuration support scalable layouts in warehouses and factories. Ensure proper enclosure rating and compliance with NEC/CEC for ordinary locations.
The fixture operates at 120–277 Vac with a 50/60 Hz frequency, consuming 32W across four lamps. It is designed for broad voltage compatibility to minimize inventory variance and support reliable operation in facilities with variable power inputs or mixed supply lines.
Yes. The Pauluhn Apex AA44174LQ carries IP66 protection and a NEMA 4 rating, making it appropriate for ordinary/non-hazardous locations where dust, water spray, or washdown exposure could occur, while remaining compliant with NEC/CEC standards.
Lamps are included, and the quick-release design plus quick-disconnect receptacle streamline lamp replacement and servicing. The aluminum housing with acrylic lens resists impact and moisture, reducing replacement cycles and downtime in demanding industrial settings.
The AA44174LQ combines a rugged aluminum housing, acrylic lens, and IP66/NEMA 4 protection with through-feed wiring and 2 NPT hubs for scalable, reliable installations. Its 4-lamp, 32W configuration provides efficient illumination with reduced maintenance, making it well-suited for warehouses, manufacturing floors, and process environments.
