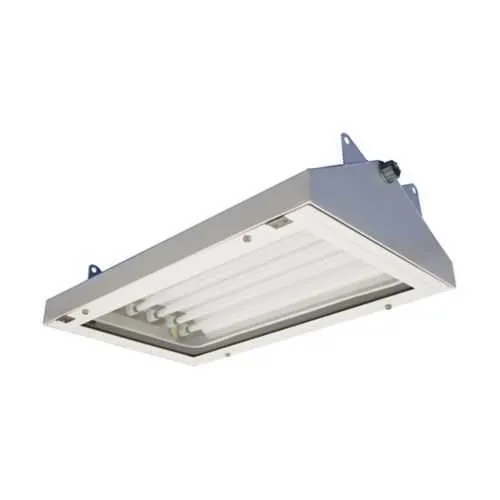

Eaton AAB44171 Linear Fluorescent Light Fixture - IP66
Part Number: AAB44171
Quick Summary
The Eaton AAB44171 Linear Fluorescent Light Fixture delivers reliable illumination for industrial facilities. In harsh industrial environments, maintenance cycles and energy costs frequently erode uptime and profitability. This luminaire meets NEC/CEC standards with a NEMA 4 rating and IP66 ingress protection, ensuring safe operation in wet or dusty locations. With an aluminum housing, acrylic lens, and a 4-lamp 32W configuration designed for 120–277 VAC at 50/60 Hz, it supports easy retrofit and long service life, while bolted-door access simplifies maintenance. This combination helps facilities meet uptime targets and reduce total cost of ownership.
Product Information
Extended Description
AAB44171 Eaton: Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T8 bi-pin,Aluminum,4-lamp,Through feed,Bolted door,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex AA linear fluorescent light fixture
Catalog Number
AAB44171
UPC
662276373693
Product Length/Depth
50.59 in
Product Height
6.53 in
Product Width
15.72 in
Product Weight
33 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
Aluminum
Lamp length
4 ft
Number of lamps
4-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
1/2"
Entry type
(2) NPT hubs
Style
Through feed
Lens material
Acrylic
Wattage
32W
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent catalog page
IF LBL1404 - Pauluhn Apex Linear Fluorescent
Eaton Specification Sheet - AAB44171
Feature IP66 and NEMA 4 enclosure protection. Business Impact Protects against dust, moisture and washdown exposure, minimizing unplanned downtime and maintenance costs. Application Ideal for washdown areas, damp plant rooms, and outdoor-adjacent spaces where environmental ingress is a concern. Feature Through-feed capability with two 1/2 inch NPT hubs. Business Impact Flexible conduit routing and easy future upgrades reduce installation time and field modification costs. Application Retrofit projects and new builds requiring robust electrical access. Feature 4-lamp 32W configuration with T8 bi-pin lamps. Business Impact Delivers adequate lumen output with moderate energy use, lowering operating costs and helping meet energy codes. Application Long‑haul factory bays and assembly lines needing consistent illumination. Feature Aluminum housing with acrylic lens. Business Impact Durable, corrosion-resistant construction extends service life and reduces lens-impact damage risk. Application Harsh environments such as chemical processing, outdoor staging, or humid facilities. Feature Voltage range 120–277 VAC at 50/60 Hz. Business Impact Flexible power compatibility simplifies multi-site deployments and inventory management. Application Global facilities with varied electrical infrastructure.
Get a Quick Quote for a Eaton AAB44171
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AAB44171?
Enquire Now
FAQs
The AAB44171 supports through-feed mounting with two 1/2 inch NPT hubs and a bolted-door access, allowing seamless conduit routing and fast service access. Its 50/60 Hz operation across 120–277 VAC enables flexible integration across multi-site facilities without costly rewiring.
Key specs include four fluorescent lamps at 32W total per luminaire, T8 bi-pin lamps, 50/60 Hz operation, 120–277 VAC voltage rating, an overall length of 50.59 in, width 15.72 in, height 6.53 in, and a weight of 33 lb for robust installations.
Yes. The fixture carries area classification Ordinary/Non-Hazardous Locations, and its NEMA 4 and IP66 ratings provide protection against dust and water ingress, making it suitable for dry, damp, and wet areas within standard industrial facilities.
The AAB44171 adheres to NEC/CEC standards, with NEMA 4 enclosure and IP66 protection. These certifications ensure compliance for safety and performance in industrial environments, particularly in areas requiring protection from moisture and particulate matter.
Maintenance benefits include bolted-door access for quick lamp changes, durable aluminum housing, and acrylic lens that resist impact. The 4-lamp, 32W configuration reduces frequency of replacements while maintaining lighting levels, contributing to lower maintenance labor costs and favorable return on investment over time.
