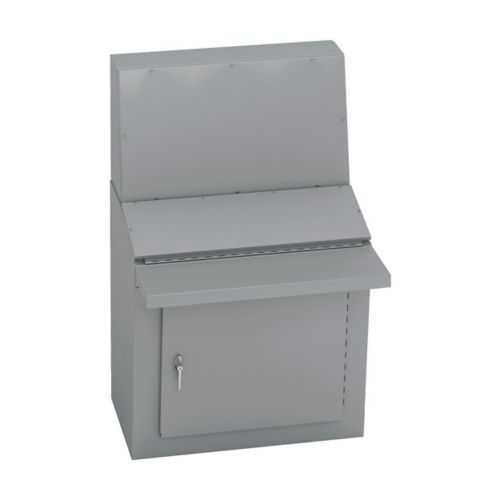

Eaton AC-1224B Console Enclosure - NEMA 12, Carbon Steel
Part Number: AC-1224B
Quick Summary
Eaton AC-1224B console enclosure is a rugged housing solution designed to shield control panels in demanding industrial environments. This enclosure delivers reliable protection for electrical components while simplifying service access. Engineers often struggle with mismatched fit, inadequate sealing, and costly downtime; AC-1224B addresses those concerns with a 36 in high, 24 in wide frame and a hinged cover for quick maintenance. The unit carries UL 508A, CSA C22.2, and NEMA ratings, aligning with common industry requirements for indoor, dry applications and chemical resistance. By combining a carbon steel body with a 14 gauge wall and oil-resistant gasket, it balances durability, safety, and cost. This translates to lower lifecycle costs and faster panel assembly.
Product Information
Extended Description
AC-1224B Eaton: Eaton B-Line series console enclosures and accessories, 36" height, 24" length, 24" width, NEMA 12, Hinged cover, AC-12 console, Ground mount, Medium single door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1224B
UPC
782051425000
Product Length/Depth
24 in
Product Height
36 in
Product Width
24 in
Product Weight
119.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC-12 console
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key locking
Closure type
Hinged
Special features
3-pt latching handle, plated screws
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: The AC-1224B uses a robust carbon steel body with a 14 gauge wall and painted ANSI 61 gray finish, delivering structural integrity and durable aesthetics in harsh plant environments, reducing corrosion risk and maintenance downtime. This translates to longer service intervals and lower total cost of ownership when deployed on manufacturing lines or process control areas. Feature → Business Impact → Application: 36 in height, 24 in length, and 24 in width provide ample internal space for standard control panels while maintaining floor-space efficiency; ideal for compact electrical rooms and machine control cabinets, enabling easier component mounting and service access. Feature → Business Impact → Application: Hinged cover with 3-pt latching handle and key locking improves security and quick access during shifts, minimizing unauthorized entry and speeding safe maintenance. Feature → Business Impact → Application: Oil-resistant gasket and NEMA 12 rating ensure protection against dust, light splashes, and incidental oils common in industrial environments, supporting compliance and reducing enclosure failures. Feature → Business Impact → Application: Ground mounting and the lack of mounting provisions offer straightforward installation options for floor-based enclosures adjacent to equipment racks or along production lines, improving installation efficiency and reducing mounting hardware costs. Feature → Business Impact → Application: UL 508A and CSA C22.2 listings provide regulatory assurance for electrical panels, helping avoid compliance risks during audits and project handoffs in automotive, packaging, or food & beverage facilities.
Get a Quick Quote for a Eaton AC-1224B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1224B?
Enquire Now
FAQs
The AC-1224B is designed for ground mounting, offering a stable base for floor installations. It does not include mounting provisions for wall mounting, so facilities should plan for a dedicated floor space or freestanding setup. This approach simplifies alignment with nearby equipment and electrical panels while maintaining service access for routine maintenance.
Yes. The enclosure features an oil-resistant gasket and a carbon steel body with a painted finish, providing resistance to incidental oils and typical workshop contaminants. This combination supports longer service life in machine shops, auto facilities, and packaging lines where incidental spills may occur.
The AC-1224B carries UL 508A and CSA C22.2 certifications along with a NEMA rating of 12. These certifications verify electrical safety, compliance with regional standards, and suitability for indoor, dry environments. They matter for regulatory approvals, customer audits, and ensuring reliability in critical control applications.
The enclosure measures 36 inches in height, 24 inches in width, and 24 inches in depth, with a weight of approximately 119.3 pounds. This size supports typical 19-inch rack-mount or panel-mounted configurations while remaining manageable for installation and service access within industrial spaces.
AC-1224B includes a hinged closure with a 3-point latching handle and key locking, providing secure access control for authorized personnel. This arrangement minimizes tampering risk and streamlines safe maintenance workflows, especially in environments with multiple operators and shift changes.
