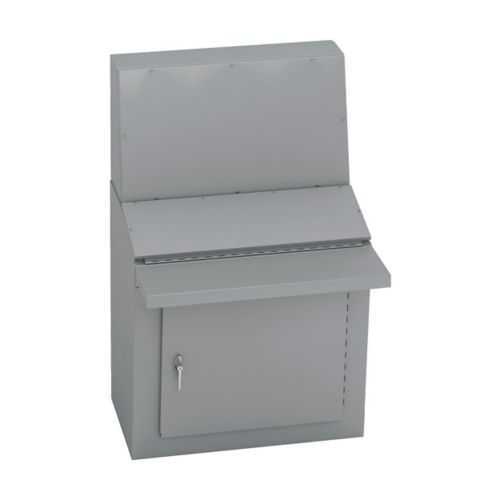

Eaton AC-1224W Console Enclosure - NEMA 12 CSA
Part Number: AC-1224W
Quick Summary
AC-1224W is a console enclosure designed to organize and protect control panels in harsh industrial environments. It helps engineers reduce crowded wiring, minimize maintenance time, and improve operator safety by keeping critical components shielded from dust, moisture, and accidental contact. The enclosure carries CSA certification and is rated for NEMA 12 protection, aligning with Type-12-AW-12 console configurations for dependable service. By selecting this Eaton B-Line accessory, facilities gain a compact footprint, easier installation, and consistent finishes that match other enclosures, supporting collaborations between electrical, automation, and maintenance teams. This product also integrates well with AC-1224B top assemblies and a broad range of B-Line accessories, delivering value across installation, operation, and service stages.
Product Information
Extended Description
AC-1224W Eaton: Eaton B-Line series console enclosures and accessories, NEMA 12, White enamel, Type-12-AW-12 Console, Used with (AC-1224B), Top assembly
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1224W
UPC
782051425048
Product Length/Depth
26.87 in
Product Height
26.87 in
Product Width
16.87 in
Product Weight
8.254 lb
Certifications
CSA
Finish color
White enamel
Special features
Used with (AC-1224B)
Type
Type-12-AW-12 Console
Degree of protection
NEMA 12
Protection and compatibility: NEMA 12 protection and Type-12-AW-12 compatibility safeguard sensitive controls from dust, moisture, and incidental contact. The result is fewer field failures and longer service intervals, reducing maintenance costs in factories, water treatment plants, and packaging lines where harsh conditions prevail. This makes the AC-1224W ideal for control panels that require reliable enclosure protection while preserving easy access to wiring for routine servicing. Finish and durability: White enamel finish provides corrosion resistance and a clean, professional appearance that lasts in harsh environments. This reduces repaint cycles and simplifies compliance with cleanliness standards on production floors, while matching other B-Line enclosures. The result is cost savings over time and a cohesive plant-wide visual system for technicians and auditors. Footprint and handling: With 26.87 in height and depth and a 16.87 in width, the AC-1224W fits tight wall spaces and crowded corners, while its 8.254 lb weight eases handling and mounting. This leads to faster installation, reduced labor costs, and flexible placement across multiple lines, including retrofit projects. Regulatory alignment: CSA certification signals compliance with recognized safety standards, easing approvals in regulated facilities. Combined with the NEMA 12 protection rating, it supports audits and reduces the risk of non-conformance during plant inspections, while supporting procurement requirements for electrical infrastructure projects. Modular integration: Top assembly compatibility with AC-1224B enables modular upgrades and streamlined cabling management, reducing downtime during service and simplifying spare-part inventories. This aligns with lean maintenance practices and rapid changeovers on manufacturing lines, while preserving a consistent enclosure ecosystem across the B-Line family.
Get a Quick Quote for a Eaton AC-1224W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1224W?
Enquire Now
FAQs
AC-1224W is part of Eaton's B-Line series console enclosures and accessories and is designed to work with the AC-1224B top assembly. It supports Type-12-AW-12 console configurations and pairs with compatible B-Line accessories to organize wiring, mounting hardware, and panels in protected spaces. This compatibility makes retrofits and upgrades straightforward across multiple lines.
The AC-1224W measures 26.87 inches in height and depth, 16.87 inches in width, and weighs 8.254 pounds. These compact dimensions support installation in tight spaces, while the light weight simplifies handling during shipment, site installation, and periodic repositioning on the factory floor.
Yes. The AC-1224W carries CSA certification, reinforcing safety and regulatory compliance for electrical enclosures. It also features a NEMA 12 protection rating, which provides dust and moisture resistance suitable for harsh industrial environments.
AC-1224W is designed for wall-mount installations and works seamlessly with the AC-1224B top assembly. When planning mounting, consider available wall clearance, wiring access, and ventilation. Its dimensions and weight support straightforward installation with standard enclosure hardware, reducing service downtime during maintenance or upgrades.
Choosing AC-1224W provides robust NEMA 12 protection, a durable white enamel finish, CSA certification, and Type-12-AW-12 console compatibility. Its compact footprint and compatibility with B-Line accessories enable streamlined wiring management, easier upgrades, and consistent aesthetics across the plant, delivering reliable protection and lower total cost of ownership over the enclosure’s life cycle.
