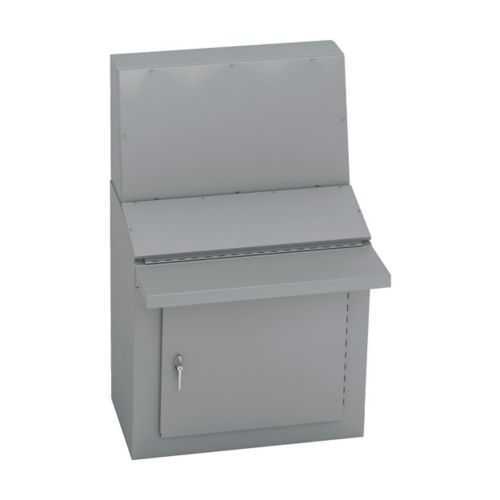

Eaton AC-1236B Console Enclosure - Ground Mount, NEMA 12
Part Number: AC-1236B
Quick Summary
The Eaton AC-1236B Console Enclosure protects electrical controls in industrial cabinets and data centers. Engineers often face rust, gasket degradation, and installation hurdles that drive downtime and maintenance costs. This enclosure carries UL 508A and CSA C22.2 listings and adheres to NEMA 12 protection, enhancing reliability in harsh environments. Designed for the Eaton B-Line ecosystem, it supports robust ground mounting, easy service access, and long-term lifecycle cost reductions, making it a practical choice for control panels, automation cabinets, and energy-management infrastructure.
Product Information
Extended Description
AC-1236B Eaton: Eaton B-Line series console enclosures and accessories, 36" height, 24" length, 36" width, NEMA 12, Hinged cover, AC-12 console, Ground mount, Medium single door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1236B
UPC
782051425062
Product Length/Depth
24 in
Product Height
36 in
Product Width
36 in
Product Weight
157.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC-12 console
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key locking
Closure type
Hinged
Special features
3-pt latching handle, plated screws
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: The carbon steel construction with a 14 gauge wall delivers structural integrity, reducing risk of panel damage in busy, vibration-prone environments while supporting long service life in manufacturing lines. This translates to lower replacement frequency and safer operations for machine builders and facilities teams deploying in air-conditioned or oily atmospheres. Feature → Business Impact → Application: A hinged, three-point latching handle with plated screws improves user access control and seal integrity during routine maintenance, delivering faster panel servicing and consistent enclosure performance in control rooms and harsh plant floors. Feature → Business Impact → Application: The oil-resistant gasket and painted ANSI 61 gray finish provide superior moisture and chemical resistance, boosting reliability in wash-down zones and chemical processing lines while keeping aesthetics aligned with industrial standards. Feature → Business Impact → Application: Ground mounting with no mounting provisions simplifies initial installation and future relocations, reducing installation time, labor costs, and downtime during system upgrades in data centers and OEM facilities. Feature → Business Impact → Application: The 36" x 36" x 24" footprint and 157.1 lb weight balance space for control hardware, cabling, and cable management, enabling scalable configurations for motor drives, PLCs, and I/O modules in automation cabinets. Feature → Business Impact → Application: UL 508A and CSA C22.2 certifications, plus NEMA 12 rating, assure compliance and protection for critical equipment, minimizing regulatory risk and accelerating procurement for energy, utility, and food-and-beverage facilities. Feature → Business Impact → Application: Compatibility with Eaton B-Line series enclosures and accessories offers a proven ecosystem, enabling modular upgrades and consistent aesthetics across multiple control environments while supporting standard mounting patterns for ease of integration.
Get a Quick Quote for a Eaton AC-1236B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1236B?
Enquire Now
FAQs
AC-1236B is designed for ground mounting with no internal mounting provisions. Its sturdy 14 gauge carbon steel body supports secure floor installation and stable operation in demanding environments, reducing vibration-related issues and simplifying integration with floor-mounted equipment.
The enclosure provides a 24 in depth (length/depth), 36 in height, and 36 in width, with an approximate weight of 157.1 lb. These dimensions accommodate typical control panels, PLCs, and drive assemblies while allowing space for cabling and field wiring.
Yes. The AC-1236B carries UL 508A and CSA C22.2 listings and supports NEMA 12 protection, ensuring electrical safety, regulatory compliance, and rated protection in industrial environments.
Ideal for industrial automation, process control, and energy-management cabinets, the AC-1236B supports control panels, motor drives, and PLC assemblies in environments requiring durable corrosion resistance, secure locking, and reliable ingress protection.
Key locking, hinged closure, oil-resistant gasket, and ANSI 61 gray painted finish protect against unauthorized access and environmental ingress, while a three-point latching mechanism ensures a tight seal—minimizing maintenance and extending service intervals.
