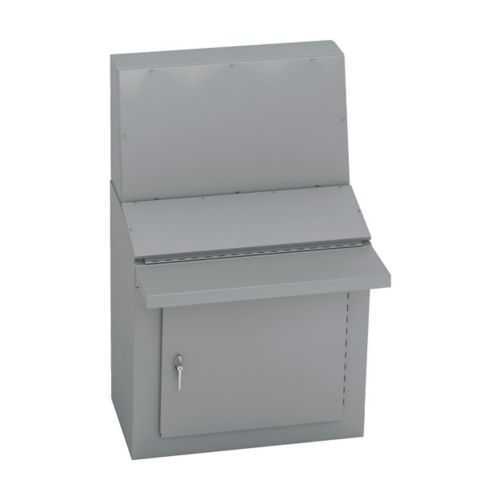

Eaton AC-1236W Console Enclosures - NEMA 12 CSA
Part Number: AC-1236W
Quick Summary
The Eaton AC-1236W console enclosures deliver rugged, reliable housing for industrial control panels. Designers often contend with tight footprints, corrosion exposure, and inconsistent mounting fit when expanding control systems. This enclosure carries CSA certification and a NEMA 12 rating, reinforcing protection in dusty or damp environments, while its Type-12-AW-12 designation signals a sealed, serviceable console solution. Built to pair with AC-1236B accessories, it streamlines procurement and installation within the B-Line series. For engineers and procurement teams, AC-1236W delivers predictable lead times, improved service life, and lower lifecycle costs by reducing field modifications and maintenance overhead. With its white enamel finish and standardized 26.87 inch footprint, it supports fast, compliant panel builds.
Product Information
Extended Description
AC-1236W Eaton: Eaton B-Line series console enclosures and accessories, NEMA 12, White enamel, Type-12-AW-12 Console, Used with (AC-1236B), Top assembly
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1236W
UPC
782051425109
Product Length/Depth
26.87 in
Product Height
26.87 in
Product Width
26.87 in
Product Weight
11.988 lb
Certifications
CSA
Finish color
White enamel
Special features
Used with (AC-1236B)
Type
Type-12-AW-12 Console
Degree of protection
NEMA 12
Feature: NEMA 12 protection provides dust and moisture resistance. Benefit: reduces component wear and unplanned downtime in harsh environments. Application: ideal for control panels in manufacturing floors and process plants where exposure is common. Feature: Type-12-AW-12 console design and compatibility with top assembly. Benefit: enables modular upgrades with AC-1236B accessories, shortening install times and minimizing field engineering. Application: retrofit or new builds within the Eaton B-Line family for scalable enclosures. Feature: White enamel finish. Benefit: enhanced corrosion resistance and easier cleaning in washdown and industrial settings. Application: environments requiring durable aesthetics and long-term surface integrity. Feature: Large footprint with 26.87 in dimensions. Benefit: accommodates substantial control components and cable management without crowding. Application: panel builds where space planning and layout efficiency are critical. Feature: CSA certification and NEMA 12 rating. Benefit: strengthens regulatory compliance and protects investments against environmental hazards. Application: North American installations with strict safety and enclosure standards. Feature: 11.988 lb weight and balanced form factor. Benefit: simplifies installation and reduces handling risk during assembly. Application: on-site deployment by technicians and contractors in constrained spaces.
Get a Quick Quote for a Eaton AC-1236W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1236W?
Enquire Now
FAQs
AC-1236W is designed to pair with AC-1236B accessories within the Eaton B-Line series. The Type-12-AW-12 console and top assembly are compatible with the B-Line architecture, ensuring modular upgrades and straightforward mounting. When planning a retrofit, verify rack footprint, mounting hole patterns, and any accessory alignment to avoid field modifications and to maintain NEMA 12 integrity.
The NEMA 12 rating indicates enclosure protection against dust, falling dirt, and non-hazardous moisture. This reduces ingress of contaminants that can degrade relays, terminals, and control electronics, thereby improving reliability and reducing maintenance cycles. For installations near machining, grinding, or dusty processes, this rating supports longer service life and stable performance.
Yes. AC-1236W is designed for robust control panel environments common in manufacturing and processing facilities. Its 26.87 in footprint accommodates substantial components, while the white enamel finish adds corrosion resistance. The enclosure is well-suited for layouts requiring a reliable, standardized console with easy accessory integration from the B-Line family.
AC-1236W carries CSA certification and a NEMA 12 protection rating. CSA certification demonstrates compliance with recognized safety standards in North America, while NEMA 12 confirms dust and moisture protection for general industrial environments. Together, these certifications support regulatory alignment and safer, more dependable panel installations.
The CSA/NEMA-rated design minimizes unexpected outages from environment-driven failures, reducing maintenance labor and spare parts consumption. Standardized dimensions and compatibility with AC-1236B accessories shorten installation time, lowering total cost of ownership. Over the lifecycle, users typically see improved uptime, easier upgrades, and predictable procurement when using the Eaton B-Line console ecosystem.
