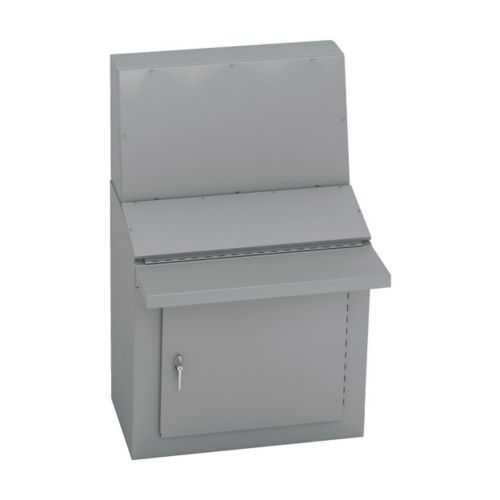

Eaton AC-1248B Console Enclosures and Accessories - NEMA 12
Part Number: AC-1248B
Quick Summary
AC-1248B console enclosure protects electrical gear while enabling organized control-room installations. In practice, engineers face crowded panels, corrosion risk, and non-compliant enclosures that slow installs. UL 508A, CSA C22.2, and NEMA 12 ratings ensure electrical safety, regulatory compliance, and reliability in industrial environments. This solution integrates seamlessly with the Eaton B-Line series, offering robust carbon steel construction and a hinged cover for secure access, while supporting ground mounting and long-term lifecycle cost savings. Its 36 by 36 by 24 inch footprint optimizes panel density in compact electrical rooms. Designed for uptime, the enclosure's oil-resistant gasket and durable ANSI 61 gray finish resist everyday factory exposure.
Product Information
Extended Description
AC-1248B Eaton: Eaton B-Line series console enclosures and accessories, 36" height, 24" length, 36" width, NEMA 12, Hinged cover, AC-12 console, Ground mount, Medium double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1248B
UPC
782051425123
Product Length/Depth
24 in
Product Height
36 in
Product Width
36 in
Product Weight
200.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium double door
Model
AC-12 console
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key locking
Closure type
Hinged
Special features
3-pt latching handle, plated screws
NEMA Rating
12
Country of origin
US
Feature: Durable carbon steel construction with 14 gauge wall thickness. Business Impact: Provides superior mechanical protection against impact, corrosion, and dust ingress, reducing panel damage and downtime. Application: Ideal for manufacturing floors and machine cells where rugged enclosure performance is required. Feature: Exacting dimensions of 24 inch depth and 36 by 36 inch footprint. Business Impact: Maximizes usable interior space for controls while maintaining a compact external footprint, enabling flexible panel layouts. Application: Control panels in space-constrained electrical rooms benefit from predictable fit and mounting compatibility. Feature: NEMA 12 rating with UL 508A and CSA C22.2 certifications. Business Impact: Delivers certified safety and regulatory compliance, mitigating risk and expediting audits. Application: Indoor industrial environments demanding reliable enclosure protection for electrical assemblies. Feature: Hinged cover with 3-pt latching handle and plated screws. Business Impact: Improves secure access during maintenance cycles and extends service life with reliable seal integrity. Application: Routine inspections and panel upgrades in process and manufacturing facilities. Feature: Ground mounting method with oil-resistant gasket and ANSI 61 gray painted finish. Business Impact: Stable installation and environmental protection against oils and splashes, lowering maintenance costs. Application: Floor-mounted control panels in oil-prone areas; easy cleaning and low upkeep. Feature: Weight of approximately 200.1 lb signals robust construction capable of supporting interior components without flex or misalignment. Business Impact: Reduces vibration-related wear and simplifies mounting of heavy controls. Application: Heavy-duty industrial panels on production lines requiring dependable rigidity.
Get a Quick Quote for a Eaton AC-1248B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1248B?
Enquire Now
FAQs
AC-1248B is designed for ground mounting, providing a stable base for heavy control panels in indoor facilities. Note that the unit features no internal mounting provisions for equipment and cables; external mounting accessories or base frames are often used to anchor components. This setup minimizes vibration, improves serviceability, and supports long-term reliability on the shop floor.
AC-1248B carries UL 508A and CSA C22.2 listings with a NEMA 12 rating. UL 508A confirms electrical safety for industrial control panels, CSA C22.2 ensures compliance with Canadian standards, and NEMA 12 signifies protection against dust, light oil, and water ingress in indoor environments. Together they support regulatory compliance and safer operation of indoor control enclosures.
AC-1248B is designed for indoor use with a NEMA 12 protection level. It features a painted ANSI 61 gray finish and an oil-resistant gasket, which improves resistance to oil exposure. However, it is not rated for outdoor weather exposure or harsh corrosive environments without additional protective measures or enclosure upgrades.
The AC-1248B integrates with the broader Eaton B-Line console enclosures and accessories ecosystem, including hinged covers, key-locking provisions, and 3-pt latching handles with plated screws for secure access. For enhanced installation, pair with compatible base frames or mounting hardware designed for ground-mount configurations and system-wide panel integration.
The enclosure's 14 gauge carbon steel construction, oil-resistant gasket, and robust hinge/lock system deliver durable protection and long service life, reducing unscheduled maintenance and panel damage. UL/CSA certifications streamline compliance audits, while a stable ground-mount design lowers installation time and lifecycle costs by minimizing panel damage and downtime in busy production environments.
