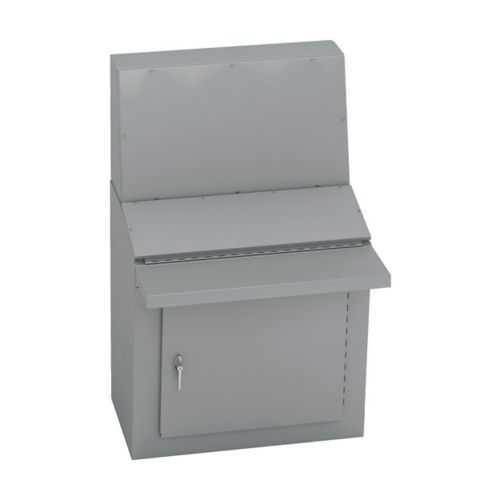

Eaton AC-1248T Console Enclosure - Type-12 NEMA 12
Part Number: AC-1248T
Quick Summary
AC-1248T console enclosure from Eaton protects electrical assemblies in industrial control panels. This rugged enclosure provides a durable housing for critical components in challenging indoor environments, helping to minimize unplanned downtime. It carries CSA certification and a NEMA 12 protection rating, with an ANSI 61 gray polyester powder finish that resists corrosion and wear. Designed to work with the AC-1248B top assembly, it integrates seamlessly with Eaton’s B-Line series accessories for scalable panel infrastructure. For engineers and procurement teams, the combination of specs and compatibility translates to faster installation, consistent performance, and lower lifecycle costs in your plant floor automation projects.
Product Information
Extended Description
AC-1248T Eaton: Eaton B-Line series console enclosures and accessories, NEMA 12, ANSI 61 gray polyester powder finish, Type-12-AW-12 Console, Used with (AC-1248B), Top assembly
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1248T
UPC
782051425161
Product Length/Depth
26.87 in
Product Height
26.87 in
Product Width
38.87 in
Product Weight
76.824 lb
Certifications
CSA
Finish color
ANSI 61 gray painted
Special features
Used with (AC-1248B)
Type
Type-12-AW-12 Console
Degree of protection
NEMA 12
Type-12-AW-12 protection delivers robust dust and moisture resistance, reducing field failures and maintenance overhead while safeguarding sensitive control hardware in indoor industrial settings. This translates to improved uptime and predictable performance for automated lines and process control panels. The ANSI 61 gray powder-coated finish adds corrosion resistance, extending service life and reducing repaint cycles in environments with handling and temperature variation. With dimensions of 26.87 inches in length/depth, 26.87 inches in height, and 38.87 inches in width, the AC-1248T offers a compact yet roomy enclosure that fits standard components and backplanes, simplifying installation and enabling faster panel assembly. The unit’s 76.824-pound weight provides rigidity and vibration resistance during operation and transport, reducing the risk of misalignment and wear. Compatibility with the AC-1248B top assembly and broader B-Line accessories minimizes customization, enabling scalable enclosure solutions and consistent spare-part strategies across facilities. CSA certification reinforces regulatory compliance for industrial enclosures while supporting safe, long-term operation in regulated environments.
Get a Quick Quote for a Eaton AC-1248T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1248T?
Enquire Now
FAQs
The AC-1248T is designed to work with the AC-1248B top assembly and other Eaton B-Line accessories. Installation involves securing the enclosure to a panel or mounting frame, aligning the top assembly, and attaching internal components using standard backplanes. The Type-12-AW-12 configuration supports common control hardware while maintaining NEMA 12 protection, simplifying retrofit or upfit projects.
NEMA 12 protection indicates the enclosure is designed for indoor use to provide protection against dust, falling water, and light splash. For the AC-1248T, this means enhanced reliability of control equipment in manufacturing and processing environments, reduced ingress-related failures, and a lower likelihood of corrosive damage when paired with the ANSI 61 gray finish and CSA-certified construction.
Yes, the AC-1248T carries CSA certification, confirming compliance with recognized safety and performance standards. Combined with NEMA 12 protection and the Type-12-AW-12 configuration, it is well-suited for regulated industrial environments that require proven enclosures for electrical and automation panels.
The AC-1248T measures 26.87 inches in length/depth and height, with a width of 38.87 inches, and weighs 76.824 pounds. These dimensions support a compact footprint while providing sufficient internal space for standard control components. The weight and size necessitate proper lifting and mounting considerations but ensure a rigid, stable enclosure for long-term operation.
Plan for compatibility with the AC-1248B top assembly and other B-Line series accessories to enable scalable panel infrastructure. The enclosure is designed for easy integration with Eaton’s accessory ecosystem, which helps streamline upgrades, simplify spare parts management, and maintain consistency across multiple panels or facilities.
