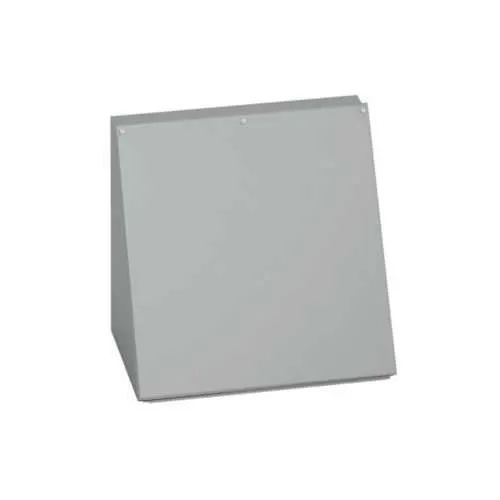

Eaton AC-12C16 Enclosures - NEMA 12 UL 508A, Hinged
Part Number: AC-12C16
Quick Summary
The Eaton AC-12C16 enclosures protect control panels and electrical assemblies in industrial environments. Widespread dust, moisture, and mounting misalignment can undermine uptime, safety, and mean costly downtime. UL 508A and CSA C22.2 certifications back panel safety, while a NEMA 12 rating delivers solid dust and water ingress protection for indoor, non-harsh environments. Designed for surface mounting with external feet and a continuous hinged cover, they speed installation and service access. With a durable carbon steel shell, a 14 gauge wall, and ANSI 61 gray paint, the enclosure resists wear in busy facilities. For engineers and procurement teams, this elevates reliability without sacrificing compatibility with Eaton’s B-Line family and common industrial control components, driving predictable performance across automation lines.
Product Information
Extended Description
AC-12C16 Eaton: Eaton B-Line series consolet enclosures, 12" height, 9.12" length, 16" width, NEMA 12, Hinged cover, AC concolet, Surface mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-12C16
UPC
782051410020
Product Length/Depth
9.12 in
Product Height
12 in
Product Width
16 in
Product Weight
16.5 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: Rugged carbon steel construction with 14 gauge wall and ANSI 61 gray paint. Business Impact: Delivers durable protection against mechanical impacts, reduces repainting and corrosion-related downtime, and extends service life in busy industrial environments. Application: Ideal for mid-size control panels in manufacturing and packaging lines seeking reliable protection without extra enclosure weight. Feature: Compact 12" height x 16" width x 9.12" depth footprint and 16.5 lb weight. Business Impact: Optimizes space on crowded panels and simplifies installation in existing racks or enclosures. Application: Surface-mounted installations where footprint is a constraint, such as machine control stations or panel boards. Feature: NEMA 12 rated with oil-resistant gasket and hinged cover. Business Impact: Shields electronics from dust, grime, and incidental oil exposure, lowering maintenance cycles and protecting sensitive components. Application: Indoor process areas with moderate tolerance for moisture and oil splash. Feature: Surface mounting with external mounting feet and continuous hinge. Business Impact: Fast, repeatable installation and easy access for maintenance without removing the enclosure from the panel. Application: Environments requiring quick service access to controllers, relays, and terminal blocks. Feature: Hinged cover and plated screws; robust closure type. Business Impact: Improves long-term serviceability and corrosion resistance at fastener points, reducing replacement costs. Application: Frequent door opening for testing or updates in automation lines. Feature: Certifications and standards UL 508A, CSA C22.2, NEMA Rating 12. Compatibility: Seamlessly integrates with Eaton’s B-Line series and common control components, supporting scalable configurations and future upgrades.
Get a Quick Quote for a Eaton AC-12C16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-12C16?
Enquire Now
FAQs
Mounting is designed for surface installation using the external mounting feet. Align the enclosure with your panel cutout, secure through the feet with appropriate fasteners, and verify level. The continuous hinge allows quick access without removing the enclosure, reducing downtime during commissioning and maintenance.
External dimensions are 12 in height, 16 in width, and 9.12 in depth, with a 16.5 lb weight. It’s compatible with Eaton’s B-Line series accessories and standard control components, enabling scalable panel assemblies and straightforward retrofits.
The enclosure carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating, confirming safe electrical protection and compliance for indoor industrial environments where dust and light moisture exposure may occur.
Yes, the AC-12C16 features an oil-resistant gasket in a carbon steel shell with a hinged cover, offering protection against oil splash and contaminants typically encountered in machine rooms and process areas.
The continuous hinged cover enables fast access for inspections and updates, reducing labor costs. Durable powder-coated finish and robust gasketing minimize corrosion and ingress over time, lowering maintenance frequency and extending asset life in automation applications.
