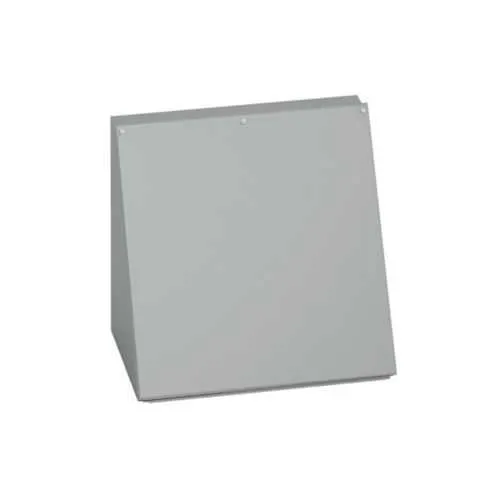

Eaton AC-12C20 Consolet Enclosures - NEMA 12
Part Number: AC-12C20
Quick Summary
Eaton AC-12C20 Consolet Enclosures are rugged, surface-mounted housings designed to protect control panels and electrical components in demanding industrial environments. This enclosure addresses common maintenance challenges by shielding sensitive gear from dust, oil and impact while providing easy access via a hinged cover. With UL 508A and CSA C22.2 certifications and a NEMA 12 rating, it aligns with electrical safety and enclosure standards. The B-Line series combines durable carbon steel construction with a 14-gauge wall and an oil-resistant gasket, delivering long service life in harsh facilities. Choosing this enclosure supports reliable uptime, streamlined installation, and scalable infrastructure for growing automation projects.
Product Information
Extended Description
AC-12C20 Eaton: Eaton B-Line series consolet enclosures, 12" height, 9.12" length, 16" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-12C20
UPC
782051410044
Product Length/Depth
9.12 in
Product Height
12 in
Product Width
16 in
Product Weight
19.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: Carbon steel construction with a 14 gauge wall thickness provides robust mechanical protection. Business Impact: Improves durability and reduces replacement costs in high-traffic industrial areas. Application: Factory floors, machine rooms, and electrical closets that require reliable enclosure integrity. Feature: NEMA 12 rating combined with an oil-resistant gasket offers dust and splash protection. Business Impact: Minimizes ingress and maintenance downtime, lowering total cost of ownership. Application: Enclosures near lubricants, coolants, and particulate-heavy processes. Feature: Hinged cover with continuous hinge enables effortless, tool-free access. Business Impact: Faster diagnostics and servicing, improving maintenance efficiency by reducing typical access time. Application: Control panels that require frequent wiring changes or upgrades. Feature: External mounting feet and surface-mount capability simplify installation and retrofit. Business Impact: Reduces installation time and allows flexible positioning in crowded panels or limited spaces. Application: Retrofit projects or new builds where mounting constraints exist. Feature: Painted ANSI 61 gray finish and overall form factor match standard industrial aesthetics and corrosion considerations. Business Impact: Uniform appearance and predictable maintenance cycles across multiple enclosures. Application: OEMs and facilities with standardized control architecture and modular installations.
Get a Quick Quote for a Eaton AC-12C20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-12C20?
Enquire Now
FAQs
The AC-12C20 is designed for surface mounting with external mounting feet. To install, position the enclosure to allow hinge clearance, secure it with appropriate fasteners, and route cables through standard entry points. Ensure the oil-resistant gasket seats correctly to maintain the NEMA 12 rating and seal against dust and incidental splashes.
The AC-12C20 carries UL 508A and CSA C22.2 certifications alongside a NEMA 12 rating. These indicate compliance for electrical enclosures in industrial settings, ensuring safety, reliability, and compatibility with standard electrical components. They support regulatory approvals, streamlined procurement, and consistent performance in controlled environments.
Yes. With a NEMA 12 rating and an oil-resistant gasket, the enclosure provides protection against dust, non-corrosive liquids, and light splashes. Its carbon steel 14-gauge body offers rugged protection for control panels operating near lubricants, coolants, and particulate matter typical in manufacturing environments.
The enclosure measures 12 inches in height, 16 inches in width, and 9.12 inches in depth, with a mass of approximately 19.7 pounds. These dimensions facilitate layout planning, mounting clearances, and interconnection with other panel components in compact automation cells.
Choosing Eaton B-Line consolet enclosures delivers durable protection, faster maintenance access via hinged covers, and standardized, scalable housing for automation equipment. The combination of UL/CSA compliance, NEMA 12 protection, and compatible mounting features reduces downtime, streamlines deployment, and supports long-term ROI in medium to high-usage industrial environments.
