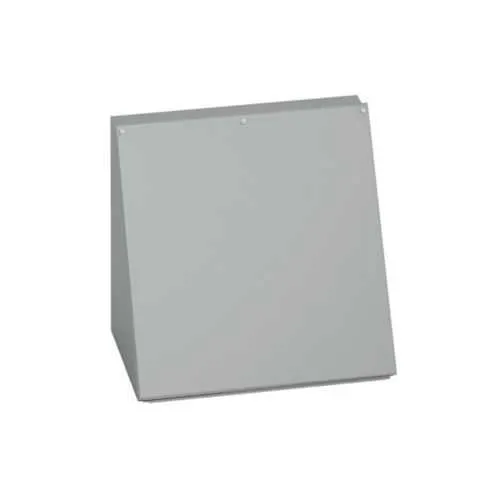

Eaton AC-12C24 Enclosures - Surface Mount, NEMA 12
Part Number: AC-12C24
Quick Summary
The Eaton AC-12C24 enclosure provides rugged protection for electrical components in industrial control panels. When space is tight or environments are dusty, oily, or prone to splash, this enclosure helps prevent downtime and component failure. UL 508A, CSA C22.2, and NEMA 12 listings ensure safe, compliant operation across US industrial settings. The carbon steel body, 14 gauge walls, and oil-resistant gasket deliver durable protection, while the surface-mount design and hinged cover streamline installation and maintenance. By pairing robust construction with a practical mounting method, it supports reliable, long-term performance in automation and power distribution applications.
Product Information
Extended Description
AC-12C24 Eaton: Eaton B-Line series consolet enclosures, 12" height, 9.12" length, 24" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-12C24
UPC
782051410068
Product Length/Depth
9.12 in
Product Height
12 in
Product Width
24 in
Product Weight
22.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Carbon steel construction with 14 gauge wall thickness provides a rigid, impact-resistant enclosure that resists deformation in demanding environments, reducing replacement costs and downtime. This translates to higher line reliability in factory automation and process control, where robust housings protect critical components from vibration and incidental contact. The NEMA 12 rating, combined with an oil-resistant gasket, delivers effective protection against dust, splashes, and non-corrosive liquids, safeguarding sensitive electronics and reducing fault rates in manufacturing lines. A hinged cover with continuous hinge simplifies routine maintenance and component access, cutting service time and improving maintenance efficiency on crowded control panels. Surface mounting with external feet enables fast, secure installation on walls or equipment frames, minimizing installation time and enabling flexible layout planning. The ANSI 61 gray painted finish offers visible, corrosion-resilient aesthetics suitable for cleanroom-adjacent environments, while the overall design supports downstream expansion and easy retrofits with existing B-Line accessories. Compatibility with standard enclosures and accessories ensures engineers can source common components without custom solutions, reducing procurement complexity and cost. In practice, this enclosure mitigates common industry objections about weight, ingress protection, and retrofit risk by combining proven materials, accessible mounting, and regulatory compliance into a single, install-ready solution.
Get a Quick Quote for a Eaton AC-12C24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-12C24?
Enquire Now
FAQs
For proper installation, ensure flat mounting surfaces to maximize gasket seal integrity and protect against ingress. Use the external mounting feet to secure the enclosure to the wall or equipment frame, and follow the surface mounting method to minimize space utilization. The hinged cover enables quick access without clearance issues, and verify compatible bushings or cutouts align with your wiring methods to maintain a clean, safe installation.
Its NEMA 12 rating and oil-resistant gasket deliver robust protection against dust, splashes, and non-corrosive liquids, ideal for dirty or oily factory floors. The 14-gauge carbon steel body withstands mechanical stresses common in industrial settings, while the continuous hinge reduces wear on the cover over time. This combination supports reliable operation in automated production lines and process control cabinets.
Yes. The AC-12C24 is designed for surface mounting with external feet and uses a hinged, continuous hinge cover, which accommodates standard accessories such as gaskets, seals, and interior mounting plates. It also aligns with the Eaton B-Line series ecosystem, enabling straightforward retrofits and compatibility with common mounting patterns, door hardware, and mounting rails.
AC-12C24 is listed to UL 508A and CSA C22.2, with a NEMA 12 rating. These certifications demonstrate compliance with electrical safety and performance standards for industrial enclosures, reducing regulatory risk in procurement. The US origin further supports acceptance in North American control panel assemblies, aligning with supplier and contractor expectations for certified enclosure solutions.
The rugged carbon steel body and gasket integrity minimize ingress-related faults, reducing maintenance downtime and component replacement costs. Easy access via hinged covers accelerates inspection and service tasks, lowering labor hours. In high-usage automation lines, this translates to shorter downtime windows, improved uptime, and a favorable total cost of ownership compared to cheaper, less-protected enclosures.
